A Beginner's Guide to LXD: Setting Up a Reverse Proxy to Host Mulitple Websites

Traducciones al Español
Estamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
Create a Linode account to try this guide with a $ credit.
This credit will be applied to any valid services used during your first  days.

Introduction

LXD (pronounced “Lex-Dee”) is a system container manager build on top of Linux Containers (LXC) supported by Canonical . The goal of LXD is to provide an experience similar to a virtual machine but through containerization rather than hardware virtualization. Compared to Docker for delivering applications, LXD offers nearly full operating-system functionality with additional features such as snapshots, live migrations, and storage management.

A reverse proxy is a server that sits between internal applications and external clients, forwarding client requests to the appropriate server. While many common applications, such as Node.js, are able to function as servers on their own, they may lack a number of advanced load balancing, security, and acceleration features.

This guide explains the creation of a reverse proxy in an LXD container in order to host multiple websites, each in their own additional containers. You will utilize NGINX and Apache web servers, while also relying on NGINX as a reverse proxy.

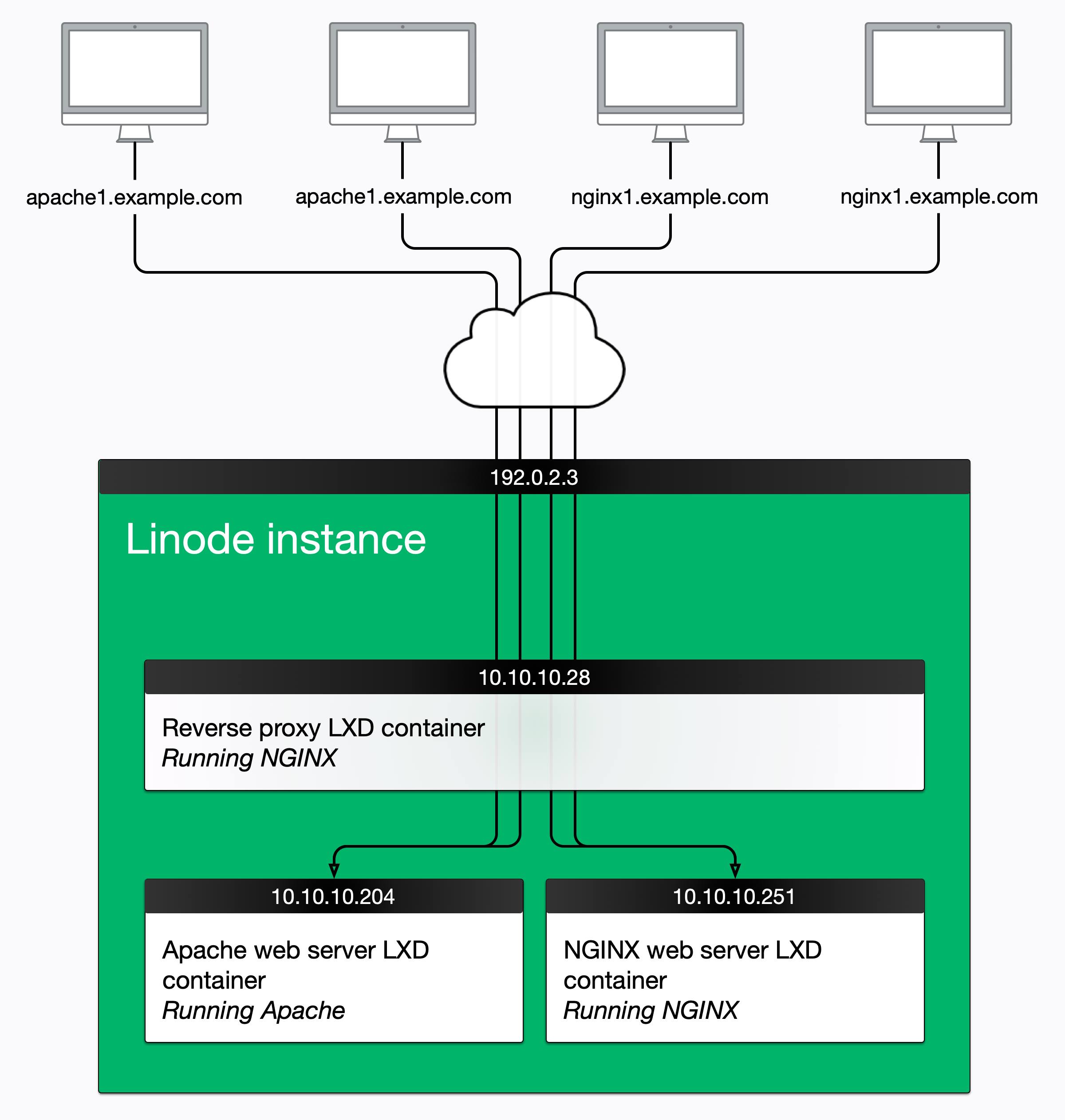

Please refer to the following diagram to understand the reverse proxy created in this guide.

In this guide you will:

Note
For simplicity, the term container is used throughout this guide to describe the LXD system containers.

Before You Begin

  1. Complete A Beginner’s Guide to LXD: Setting Up an Apache Web Server In a Container . The guide instructs you to create a container called web with the Apache web server for testing purposes. Remove this container by running the following commands.

    lxc stop web
    lxc delete web

    Note

    For this guide LXD version 3.3 or later is needed. Check the version with the following command:

    lxd --version


    If the version is not 3.3 or later, update to the latest version by installing the snap package as instructed in A Beginner’s Guide to LXD: Setting Up an Apache Webserver In a Container and use the following command:

    sudo lxd.migrate

  2. This guide uses the hostnames apache1.example.com and nginx1.example.com for the two example websites. Replace these names with hostnames you own and setup their DNS entries to point them to the IP address of the server you created. For help with DNS see our DNS Manager Guide .

Creating the Containers

  1. Create two containers called apache1 and nginx1, one with the Apache web server and another with the NGINX web server, respectively. For any additional websites, you may create new containers with your chosen web server software.

    lxc launch ubuntu:18.04 apache1
    lxc launch ubuntu:18.04 nginx1

  2. Create the proxy container for the reverse proxy.

    lxc launch ubuntu:18.04 proxy

  3. List the containers with the list command.

    lxc list

  4. The output looks similar to the following.

    +---------+---------+---------------------+-----------------------------------------------+------------+-----------+
    |  NAME   |  STATE  |        IPV4         |                     IPV6                      |    TYPE    | SNAPSHOTS |
    +---------+---------+---------------------+-----------------------------------------------+------------+-----------+
    | apache1 | RUNNING | 10.10.10.204 (eth0) | fd42:67a4:b462:6ae2:216:3eff:fe01:1a4e (eth0) | PERSISTENT |           |
    +---------+---------+---------------------+-----------------------------------------------+------------+-----------+
    | nginx1  | RUNNING | 10.10.10.251 (eth0) | fd42:67a4:b462:6ae2:216:3eff:febd:67e3 (eth0) | PERSISTENT |           |
    +---------+---------+---------------------+-----------------------------------------------+------------+-----------+
    | proxy   | RUNNING | 10.10.10.28 (eth0)  | fd42:67a4:b462:6ae2:216:3eff:fe00:252e (eth0) | PERSISTENT |           |
    +---------+---------+---------------------+-----------------------------------------------+------------+-----------+

    There are three containers, all in the RUNNING state – each with their own private IP address. Take note of the IP addresses (both IPv4 and IPv6) for the container proxy. You will need them to configure the proxy container in a later section.

    Now that the containers have been created, the following steps will detail how to set up the web server software in the apache1 and nginx1 containers, and the proxy container so that the web servers are accessible from the internet.

Configuring the Apache Web Server Container

When using a reverse proxy in front of a web server, the web server does not know the IP addresses of visitors. The web server only sees the IP address of the reverse proxy. However, each web server has a way to identify the real remote IP address of a visitor. For Apache, this is performed with the Remote IP Apache module. For the module to work, the reverse proxy must be configured to pass the remote IP address’ information.

  1. Start a shell in the apache1 container.

    lxc exec apache1 -- sudo --user ubuntu --login

  2. Update the package list in the apache1 container.

    sudo apt update

  3. Install the package apache2 in the container.

    sudo apt install -y apache2

  4. Create the file /etc/apache2/conf-available/remoteip.conf.

    File: remoteip.conf
    1
    2

    RemoteIPHeader X-Real-IP
    RemoteIPTrustedProxy 10.10.10.28 fd42:67a4:b462:6ae2:216:3eff:fe00:252e

    You can use the nano text editor by running the command sudo nano /etc/apache2/conf-available/remoteip.conf. Note, these are the IP addresses of the proxy container shown earlier, for both IPv4 and IPv6. Replace these with the IPs from your lxc list output.

    Note
    Instead of specifying the IP addresses, you can also use the hostname proxy.lxd. However, the RemoteIP Apache module is peculiar when using the hostname and uses only one of the two IP addresses (either IPv4 or IPv6), which means the Apache web server does not know the real source IP address for some connections. By listing explicitly both IPv4 and IPv6 addresses, you can be certain that RemoteIP successfully accepts the source IP information from all connections of the reverse proxy.
  5. Enable the new remoteip.conf configuration.

     sudo a2enconf remoteip

    Enabling conf remoteip.
    To activate the new configuration, you need to run:
    systemctl reload apache2
  6. Enable the remoteip Apache module.

     sudo a2enmod remoteip

    Enabling module remoteip.
    To activate the new configuration, you need to run:
    systemctl restart apache2
  7. Edit the default web page for Apache to make a reference that it runs inside a LXD container.

     sudo nano /var/www/html/index.html


    Change the line “It works!” (line number 224) to “It works inside a LXD container!” Save and exit.

  8. Restart the Apache web server.

     sudo systemctl reload apache2

  9. Exit back to the host.

     exit


You have created and configured the Apache web server, but the server is not yet accessible from the Internet. It becomes accessible after you configure the proxy container in a later section.

Creating the NGINX Web Server Container

Like Apache, NGINX does not know the IP addresses of visitors when using a reverse proxy in front of a web server. It only sees the IP address of the reverse proxy instead. Each NGINX web server software can identify the real remote IP address of a visitor with the Real IP module. For the module to work, the reverse proxy must be configured accordingly to pass the information regarding the remote IP addresses.

  1. Start a shell in the nginx1 container.

    lxc exec nginx1 -- sudo --user ubuntu --login

  2. Update the package list in the nginx1 container.

    sudo apt update

  3. Install NGINX in the container.

    sudo apt install -y nginx

  4. Create the file /etc/nginx/conf.d/real-ip.conf.

    File: real-ip.conf
    1
    2

    real_ip_header    X-Real-IP;
    set_real_ip_from  proxy.lxd;

    You can use the nano text editor by running the command sudo nano /etc/nginx/conf.d/real-ip.conf.

    Note
    You have specified the hostname of the reverse proxy, proxy.lxd. Each LXD container gets automatically a hostname, which is the name of the container plus the suffix .lxd. By specifying the set_real_ip_from field with proxy.lxd, you are instructing the NGINX web server to accept the real IP address information for each connection, as long as that connection originates from proxy.lxd. The real IP address information is found in the HTTP header X-Real-IP in each connection.
  5. Edit the default web page for NGINX to make a reference that it runs inside a LXD container.

     sudo nano /var/www/html/index.nginx-debian.html


    Change the line “Welcome to nginx!” (line number 14) to “Welcome to nginx running in a LXD system container!”. Save and exit.

  6. Restart the NGINX web server.

     sudo systemctl reload nginx

  7. Exit back to the host.

     exit


You have created and configured the NGINX web server, but the server is not accessible yet from the Internet. It becomes accessible after you configure the proxy container in the next section.

Setting up the Reverse Proxy

In this section you will configure the container proxy. You will install NGINX and set it up as a reverse proxy, then add the appropriate LXD proxy device in order to expose both ports 80 and 443 to the internet.

  1. Add LXD proxy devices to redirect connections from the internet to ports 80 (HTTP) and 443 (HTTPS) on the server to the respective ports at the proxy container.

     lxc config device add proxy myport80 proxy listen=tcp:0.0.0.0:80 connect=tcp:127.0.0.1:80 proxy_protocol=true
     lxc config device add proxy myport443 proxy listen=tcp:0.0.0.0:443 connect=tcp:127.0.0.1:443 proxy_protocol=true

    Device myport80 added to proxy
    Device myport443 added to proxy

    The lxc config device add command takes as arguments:

    ArgumentExplanation
    proxyThe name of the container.
    myport80A name for this proxy device.
    proxyThe type of the LXD device (LXD proxy device).
    listen=tcp:0.0.0.0:80The proxy device listens on the host (default) on port 80, protocol TCP, on all interfaces.
    connect=tcp:127.0.0.1:80The proxy device connects to the container on port 80, protocol TCP, on the loopback interface. In previous versions of LXD you could have specified localhost here. However, in LXD 3.13 or newer, you can only specify IP addresses.
    proxy_protocol=trueRequest to enable the PROXY protocol so that the reverse proxy gets the originating IP address from the proxy device.
    Note

    If you want to remove a proxy device, use lxc config device remove. If you want to remove the above device myport80, run the following command:

    lxc config device remove proxy myport80


    Where proxy is the name of the container, and myport80 is the name of the device.

  2. Start a shell in the proxy container.

    lxc exec proxy -- sudo --user ubuntu --login

  3. Update the package list.

    sudo apt update

  4. Install NGINX in the container.

    sudo apt install -y nginx

  5. Logout from the container.

    logout


Direct Traffic to the Apache Web Server From the Reverse Proxy

The reverse proxy container is running and the NGINX package has been installed. To work as a reverse proxy, add the appropriate website configuration so that NGINX can identify (with server_name below) the appropriate hostname, and then pass (with proxy_pass below) the connection to the appropriate LXD container.

  1. Start a shell in the proxy container.

    lxc exec proxy -- sudo --user ubuntu --login

  2. Create the file apache1.example.com in /etc/nginx/sites-available/ for the configuration of your first website.

    File: apache1.example.com
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15

    server {
            listen 80 proxy_protocol;
            listen [::]:80 proxy_protocol;

            server_name apache1.example.com;

            location / {
                    include /etc/nginx/proxy_params;

                    proxy_pass http://apache1.lxd;
            }

            real_ip_header proxy_protocol;
            set_real_ip_from 127.0.0.1;
    }

    You can run sudo nano /etc/nginx/sites-available/apache1.example.com to open up a text editor and add the configuration. Note, in this case you only need to edit the server_name to be the hostname of the website.

  3. Enable the website.

    sudo ln -s /etc/nginx/sites-available/apache1.example.com /etc/nginx/sites-enabled/

  4. Restart the NGINX reverse proxy. By restarting the service, NGINX reads and applies the new site instructions just added to /etc/nginx/sites-enabled.

    sudo systemctl reload nginx

  5. Exit the proxy container and return back to the host.

    logout

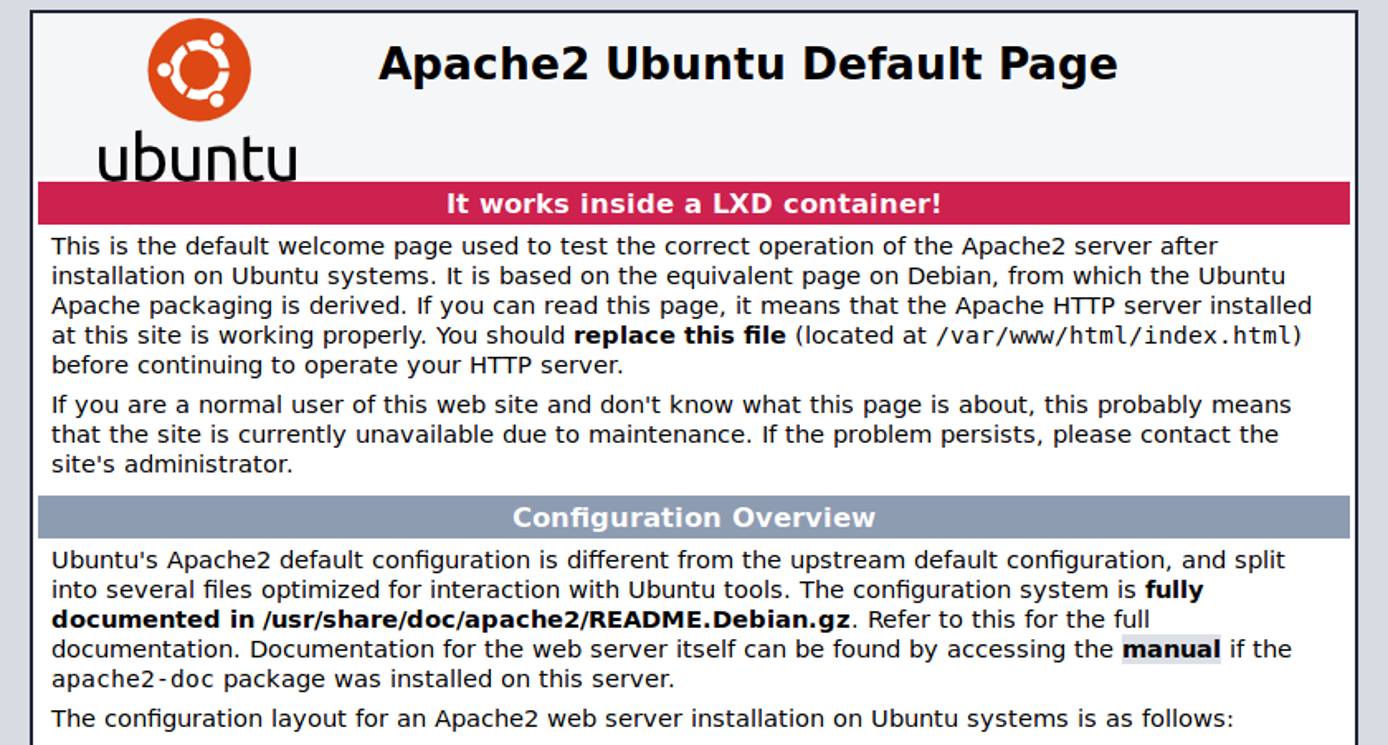

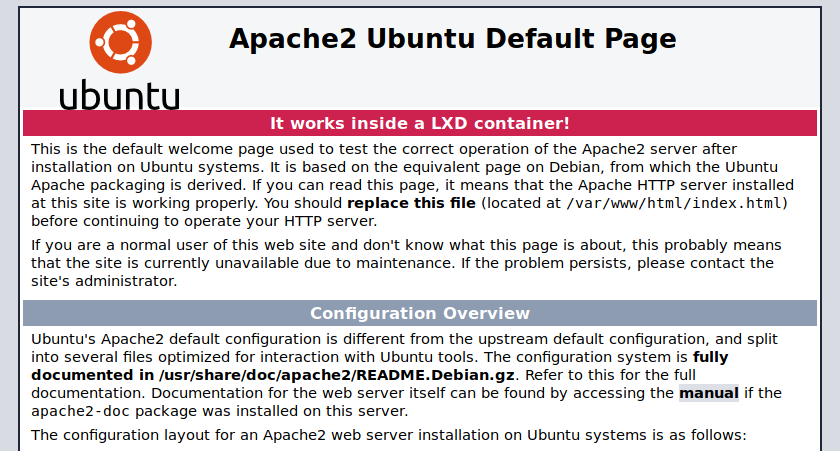

  6. From your local computer, visit the URL of your website with your web browser. You should see the default Apache page:

    Note
    If you look at the Apache access.log file (default file /var/log/apache2/access.log), it still shows the private IP address of the proxy container instead of the real IP address. This issue is specific to the Apache web server and has to do with how the server prints the logs. Other software on the web server is able to use the real IP. To fix this through the Apache logs, see the section Troubleshooting .

Direct Traffic to the NGINX Web Server From the Reverse Proxy

The reverse proxy container is running and the NGINX package has been installed. To work as a reverse proxy, you need to add the appropriate website configuration so NGINX can identify (with server_name below) the appropriate hostname, and then pass (with proxy_pass below) the connection to the appropriate LXD container with the actual web server software.

  1. Start a shell in the proxy container.

    lxc exec proxy -- sudo --user ubuntu --login

  2. Create the file nginx1.example.com in /etc/nginx/sites-available/ for the configuration of your second website.

    File: nginx1.example.com
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15

    server {
            listen 80 proxy_protocol;
            listen [::]:80 proxy_protocol;

            server_name nginx1.example.com;

            location / {
                    include /etc/nginx/proxy_params;

                    proxy_pass http://nginx1.lxd;
            }

            real_ip_header proxy_protocol;
            set_real_ip_from 127.0.0.1;
    }

    You can run sudo nano /etc/nginx/sites-available/nginx1.example.com to create the configuration. Note, you only need to edit the fields server_name to be the hostname of the website.

  3. Enable the website.

    sudo ln -s /etc/nginx/sites-available/nginx1.example.com /etc/nginx/sites-enabled/

  4. Restart the NGINX reverse proxy service.

    sudo systemctl reload nginx

  5. Exit the proxy container and return back to the host.

    logout

  6. From your local computer, visit the URL of your website with your web browser. You should see the following default NGINX page.

Adding Support for HTTPS with Let’s Encrypt

  1. Start a shell in the proxy container.

    lxc exec proxy -- sudo --user ubuntu --login

  2. Add the repository ppa:certbot/certbot by running the following command.

    sudo add-apt-repository ppa:certbot/certbot

  3. The output looks similar to the following.

          This is the PPA for packages prepared by Debian Let's Encrypt Team and backported for Ubuntu(s).
          More info: https://launchpad.net/~certbot/+archive/ubuntu/certbot
         Press [ENTER] to continue or Ctrl-c to cancel adding it.

         Get:1 http://security.ubuntu.com/ubuntu bionic-security InRelease [88.7 kB]
         ...
         Fetched 3360 kB in 2s (2018 kB/s)
         Reading package lists... Done

  4. Install the following two packages to a) support the creation of Let’s Encrypt certificates; and b) auto-configure the NGINX reverse proxy to use Let’s Encrypt certificates. The packages are pulled from the newly-created repository.

    sudo apt-get install certbot python-certbot-nginx

    Note
    This configures the reverse proxy to also act as a TLS Termination Proxy. Any HTTPS configuration is only found in the proxy container. By doing so, it is not necessary to perform any tasks inside the web server containers relating to certificates and Let’s Encrypt.
  5. Run certbot as root with the --nginx parameter in order to perform the auto-configuration of Let’s Encrypt for the first website. You are asked to supply a valid email address for urgent renewal and security notices. You are then asked to accept the Terms of Service and whether you would like to be contacted by the Electronic Frontier Foundation in the future. Next, provide the website for which you are activating HTTPS. Finally, you can choose to set up a facility that automatically redirects HTTP connections to HTTPS connections.

    sudo certbot --nginx

    Saving debug log to /var/log/letsencrypt/letsencrypt.log
    Plugins selected: Authenticator nginx, Installer nginx
    Enter email address (used for urgent renewal and security notices) (Enter 'c' to
    cancel): myemail@example.com

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Please read the Terms of Service at
    https://letsencrypt.org/documents/LE-SA-v1.2-November-15-2017.pdf. You must
    agree in order to register with the ACME server at
    https://acme-v02.api.letsencrypt.org/directory
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    (A)gree/(C)ancel: A

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Would you be willing to share your email address with the Electronic Frontier
    Foundation, a founding partner of the Let's Encrypt project and the non-profit
    organization that develops Certbot? We'd like to send you email about our work
    encrypting the web, EFF news, campaigns, and ways to support digital freedom.
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    (Y)es/(N)o: N

    Which names would you like to activate HTTPS for?
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    1: apache1.example.com
    2: nginx1.example.com
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Select the appropriate numbers separated by commas and/or spaces, or leave input
    blank to select all options shown (Enter 'c' to cancel): 1
    Obtaining a new certificate
    Performing the following challenges:
    http-01 challenge for apache1.example.com
    Waiting for verification...
    Cleaning up challenges
    Deploying Certificate to VirtualHost /etc/nginx/sites-enabled/apache1.example.com

    Please choose whether or not to redirect HTTP traffic to HTTPS, removing HTTP access.
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    1: No redirect - Make no further changes to the webserver configuration.
    2: Redirect - Make all requests redirect to secure HTTPS access. Choose this for
    new sites, or if you're confident your site works on HTTPS. You can undo this
    change by editing your web server's configuration.
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Select the appropriate number [1-2] then [enter] (press 'c' to cancel): 2
    Redirecting all traffic on port 80 to ssl in /etc/nginx/sites-enabled/apache1.example.com

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Congratulations! You have successfully enabled https://apache1.example.com

    You should test your configuration at:
    https://www.ssllabs.com/ssltest/analyze.html?d=apache1.example.com
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

    IMPORTANT NOTES:
     - Congratulations! Your certificate and chain have been saved at:
       /etc/letsencrypt/live/apache1.example.com/fullchain.pem
       Your key file has been saved at:
       /etc/letsencrypt/live/apache1.example.com/privkey.pem
       Your cert will expire on 2019-10-07. To obtain a new or tweaked
       version of this certificate in the future, simply run certbot again
       with the "certonly" option. To non-interactively renew *all* of
       your certificates, run "certbot renew"
     - Your account credentials have been saved in your Certbot
       configuration directory at /etc/letsencrypt. You should make a
       secure backup of this folder now. This configuration directory will
       also contain certificates and private keys obtained by Certbot so
       making regular backups of this folder is ideal.
     - If you like Certbot, please consider supporting our work by:

       Donating to ISRG / Let's Encrypt:   https://letsencrypt.org/donate
       Donating to EFF:                    https://eff.org/donate-le
  6. Run certbot as root with the --nginx parameter in order to perform the auto-configuration of Let’s Encrypt for the second website. This is the second time we run certbot, therefore we are asked directly to select the website to configure.

    sudo certbot --nginx

    Saving debug log to /var/log/letsencrypt/letsencrypt.log
    Plugins selected: Authenticator nginx, Installer nginx

    Which names would you like to activate HTTPS for?
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    1: apache1.example.com
    2: nginx1.example.com
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Select the appropriate numbers separated by commas and/or spaces, or leave input
    blank to select all options shown (Enter 'c' to cancel): 2
    Obtaining a new certificate
    Performing the following challenges:
    http-01 challenge for nginx1.example.com
    Waiting for verification...
    Cleaning up challenges
    Deploying Certificate to VirtualHost /etc/nginx/sites-enabled/nginx1.example.com

    Please choose whether or not to redirect HTTP traffic to HTTPS, removing HTTP access.
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    1: No redirect - Make no further changes to the webserver configuration.
    2: Redirect - Make all requests redirect to secure HTTPS access. Choose this for
    new sites, or if you're confident your site works on HTTPS. You can undo this
    change by editing your web server's configuration.
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Select the appropriate number [1-2] then [enter] (press 'c' to cancel): 2
    Redirecting all traffic on port 80 to ssl in /etc/nginx/sites-enabled/nginx1.example.com

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Congratulations! You have successfully enabled https://nginx1.example.com

    You should test your configuration at:
    https://www.ssllabs.com/ssltest/analyze.html?d=nginx1.example.com
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

    IMPORTANT NOTES:
     - Congratulations! Your certificate and chain have been saved at:
       /etc/letsencrypt/live/nginx1.example.com/fullchain.pem
       Your key file has been saved at:
       /etc/letsencrypt/live/nginx1.example.com/privkey.pem
       Your cert will expire on 2019-10-07. To obtain a new or tweaked
       version of this certificate in the future, simply run certbot again
       with the "certonly" option. To non-interactively renew *all* of
       your certificates, run "certbot renew"
     - If you like Certbot, please consider supporting our work by:

       Donating to ISRG / Let's Encrypt:   https://letsencrypt.org/donate
       Donating to EFF:                    https://eff.org/donate-le
  7. After adding all websites, perform a dry run in order to test the renewal of the certificates. Check that all websites are updating successfully to ensure the automated facility updated the certificates without further effort.

    sudo certbot renew --dry-run

    Saving debug log to /var/log/letsencrypt/letsencrypt.log

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Processing /etc/letsencrypt/renewal/apache1.example.com.conf
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Cert not due for renewal, but simulating renewal for dry run
    Plugins selected: Authenticator nginx, Installer nginx
    Renewing an existing certificate
    Performing the following challenges:
    http-01 challenge for apache1.example.com
    Waiting for verification...
    Cleaning up challenges

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    new certificate deployed with reload of nginx server; fullchain is
    /etc/letsencrypt/live/apache1.example.com/fullchain.pem
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Processing /etc/letsencrypt/renewal/nginx1.example.com.conf
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Cert not due for renewal, but simulating renewal for dry run
    Plugins selected: Authenticator nginx, Installer nginx
    Renewing an existing certificate
    Performing the following challenges:
    http-01 challenge for nginx1.example.com
    Waiting for verification...
    Cleaning up challenges

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    new certificate deployed with reload of nginx server; fullchain is
    /etc/letsencrypt/live/nginx1.example.com/fullchain.pem
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    ** DRY RUN: simulating 'certbot renew' close to cert expiry
    **          (The test certificates below have not been saved.)

    Congratulations, all renewals succeeded. The following certs have been renewed:
      /etc/letsencrypt/live/apache1.example.com/fullchain.pem (success)
      /etc/letsencrypt/live/nginx1.example.com/fullchain.pem (success)
    ** DRY RUN: simulating 'certbot renew' close to cert expiry
    **          (The test certificates above have not been saved.)
    - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

    IMPORTANT NOTES:
     - Your account credentials have been saved in your Certbot
       configuration directory at /etc/letsencrypt. You should make a
       secure backup of this folder now. This configuration directory will
       also contain certificates and private keys obtained by Certbot so
       making regular backups of this folder is ideal.
    Note
    The certbot package adds a systemd timer in order to activate the automated renewal of Let’s Encrypt certificates. You can view the details of this timer by running systemctl list-timers.
  8. The certbot tool edits and changes the NGINX configuration files of your websites. In doing so, certbot does not obey initial listen directive (listen 80 proxy_protocol;) and does not add the proxy_protocol parameter to the newly added listen 443 ssl; lines. You must edit the configuration files for each website and append proxy_protocol to each “listen 443 ssl;” line.

     sudo nano /etc/nginx/sites-enabled/apache1.example.com
     sudo nano /etc/nginx/sites-enabled/nginx1.example.com

    listen 443 ssl proxy_protocol; # managed by Certbot
    listen [::]:443 ssl proxy_protocol; # managed by Certbot
    Note
    Each website configuration file has two pairs of listen directives: HTTP and HTTPS, respectively. The first is the original pair for HTTP that was added in a previous section. The second pair was added by certbot for HTTPS. These are pairs because they cover both IPv4 and IPv6. The notation [::] refers to IPv6. When adding the parameter proxy_protocol, add it before the ; on each line as shown above.
  9. Restart NGINX.

    sudo systemctl restart nginx


Troubleshooting

Browser Error “SSL_ERROR_RX_RECORD_TOO_LONG”

You have configured Certbot and created the appropriate Let’s Encrypt configuration for each website. But when you access the website from your browser, you get the following error.

Secure Connection Failed

An error occurred during a connection to apache1.example.com. SSL received a record that exceeded the maximum permissible length. Error code: SSL_ERROR_RX_RECORD_TOO_LONG

    The page you are trying to view cannot be shown because the authenticity of the received data could not be verified.
    Please contact the website owners to inform them of this problem.

This error is caused when the NGINX reverse proxy in the proxy container does not have the proxy_protocol parameter in the listen 443 directives. Without the parameter, the reverse proxy does not consume the PROXY protocol information before it performs the HTTPS work. It mistakenly passes the PROXY protocol information to the HTTPS module, hence the record too long error.

Follow the instructions in the previous section and add proxy_protocol to all listen 443 directives. Finally, restart NGINX.

Error “Unable to connect” or “This site can’t be reached”

When you attempt to connect to the website from your local computer and receive Unable to connect or This site can’t be reached errors, it is likely the proxy devices have not been configured.

Run the following command on the host to verify whether LXD is listening and is able to accept connections to ports 80 (HTTP) and 443 (HTTPS).

sudo ss -ltp '( sport = :http || sport = :https )'
Note

The ss command is similar to netstat and lsof. It shows information about network connections. In this case, we use it to verify whether there is a service on ports 80 and 443, and which service it is.

  • -l, to display the listening sockets,
  • -t, to display only TCP sockets,
  • -p, to show which processes use those sockets,
  • ( sport = :http || sport = :https ), to show only ports 80 and 443 (HTTP and HTTPS, respectively).

In the following output we can verify that both ports 80 and 443 (HTTP and HTTPS, respectively) are in the LISTEN state. In the last column we verify that the process listening is lxd itself.

State     Recv-Q  Send-Q   Local Address:Port   Peer Address:Port
LISTEN    0       128                  *:http              *:*       users:(("lxd",pid=1301,fd=7),("lxd",pid=1301,fd=5))
LISTEN    0       128                  *:https             *:*       users:(("lxd",pid=1349,fd=7),("lxd",pid=1349,fd=5))

If you see a process listed other than lxd, stop that service and restart the proxy container. By restarting the proxy container, LXD applies the proxy devices again.

The Apache access.log Shows the IP Address of the Proxy Container

You have set up the apache1 container and verified that it is accessible from the internet. But the logs at /var/log/apache2/access.log still show the private IP address of the proxy container, either the private IPv4 (10.x.x.x) or the private IPv6 addresses. What went wrong?

The default log formats for printing access logs in Apache only print the IP address of the host of the last hop (i.e. the proxy server). This is the %h format specifier as shown below.

LogFormat "%v:%p %h %l %u %t \"%r\" %>s %O \"%{Referer}i\" \"%{User-Agent}i\"" vhost_combined
LogFormat "%h %l %u %t \"%r\" %>s %O \"%{Referer}i\" \"%{User-Agent}i\"" combined
LogFormat "%h %l %u %t \"%r\" %>s %O" common

The %h must be manually replaced with the %a format specifier, which prints the value as returned by the real RemoteIP Apache module.

LogFormat "%v:%p %a %l %u %t \"%r\" %>s %O \"%{Referer}i\" \"%{User-Agent}i\"" vhost_combined
LogFormat "%a %l %u %t \"%r\" %>s %O \"%{Referer}i\" \"%{User-Agent}i\"" combined
LogFormat "%a %l %u %t \"%r\" %>s %O" common
  1. Run the following command in the apache1 container to edit the configuration file httpd.conf and perform the change from %h to %a.

    sudo nano /etc/apache2/apache2.conf

  2. Reload the Apache web server service.

     sudo systemctl reload apache2


Next Steps

You have set up a reverse proxy to host many websites on the same server and installed each website in a separate container. You can install static or dynamic websites in the containers. For dynamic websites, you may need additional configuration; check the respective documentation for setup using a reverse proxy. In addition, you may also use NGINX as a reverse proxy for non-HTTP(S) services.

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

This page was originally published on


Your Feedback Is Important

Let us know if this guide was helpful to you.


Join the conversation.
Read other comments or post your own below. Comments must be respectful, constructive, and relevant to the topic of the guide. Do not post external links or advertisements. Before posting, consider if your comment would be better addressed by contacting our Support team or asking on our Community Site.
The Disqus commenting system for Linode Docs requires the acceptance of Functional Cookies, which allow us to analyze site usage so we can measure and improve performance. To view and create comments for this article, please update your Cookie Preferences on this website and refresh this web page. Please note: You must have JavaScript enabled in your browser.
