A Beginner's Guide to LXD: Setting Up an Apache Web Server

Traducciones al Español
Estamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
Create a Linode account to try this guide with a $ credit.
This credit will be applied to any valid services used during your first  days.

What is LXD?

LXD (pronounced “Lex-Dee”) is a system container manager build on top of LXC (Linux Containers) that is currently supported by Canonical. The goal of LXD is to provide an experience similar to a virtual machine but through containerization rather than hardware virtualization. Compared to Docker for delivering applications, LXD offers nearly full operating-system functionality with additional features such as snapshots, live migrations, and storage management.

The main benefits of LXD are the support of high density containers and the performance it delivers compared to virtual machines. A computer with 2GB RAM can adequately support half a dozen containers. In addition, LXD officially supports the container images of major Linux distributions. We can choose the Linux distribution and version to run in the container.

This guide covers how to install and setup LXD 3 on a Linode and how to setup an Apache Web server in a container.

For simplicity, the term container is used throughout this guide to describe the LXD system containers.

Before You Begin

  1. Complete the Creating a Compute Instance guide. Select a Linode with at least 2GB of RAM memory, such as the Linode 2GB. Specify the Ubuntu 19.04 distribution. You may specify a different Linux distribution, as long as there is support for snap packages (snapd); see the More Information for more details.

  2. Follow our Setting Up and Securing a Compute Instance guide to update your system. You may also wish to set the timezone, configure your hostname, create a limited user account, and harden SSH access.

Configure the Snap Package Support

LXD is available as a Debian package in the long-term support (LTS) versions of Ubuntu, such as Ubuntu 18.04 LTS. For other versions of Ubuntu and other distributions, LXD is available as a snap package. Snap packages are universal packages because there is a single package file that works on any supported Linux distributions. See the More Information section for more details on what a snap package is, what Linux distributions are supported, and how to set it up.

  1. Verify that snap support is installed correctly. The following command either shows that there are no snap packages installed, or that some are.

    snap list
    No snaps are installed yet. Try 'snap install hello-world'.
  2. View the details of the LXD snap package lxd. The output below shows that, currently, the latest version of LXD is 3.12 in the default stable channel. This channel is updated often with new features. There are also other channels such as the 3.0/stable channel which has the LTS LXD version (supported along with Ubuntu 18.04, until 2023) and the 2.0/stable channel (supported along with Ubuntu 16.04, until 2021). We will be using the latest version of LXD from the default stable channel.

    snap info lxd
    name:      lxd
    summary:   System container manager and API
    publisher: Canonical✓
    contact:   https://github.com/lxc/lxd/issues
    license:   Apache-2.0
    description: |
      **LXD is a system container manager**
      With LXD you can run hundreds of containers of a variety of Linux
      distributions, apply resource limits, pass in directories, USB devices
      or GPUs and setup any network and storage you want.
      LXD containers are lightweight, secure by default and a great
      alternative to running Linux virtual machines.
      **Run any Linux distribution you want**
      Pre-made images are available for Ubuntu, Alpine Linux, ArchLinux,
      CentOS, Debian, Fedora, Gentoo, openSUSE and more.
      A full list of available images can be [found
      Can't find the distribution you want? It's easy to make your own images
      too, either using our `distrobuilder` tool or by assembling your own image
      tarball by hand.
      **Containers at scale**
      LXD is network aware and all interactions go through a simple REST API,
      making it possible to remotely interact with containers on remote
      systems, copying and moving them as you wish.
      Want to go big? LXD also has built-in clustering support,
      letting you turn dozens of servers into one big LXD server.
      **Configuration options**
      Supported options for the LXD snap (`snap set lxd KEY=VALUE`):
       - criu.enable: Enable experimental live-migration support [default=false]
       - daemon.debug: Increases logging to debug level [default=false]
       - daemon.group: Group of users that can interact with LXD [default=lxd]
       - ceph.builtin: Use snap-specific ceph configuration [default=false]
       - openvswitch.builtin: Run a snap-specific OVS daemon [default=false]
    snap-id: J60k4JY0HppjwOjW8dZdYc8obXKxujRu
      stable:        3.12        2019-04-16 (10601) 56MB -
      candidate:     3.12        2019-04-26 (10655) 56MB -
      beta:          ↑
      edge:          git-570aaa1 2019-04-27 (10674) 56MB -
      3.0/stable:    3.0.3       2018-11-26  (9663) 53MB -
      3.0/candidate: 3.0.3       2019-01-19  (9942) 53MB -
      3.0/beta:      ↑
      3.0/edge:      git-eaa62ce 2019-02-19 (10212) 53MB -
      2.0/stable:    2.0.11      2018-07-30  (8023) 28MB -
      2.0/candidate: 2.0.11      2018-07-27  (8023) 28MB -
      2.0/beta:      ↑
      2.0/edge:      git-c7c4cc8 2018-10-19  (9257) 26MB -
  3. Install the lxd snap package. Run the following command to install the snap package for LXD.

    sudo snap install lxd
    lxd 3.12 from Canonical✓ installed

You can verify that the snap package has been installed by running snap list again. The core snap package is a prerequisite for any system with snap package support. When you install your first snap package, core is installed and shared among all other snap packages that will get installed in the future.

    snap list


Name  Version  Rev    Tracking  Publisher   Notes
core  16-2.38  6673   stable    canonical✓  core
lxd   3.12     10601  stable    canonical✓  -

Initialize LXD

  1. Add your non-root Unix user to the lxd group:

    sudo usermod -a -G lxd username
    By adding the non-root Unix user account to the lxd group, you are able to run any lxc commands without prepending sudo. Without this addition, you would have needed to prepend sudo to each lxc command.
  2. Start a new SSH session for the previous change to take effect. For example, log out and log in again.

  3. Verify the available free disk space:

    df -h /

    Filesystem      Size  Used Avail Use% Mounted on
    /dev/sda         49G  2.0G   45G   5% /
    In this case there is 45GB of free disk space. LXD requires at least 15GB of space for the storage needs of containers. We will allocate 15GB of space for LXD, leaving 30GB of free space for the needs of the server.

  4. Run lxd init to initialize LXD:

    sudo lxd init

    You will be prompted several times during the initialization process. Choose the defaults for all options.

    Would you like to use LXD clustering? (yes/no) [default=no]:
    Do you want to configure a new storage pool? (yes/no) [default=yes]:
    Name of the new storage pool [default=default]:
    Name of the storage backend to use (btrfs, ceph, dir, lvm, zfs) [default=zfs]:
    Create a new ZFS pool? (yes/no) [default=yes]:
    Would you like to use an existing block device? (yes/no) [default=no]:
    Size in GB of the new loop device (1GB minimum) [default=15GB]:
    Would you like to connect to a MAAS server? (yes/no) [default=no]:
    Would you like to create a new local network bridge? (yes/no) [default=yes]:
    What should the new bridge be called? [default=lxdbr0]:
    What IPv4 address should be used? (CIDR subnet notation, “auto” or “none”) [default=auto]:
    What IPv6 address should be used? (CIDR subnet notation, “auto” or “none”) [default=auto]:
    Would you like LXD to be available over the network? (yes/no) [default=no]:
    Would you like stale cached images to be updated automatically? (yes/no) [default=yes]
    Would you like a YAML "lxd init" preseed to be printed? (yes/no) [default=no]:

Apache Web Server with LXD

This section will create a container, install the Apache web server, and add the appropriate iptables rules in order to expose post 80.

  1. Launch a new container:

    lxc launch ubuntu:18.04 web
  2. Update the package list in the container.

    lxc exec web -- apt update
  3. Install the Apache in the LXD container.

    lxc exec web -- apt install apache2
  4. Get a shell in the LXD container.

    lxc exec web -- sudo --user ubuntu --login
  5. Edit the default web page for Apache to make a reference that it runs inside a LXD container.

    sudo nano /var/www/html/index.html

    Change the line It works! (line number 224) to It works inside a LXD container!. Then, save and exit.

  6. Exit back to the host. We have made all the necessary changes to the container.

  7. Add a LXD proxy device to redirect connections from the internet to port 80 (HTTP) on the server to port 80 at this container.

    sudo lxc config device add web myport80 proxy listen=tcp: connect=tcp:
In recent versions of LXD, you need to specify an IP address (such as instead of a hostname (such as localhost). If your container already has a proxy device that uses hostnames, you can edit the container configuration to replace with IP addresses by running lxc config edit web.

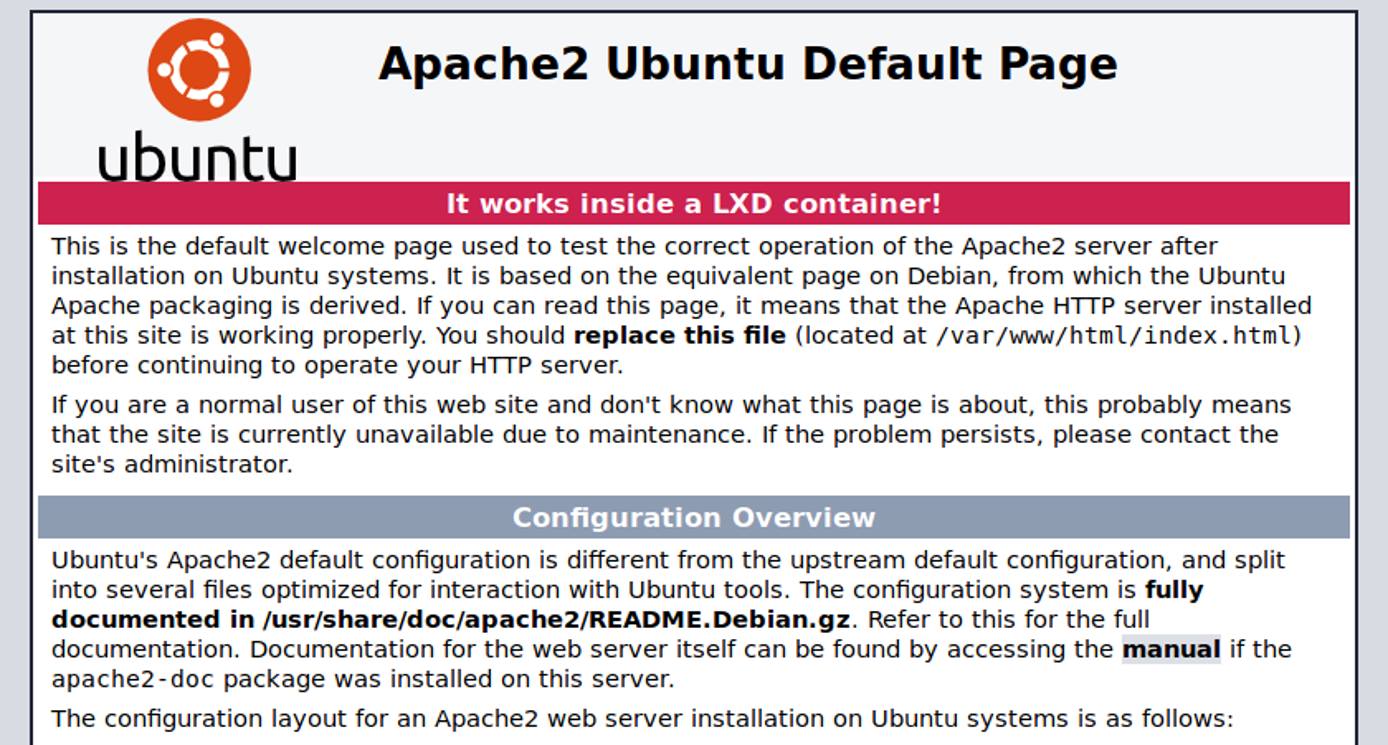

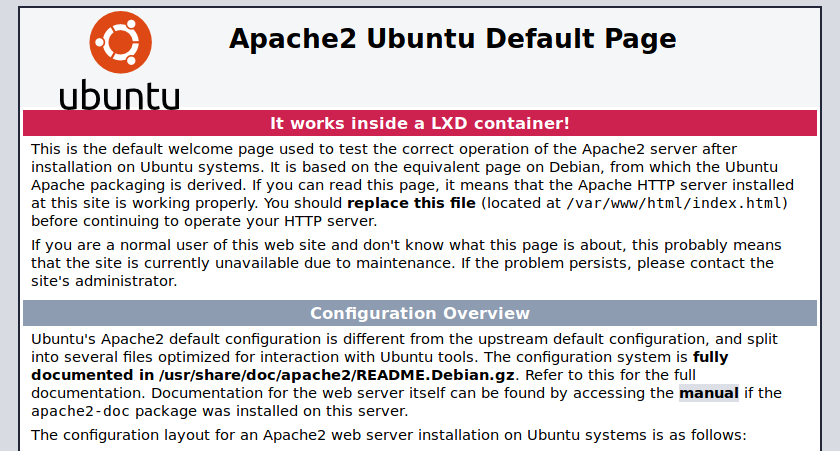

  1. From your local computer, navigate to your Linode’s public IP address in a web browser. You should see the default Apache page:

Common LXD Commands

  • List all containers:

     lxc list
    To start your first container, try: lxc launch ubuntu:18.04
  • List all available repositories of container images:

      lxc remote list

    |      NAME       |                   URL                    |   PROTOCOL    |  AUTH TYPE  | PUBLIC | STATIC |
    | images          | https://images.linuxcontainers.org       | simplestreams | none        | YES    | NO     |
    | local (default) | unix://                                  | lxd           | file access | NO     | YES    |
    | ubuntu          | https://cloud-images.ubuntu.com/releases | simplestreams | none        | YES    | YES    |
    | ubuntu-daily    | https://cloud-images.ubuntu.com/daily    | simplestreams | none        | YES    | YES    |
    The repository ubuntu has container images of Ubuntu versions. The images repository has container images of a large number of different Linux distributions. The ubuntu-daily has daily container images to be used for testing purposes. The local repository is the LXD server that we have just installed. It is not public and can be used to store your own container images.

  • List all available container images from a repository:

     lxc image list ubuntu:
    |      ALIAS       | FINGERPRINT  | PUBLIC |                  DESCRIPTION                  |  ARCH   |   SIZE   |          UPLOAD DATE          |
    | b (11 more)      | 5b72cf46f628 | yes    | ubuntu 18.04 LTS amd64 (release) (20190424)   | x86_64  | 180.37MB | Apr 24, 2019 at 12:00am (UTC) |
    | c (5 more)       | 4716703f04fc | yes    | ubuntu 18.10 amd64 (release) (20190402)       | x86_64  | 313.29MB | Apr 2, 2019 at 12:00am (UTC)  |
    | d (5 more)       | faef94acf5f9 | yes    | ubuntu 19.04 amd64 (release) (20190417)       | x86_64  | 322.56MB | Apr 17, 2019 at 12:00am (UTC) |

    The first two columns for the alias and fingerprint provide an identifier that can be used to specify the container image when launching it.
    The output snippet shows the container images Ubuntu versions 18.04 LTS, 18.10, and 19.04. When creating a container we can just specify the short alias. For example, ubuntu:b means that the repository is ubuntu and the container image has the short alias b (for bionic, the codename of Ubuntu 18.04 LTS).

  • Get more information about a container image:

     lxc image info ubuntu:b

    Fingerprint: 5b72cf46f628b3d60f5d99af48633539b2916993c80fc5a2323d7d841f66afbe
    Size: 180.37MB
    Architecture: x86_64
    Public: yes
        Created: 2019/04/24 00:00 UTC
        Uploaded: 2019/04/24 00:00 UTC
        Expires: 2023/04/26 00:00 UTC
        Last used: never
        release: bionic
        version: 18.04
        architecture: amd64
        label: release
        serial: 20190424
        description: ubuntu 18.04 LTS amd64 (release) (20190424)
        os: ubuntu
        - 18.04
        - 18.04/amd64
        - b
        - b/amd64
        - bionic
        - bionic/amd64
        - default
        - default/amd64
        - lts
        - lts/amd64
        - ubuntu
        - amd64
    Cached: no
    Auto update: disabled
    The output shows the details of the container image including all the available aliases. For Ubuntu 18.04 LTS, we can specify either b (for bionic, the codename of Ubuntu 18.04 LTS) or any other alias.

  • Launch a new container with the name mycontainer:

     lxc launch ubuntu:18.04 mycontainer
    Creating mycontainer
    Starting mycontainer
  • Check the list of containers to make sure the new container is running:

     lxc list
    |    NAME     |  STATE  |         IPV4          |          IPV6             |    TYPE    | SNAPSHOTS |
    | mycontainer | RUNNING | (eth0) | fde5:5d27:...:1371 (eth0) | PERSISTENT | 0         |
  • Execute basic commands in mycontainer:

     lxc exec mycontainer -- apt update
     lxc exec mycontainer -- apt upgrade
    The characters -- instruct the lxc command not to parse any more command-line parameters.
  • Open a shell session within mycontainer:

     lxc exec mycontainer -- sudo --login --user ubuntu
    To run a command as administrator (user "root"), use "sudo <command>".
    See "man sudo_root" for details.

    The Ubuntu container images have by default a non-root account with username ubuntu. This account can use sudo and does not require a password to perform administrative tasks.

    The sudo command provides a login to the existing account ubuntu.

  • View the container logs:

     lxc info mycontainer --show-log
  • Stop the container:

     lxc stop mycontainer
  • Remove the container:

     lxc delete mycontainer
    A container needs to be stopped before it can be deleted.


Error “unix.socket: connect: connection refused”

When you run any lxc command, you get the following error:

    lxc list


Error: Get http://unix.socket/1.0: dial unix /var/snap/lxd/common/lxd/unix.socket: connect: connection refused

This happens when the LXD service is not currently running. By default, the LXD service is running as soon as it is configured successfully. See Initialize LXD to configure LXD.

Error “unix.socket: connect: permission denied”

When you run any lxc command, you get the following error:

    lxc list


Error: Get http://unix.socket/1.0: dial unix /var/snap/lxd/common/lxd/unix.socket: connect: permission denied

This happens when your limited user account is not a member of the lxd group, or you did not log out and log in again so that the new group membership to the lxd group gets updated.

If your user account is ubuntu, the following command shows whether you are a member of the lxd group:

    groups ubuntu


ubuntu : ubuntu sudo lxd

In this example, we are members of the lxd group and we just need to log out and log in again. If you are not a member of the lxd group, see Initialize LXD on how to make your limited account a member of the lxd group.

Next Steps

If you plan to use a single website, then a single proxy device to the website container will suffice. If you plan to use multiple websites, you may install virtual hosts inside the website container. If instead you would like to setup multiple websites on their own container, then you will need to set up a reverse proxy in a container. In that case, the proxy device would direct to the reverse proxy container to direct the connections to the individual websites containers.

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.
