Email with Postfix, Dovecot and MariaDB on CentOS 7

Updated October 10, 2018 Originally authored by Linode

Traducciones al Español
Estamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.

Create a Linode account to try this guide with a $ credit.

This credit will be applied to any valid services used during your first days.

In this guide, you’ll learn how to set up a secure virtual user mail server with Postfix, Dovecot, and MariaDB (a drop-in replacement for MySQL) on CentOS 7. We’ll explain how to create new user mailboxes and send or receive email to and from configured domains.

For a different Linux distribution or different mail server, review our email tutorials.

Email restrictions on the Linode Platform

In an effort to fight spam originating from our platform, outbound connections on ports 25, 465, and 587 are blocked by default on Compute Instances for some new accounts. These restrictions prevent applications from sending email. If you intend to send email from a Compute Instance, review the Send Email on the Linode Platform guide to learn more about our email policies and to request the removal of these restrictions.

Before You Begin

Set up the Linode as specified in the Creating a Compute Instance and Setting Up and Securing a Compute Instance guide.
Verify that the iptables firewall is not blocking any of the standard mail ports (25, 465, 587, 110, 995, 143, and 993). If using a different form of firewall, confirm that it is not blocking any of the needed ports.
Review the concepts in the Running a Mail Server guide.

Configure DNS

When you’re ready to update the DNS and start sending mail to the server, edit the domain’s MX record so that it points to the Linode’s domain or IP address, similar to the example below:

example.com A 10 12.34.56.78
example.com MX 10 example.com
mail.example.com MX 10 example.com

Make sure that the MX record is changed for all domains and subdomains that might receive email. If setting up a brand new domain, these steps can be performed prior to configuring the mail server. When using Linode’s DNS Manager, create an MX record that points to the desired domain or subdomain, and then create an A record for that domain or subdomain, which points to the correct IP address.

Update Hosts File

Verify that the hosts file contains a line for the Linode’s public IP address and is associated with the Fully Qualified Domain Name (FQDN). In the example below, 192.0.2.0 is the public IP address, hostname is the local hostname, and hostname.example.com is the FQDN.

File: /etc/hosts

1
2
127.0.0.1 localhost.localdomain localhost
192.0.2.0 hostname.example.com hostname

Install SSL Certificate

You will need to install a SSL certificate on your mail server prior to completing the Dovecot configuration steps. The SSL certificate will authenticate the identity of the mail server to users and encrypt the transmitted data between the user’s mail client and the mail server.

Enable the EPEL repository:

sudo yum install epel-release
sudo yum update

Install the Certbot and web server-specific packages, then run Certbot:
```
sudo yum install python2-certbot-nginx nginx
sudo certbot --nginx
```

Certbot will ask for information about the site. The responses will be saved as part of the certificate:

# sudo certbot --nginx
Saving debug log to /var/log/letsencrypt/letsencrypt.log
Plugins selected: Authenticator apache, Installer apache

Which names would you like to activate HTTPS for?
-------------------------------------------------------------------------------
1: example.com
2: www.example.com
-------------------------------------------------------------------------------
Select the appropriate numbers separated by commas and/or spaces, or leave input
blank to select all options shown (Enter 'c' to cancel):

Certbot will also ask if you would like to automatically redirect HTTP traffic to HTTPS traffic. It is recommended that you select this option.
When the tool completes, Certbot will store all generated keys and issued certificates in the /etc/letsencrypt/live/$domain directory, where $domain is the name of the domain entered during the Certbot certificate generation step.
Note
Certbot recommends pointing your web server configuration to the default certificates directory or creating symlinks. Keys and certificates should not be moved to a different directory.
Finally, Certbot will update your web server configuration so that it uses the new certificate, and also redirects HTTP traffic to HTTPS if you chose that option.
If you have a firewall configured on your Linode, you may need to add Firewall Rules to allow incoming and outgoing connections to the HTTPS service. On CentOS, firewalld is the default tool for managing firewall rules. Configure firewalld for HTTP and HTTPS traffic:
```
 sudo firewall-cmd --zone=public --permanent --add-service=http
 sudo firewall-cmd --zone=public --permanent --add-service=https
 sudo firewall-cmd --reload
```

Make a note of the certificate and key locations on the Linode. You will need the path to each during the Dovecot configuration steps.

Install Required Packages

Install any outstanding package updates:
```
yum update
```
Install the required packages:
```
yum install postfix dovecot mariadb-server dovecot-mysql
```
This installs the Postfix mail server, the MariaDB database server, the Dovecot IMAP and POP daemons, and several supporting packages that provide services related to authentication.

Versions

This guide uses the following package versions:

Postfix 2.10.1
Dovecot 2.2.10
MariaDB 5.5.60

MariaDB

In this section you will set up a MariaDB database to store virtual domains, users and passwords. Dovecot and Postfix require this data.

Creating the Database and Tables

Follow the steps below to create the database tables for virtual users, domains and aliases:

Ensure the MariaDb server is running and enabled to start automatically on reboot:
```
 sudo systemctl start mariadb
 sudo systemctl enable mariadb
```
Use the mysql_secure_installation tool to configure additional security options. You will be given the choice to change the MariaDB root password, remove anonymous user accounts, disable root logins outside of localhost, and remove test databases. It is recommended that you answer yes to these options. You can read more about the script in the MariaDB Knowledge Base.
```
sudo mysql_secure_installation
```

Create a new database:

sudo mysqladmin -u root -p create mailserver

Log in to MySQL:
```
sudo mysql -u root -p
```
Create the MySQL user and grant the new user permissions over the database. Replace mailuserpass with a secure password:
```
GRANT SELECT ON mailserver.* TO 'mailuser'@'127.0.0.1' IDENTIFIED BY 'mailuserpass';
```
Flush the MySQL privileges to apply the change:
```
FLUSH PRIVILEGES;
```
Switch to the new mailsever database:
```
USE mailserver;
```

Create a table for the domains that will receive mail on the Linode:

CREATE TABLE `virtual_domains` (
  `id` int(11) NOT NULL auto_increment,
  `name` varchar(50) NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

Create a table for all of the email addresses and passwords:

CREATE TABLE `virtual_users` (
  `id` int(11) NOT NULL auto_increment,
  `domain_id` int(11) NOT NULL,
  `password` varchar(106) NOT NULL,
  `email` varchar(100) NOT NULL,
  PRIMARY KEY (`id`),
  UNIQUE KEY `email` (`email`),
  FOREIGN KEY (domain_id) REFERENCES virtual_domains(id) ON DELETE CASCADE
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

Create a table for the email aliases:

CREATE TABLE `virtual_aliases` (
  `id` int(11) NOT NULL auto_increment,
  `domain_id` int(11) NOT NULL,
  `source` varchar(100) NOT NULL,
  `destination` varchar(100) NOT NULL,
  PRIMARY KEY (`id`),
  FOREIGN KEY (domain_id) REFERENCES virtual_domains(id) ON DELETE CASCADE
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

Adding Data

You can now add data to the database and tables that were created in the previous section.

Add the domains to the virtual_domains table. Replace the values for example.com and hostname with your own settings:
```
INSERT INTO `mailserver`.`virtual_domains`
  (`id` ,`name`)
VALUES
  ('1', 'example.com'),
  ('2', 'hostname.example.com'),
  ('3', 'hostname'),
  ('4', 'localhost.example.com');
```
Note
Note which id corresponds to which domain, the id value is necessary for the next two steps.

Add email addresses to the virtual_users table. The domain_id value references the virtual_domain table’s id value. Replace the email address values with the addresses that you wish to configure on the mailserver. Replace the password values with strong passwords.

INSERT INTO `mailserver`.`virtual_users`
  (`id`, `domain_id`, `password` , `email`)
VALUES
  ('1', '1', ENCRYPT('password', CONCAT('$6$', SUBSTRING(SHA(RAND()), -16))), 'email1@example.com'),
  ('2', '1', ENCRYPT('password', CONCAT('$6$', SUBSTRING(SHA(RAND()), -16))), 'email2@example.com');

An email alias will forward all email from one email address to another. To set up an email alias, add it to the virtual_aliases table:

INSERT INTO `mailserver`.`virtual_aliases`
  (`id`, `domain_id`, `source`, `destination`)
VALUES
  ('1', '1', 'alias@example.com', 'email1@example.com');

Testing

In the previous section, data was added to the MySQL mailserver database. The steps below will test that the data has been stored and can be retrieved.

Log in to MySQL:
```
 sudo mysql -u root -p
```
Check the contents of the virtual_domains table:
```
SELECT * FROM mailserver.virtual_domains;
```

Verify that the output displays the domains you add to the virtual_domains table:

+----+-----------------------+
| id | name                  |
+----+-----------------------+
|  1 | example.com           |
|  2 | hostname.example.com  |
|  3 | hostname              |
|  4 | localhost.example.com |
+----+-----------------------+
4 rows in set (0.00 sec)

Check the virtual_users table:

SELECT * FROM mailserver.virtual_users;

Verify that the output displays the email addresses you added to the virutal_users table. Your hashed passwords will appear longer than they are displayed below:

+----+-----------+-------------------------------------+--------------------+
| id | domain_id | password                            | email              |
+----+-----------+-------------------------------------+--------------------+
|  1 |         1 | $6$574ef443973a5529c20616ab7c6828f7 | email1@example.com |
|  2 |         1 | $6$030fa94bcfc6554023a9aad90a8c9ca1 | email2@example.com |
+----+-----------+-------------------------------------+--------------------+
2 rows in set (0.01 sec)

Check the virtual_aliases table:

SELECT * FROM mailserver.virtual_aliases;

Verify that the output displays the aliases you added to the virtual_aliases table:

+----+-----------+-------------------+--------------------+
| id | domain_id | source            | destination        |
+----+-----------+-------------------+--------------------+
|  1 |         1 | alias@example.com | email1@example.com |
+----+-----------+-------------------+--------------------+
1 row in set (0.00 sec)

If all the desired data displays as expected, exit MySQL:
```
exit
```

Postfix

Postfix is a Mail Transfer Agent (MTA) that relays mail between the Linode and the internet. It is highly configurable, allowing for great flexibility. This guide maintains many of Posfix’s default configuration values.

Configuration File Settings

The main.cf file is the primary configuration file used by Postfix.

Make a copy of the default Postfix configuration file in case you need to revert to the default configuration:
```
sudo cp /etc/postfix/main.cf /etc/postfix/main.cf.orig
```

Edit the /etc/postfix/main.cf file to match the example configurations. Replace occurrences of example.com with your domain name:

File: /etc/postfix/main.cf

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
# See /usr/share/postfix/main.cf.dist for a commented, more complete version

# Debian specific:  Specifying a file name will cause the first
# line of that file to be used as the name.  The Debian default
# is /etc/mailname.
#myorigin = /etc/mailname

smtpd_banner = $myhostname ESMTP $mail_name (CentOS)
biff = no

# appending .domain is the MUA's job.
append_dot_mydomain = no

# Uncomment the next line to generate "delayed mail" warnings
#delay_warning_time = 4h

readme_directory = no

# TLS parameters
smtpd_tls_cert_file=/etc/letsencrypt/live/example.com/fullchain.pem
smtpd_tls_key_file=/etc/letsencrypt/live/example.com/privkey.pem
smtpd_use_tls=yes
smtpd_tls_auth_only = yes
smtp_tls_security_level = may
smtpd_tls_security_level = may
smtpd_sasl_security_options = noanonymous, noplaintext
smtpd_sasl_tls_security_options = noanonymous

# See /usr/share/doc/postfix/TLS_README.gz in the postfix-doc package for
# information on enabling SSL in the smtp client.
smtpd_relay_restrictions = permit_mynetworks permit_sasl_authenticated defer_unauth_destination
myhostname = example.com
alias_maps = hash:/etc/aliases
alias_database = hash:/etc/aliases
mydomain = example.com
myorigin = $mydomain
mydestination = localhost, localhost.$mydomain
relayhost =
mynetworks = 127.0.0.0/8 [::ffff:127.0.0.0]/104 [::1]/128
mailbox_size_limit = 0
recipient_delimiter = +
inet_interfaces = all
inet_protocols = all

# Handing off local delivery to Dovecot's LMTP, and telling it where to store mail
virtual_transport = lmtp:unix:private/dovecot-lmtp

# Virtual domains, users, and aliases
virtual_mailbox_domains = mysql:/etc/postfix/mysql-virtual-mailbox-domains.cf
virtual_mailbox_maps = mysql:/etc/postfix/mysql-virtual-mailbox-maps.cf
virtual_alias_maps = mysql:/etc/postfix/mysql-virtual-alias-maps.cf,
        mysql:/etc/postfix/mysql-virtual-email2email.cf

The main.cf file declares the location of virtual_mailbox_domains, virtual_mailbox_maps, virtual_alias_maps, and mysql-virtual-email2email files. These files contain the connection information for the MySQL lookup tables created in the MariaDB section of this guide. Postfix will use this data to identify all domains, corresponding mailboxes, and valid users.
Create the file for virtual_mailbox_domains. Replace the value for password with your database user’s password. This password was created in the Creating the Database and Tables section. If you used a different name for your database user and dbname replace those with your own values:
File: /etc/postfix/mysql-virtual-mailbox-domains.cf
1 2 3 4 5
user = mailuser password = mailuserpass hosts = 127.0.0.1 dbname = mailserver query = SELECT 1 FROM virtual_domains WHERE name='%s'
Create the /etc/postfix/mysql-virtual-mailbox-maps.cf file, and enter the following values. Use the database user’s password and make any other changes as needed:
File: /etc/postfix/mysql-virtual-mailbox-maps.cf
1 2 3 4 5
user = mailuser password = mailuserpass hosts = 127.0.0.1 dbname = mailserver query = SELECT 1 FROM virtual_users WHERE email='%s'
Create the /etc/postfix/mysql-virtual-alias-maps.cf file and enter the following values. Use the database user’s password and make any other changes as needed:
File: /etc/postfix/mysql-virtual-alias-maps.cf
1 2 3 4 5
user = mailuser password = mailuserpass hosts = 127.0.0.1 dbname = mailserver query = SELECT destination FROM virtual_aliases WHERE source='%s'
Create the /etc/postfix/mysql-virtual-email2email.cf file and enter the following values. Use the database user’s password and make any other changes as needed:
File: /etc/postfix/mysql-virtual-email2email.cf
1 2 3 4 5
user = mailuser password = mailuserpass hosts = 127.0.0.1 dbname = mailserver query = SELECT email FROM virtual_users WHERE email='%s'
Restart Postfix:
```
sudo systemctl restart postfix
```
The postmap command creates or queries Postfix’s lookup tables, or updates an existing one. Enter the following command to ensure that Postfix can query the virtual_domains table. Replace example.com with the first name value. The command should return 1 if it is successful:
```
sudo postmap -q example.com mysql:/etc/postfix/mysql-virtual-mailbox-domains.cf
```
Test Postfix to verify that it can retrieve the first email address from the MySQL table virtual_users. Replace email1@example.com with the first email address added to the table. You should receive 1 as the output:
```
sudo postmap -q email1@example.com mysql:/etc/postfix/mysql-virtual-mailbox-maps.cf
```
Verify that Postfix can retrieve the first email address from the MySQL table virtual_users using the database values entered in the mysql-virtual-mailbox-maps.cf file. Replace email1@example.com with the first email address added to the table. You should receive 1 as the output:
```
sudo postmap -q alias@example.com mysql:/etc/postfix/mysql-virtual-email2email.cf
```
Test Postfix to verify that it can query the virtual_aliases table. Replace alias@example.com with the first source value created in the table. The command should return the destination value for the row:
```
 sudo postmap -q alias@example.com mysql:/etc/postfix/mysql-virtual-alias-maps.cf
```

Master Program Settings

Postfix’s master program starts and monitors all of Postfix’s processes. The configuration file master.cf lists all programs and information on how they should be started.

Make a copy of the /etc/postfix/master.cf file:

 sudo cp /etc/postfix/master.cf /etc/postfix/master.cf.orig

Edit /etc/postfix/master.cf to contain the values in the excerpt example. The rest of the file can remain unchanged:

File: /etc/postfix/master.cf

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
#
# Postfix master process configuration file.  For details on the format
# of the file, see the master(5) manual page (command: "man 5 master" or
# on-line: http://www.postfix.org/master.5.html).
#
# Do not forget to execute "postfix reload" after editing this file.
#
# ==========================================================================
# service type  private unpriv  chroot  wakeup  maxproc command + args
#               (yes)   (yes)   (yes)    (never) (100)
# ==========================================================================
smtp      inet  n       -       n       -       -       smtpd
#smtp      inet  n       -       -       -       1       postscreen
#smtpd     pass  -       -       -       -       -       smtpd
#dnsblog   unix  -       -       -       -       0       dnsblog
#tlsproxy  unix  -       -       -       -       0       tlsproxy
submission inet n       -       -       -       -       smtpd
  -o syslog_name=postfix/submission
  -o smtpd_tls_security_level=encrypt
  -o smtpd_sasl_auth_enable=yes
  -o smtpd_sasl_type=dovecot
  -o smtpd_sasl_path=private/auth
  -o smtpd_reject_unlisted_recipient=no
  -o smtpd_client_restrictions=permit_sasl_authenticated,reject
  -o milter_macro_daemon_name=ORIGINATING
smtps     inet  n       -       -       -       -       smtpd
  -o syslog_name=postfix/smtps
  -o smtpd_tls_wrappermode=yes
  -o smtpd_sasl_auth_enable=yes
  -o smtpd_sasl_type=dovecot
  -o smtpd_sasl_path=private/auth
  -o smtpd_client_restrictions=permit_sasl_authenticated,reject
  -o milter_macro_daemon_name=ORIGINATING
  ...

Change the permissions of the /etc/postfix directory to restrict permissions to allow only its owner and the corresponding group:
```
 sudo chmod -R o-rwx /etc/postfix
```
Restart Postfix:
```
 sudo systemctl restart postfix
```
If you get the fatal: 0.0.0.0:smtps: Servname not supported for ai_socktype error after restarting Postfix, add following service entries to /etc/services:
File: /etc/services
1 2
smtps 465/tcp # Secure SMTP smtps 465/udp # Secure SMTP

Dovecot

Dovecot is the Mail Delivery Agent (MDA) which is passed messages from Postfix and delivers them to a virtual mailbox. In this section, configure Dovecot to force users to use SSL when they connect so that their passwords are never sent to the server in plain text.

Copy all of the configuration files so you can easily revert back to them if needed:

sudo cp /etc/dovecot/dovecot.conf /etc/dovecot/dovecot.conf.orig
sudo cp /etc/dovecot/conf.d/10-mail.conf /etc/dovecot/conf.d/10-mail.conf.orig
sudo cp /etc/dovecot/conf.d/10-auth.conf /etc/dovecot/conf.d/10-auth.conf.orig
sudo cp /etc/dovecot/conf.d/auth-sql.conf.ext /etc/dovecot/conf.d/auth-sql.conf.ext.orig
sudo cp /etc/dovecot/conf.d/10-master.conf /etc/dovecot/conf.d/10-master.conf.orig
sudo cp /etc/dovecot/conf.d/10-ssl.conf /etc/dovecot/conf.d/10-ssl.conf.orig

Edit the /etc/dovecot/dovecot.conf file. Uncomment protocols = imap pop3 lmtp in the # Protocols we want to be serving. section of the file:
File: /etc/dovecot/dovecot.conf
1 2 3 4
## Dovecot configuration file ... # Protocols we want to be serving. protocols = imap pop3 lmtp
Edit the /etc/dovecot/conf.d/10-mail.conf file. This file controls how Dovecot interacts with the server’s file system to store and retrieve messages.
Modify the following variables within the configuration file:
File: /etc/dovecot/conf.d/10-mail.conf
1 2 3 4 5
... mail_location = maildir:/var/mail/vhosts/%d/%n ... mail_privileged_group = mail ...
Create the /var/mail/vhosts/ directory and a subdirectory for your domain. Replace example.com with your domain name:
```
sudo mkdir -p /var/mail/vhosts/example.com
```
This directory will serve as storage for mail sent to your domain.
Create the vmail group with ID 5000. Add a new user vmail to the vmail group. This system user will read mail from the server.
```
 sudo groupadd -g 5000 vmail
 sudo useradd -g vmail -u 5000 vmail -d /var/mail/
```
Change the owner of the /var/mail/ folder and its contents to belong to vmail:
```
sudo chown -R vmail:vmail /var/mail/
```
Edit the user authentication file, located in /etc/dovecot/conf.d/10-auth.conf. Uncomment the following variables and replace with the file excerpt’s example values:
File: /etc/dovecot/conf.d/10-auth.conf
1 2 3 4 5 6 7 8 9
... disable_plaintext_auth = yes ... auth_mechanisms = plain login ... !include auth-system.conf.ext ... !include auth-sql.conf.ext ...

Edit the /etc/dovecot/conf.d/auth-sql.conf.ext file with authentication and storage information. Ensure your file contains the following lines and that they are uncommented:

File: /etc/dovecot/conf.d/auth-sql.conf.ext

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
...
passdb {
  driver = sql
  args = /etc/dovecot/dovecot-sql.conf.ext
}
...
userdb {
  driver = static
  args = uid=vmail gid=vmail home=/var/mail/vhosts/%d/%n
}
...

Create the /etc/dovecot/dovecot-sql.conf.ext file and update it with your MySQL connection information. Add the following variables and replace the values with the excerpt example. Replace dbname, user and password with your own MySQL database values:

File: /etc/dovecot/dovecot-sql.conf.ext

1
2
3
4
driver = mysql
connect = host=127.0.0.1 dbname=mailserver user=mailuser password=mailuserpass
default_pass_scheme = SHA512-CRYPT
password_query = SELECT email as user, password FROM virtual_users WHERE email='%u';

The password_query variable uses email addresses listed in the virtual_users table as the username credential for an email account.

To use an alias as the username:

Add the alias as the source and destination email address to the virtual_aliases table.
Change the /etc/dovecot/dovecot-sql.conf.ext file’s password_query value to password_query = SELECT email as user, password FROM virtual_users WHERE email=(SELECT destination FROM virtual_aliases WHERE source = '%u');

Change the owner and group of the /etc/dovecot/ directory to vmail and dovecot:
```
 sudo chown -R vmail:dovecot /etc/dovecot
```
Change the permissions on the /etc/dovecot/ directory to be recursively read, write, and execute for the owner of the directory:
```
 sudo chmod -R o-rwx /etc/dovecot
```

Edit the service settings file /etc/dovecot/conf.d/10-master.conf:

Note

When editing the file, be careful not to remove any opening or closing curly braces. If there’s a syntax error, Dovecot will crash silently. You can check /var/log/upstart/dovecot.log to debug the error.

Disable unencrypted IMAP and POP3 by setting the protocols’ ports to 0. Uncomment the port and ssl variables:

File: /etc/dovecot/conf.d/10-master.conf

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
...
service imap-login {
  inet_listener imap {
    port = 0
  }
  inet_listener imaps {
    port = 993
    ssl = yes
  }
  ...
}
...
service pop3-login {
  inet_listener pop3 {
    port = 0
  }
  inet_listener pop3s {
    port = 995
    ssl = yes
  }
}
...

Find the service lmtp section of the file and use the configuration shown below:

File: /etc/dovecot/conf.d/10-master.conf

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
...
service lmtp {
  unix_listener /var/spool/postfix/private/dovecot-lmtp {
    #mode = 0666i
    mode = 0600
    user = postfix
    group = postfix
  }
...
}

Locate service auth and configure it as shown below:

File: /etc/dovecot/conf.d/10-master.conf

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
...
service auth {
  ...
  unix_listener /var/spool/postfix/private/auth {
    mode = 0660
    user = postfix
    group = postfix
  }

  unix_listener auth-userdb {
    mode = 0600
    user = vmail
  }
...
  user = dovecot
}
...

In the service auth-worker section, uncomment the user line and set it to vmail:

File: /etc/dovecot/conf.d/10-master.conf

1
2
3
4
5
...
service auth-worker {
  ...
  user = vmail
}

Save the changes to the /etc/dovecot/conf.d/10-master.conf file.

Edit /etc/dovecot/conf.d/10-ssl.conf file to require SSL and to add the location of your domain’s SSL certificate and key. Replace example.com with your domain:

File: /etc/dovecot/conf.d/10-ssl.conf

1
2
3
4
5
6
...
# SSL/TLS support: yes, no, required. <doc/wiki/SSL.txt>
ssl = required
...
ssl_cert = </etc/letsencrypt/live/example.com/fullchain.pem
ssl_key = </etc/letsencrypt/live/example.com/privkey.pem

Restart Dovecot to enable all configurations:
```
 sudo systemctl restart dovecot
```

Test Your Configuration

Note

Given the possibility of hosting a large number of virtual domains on a single mail system, the username portion of an email address (i.e. before the @ sign) is not sufficient to authenticate to the mail server. When email users authenticate to the server, they must supply their email clients with the entire email address created above as their username.

Prior to accessing any newly-created email account, a test message needs to be sent to create that user’s mailbox (replace email1@example.com with an address that you have configured in your database):
```
yum install mailx
mail email1@example.com
```
Enter a subject and message (optional), then press Ctrl+D to complete and send the message.

After the test mail is sent, check /var/log/maillog to make sure the mail was delivered.

tail /var/log/maillog

At the end of the file, you should see something similar to the following:

File: /var/log/maillog

1
2
3
4
Mar 18 17:18:47 localhost postfix/cleanup[3427]: B624062FA: message-id=<20150318171847.B624062FA@example.com>
Mar 18 17:18:47 localhost postfix/qmgr[3410]: B624062FA: from=<root@example.com>, size=515, nrcpt=1 (queue active)
Mar 18 17:18:47 localhost postfix/pipe[3435]: B624062FA: to=<email1@example.com>, relay=dovecot, delay=0.14, delays=0.04/0.01/0/0.09, dsn=2.0.0, $
Mar 18 17:18:47 localhost postfix/qmgr[3410]: B624062FA: removed

Now you can test to see what the users of your email server would see with their email clients. To test the email1@example.com mailbox, navigate to the mailbox directory /var/mail/vhosts/example.com/email1 and issue the following command:
```
find
```

You should see output similar to the following:

.
./dovecot-uidvalidity
./new
./maildirfolder
./dovecot.index.cache
./cur
./cur/1539202420.M440788P27259.mail,S=450,W=465:2,S
./dovecot.index.log
./dovecot-uidlist
./dovecot-uidvalidity.5bbe5d50
./tmp

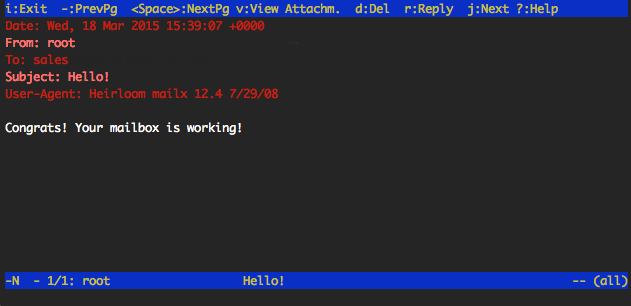

Test the mailbox by using a simple mail client. For this test, using mutt is recommended. If it is not installed by default, install it with yum install mutt, then run:
```
sudo mutt -f .
```
You may be prompted to create the root mailbox. This is not required.
If there is an email in the inbox, Postfix, Dovecot, and MySQL have been successfully configured! To quit mutt press q.

Email Client

You can set up an email client to connect to your mail server. Many clients detect server settings automatically. Manual configuration requires the following parameters:

Username: The full email address, including the @example.com part.
Password: The password that was entered for the email address in the virtual_users table of the mailuser database.
Server name: The incoming and outgoing server names must be a domain that resolves to the Linode.
SSL: Incoming and outgoing servers require authentication and SSL encryption.
Ports: Use Port 993 for secure IMAP, Port 995 for secure POP3, and Port 587 with SSL for SMTP.

See Install SquirrelMail on Ubuntu 16.04 for details on installing an email client.

Adding New Domains, Email Addresses, and Aliases

To add new domains, email addresses, and aliases to the mailserver you will need to update the corresponding MySQL tables created in the MySQL section of this guide.

Domains

To add a new domain, connect to your Linode via SSH.
Log in to the MySQL server:
```
sudo mysql -u root
```
Enter the root MySQL password when prompted.
View the contents of the table before adding new entries. If you did not use virtual_domains as the name of your domain table, replace the value:
```
SELECT * FROM mailserver.virtual_domains;
```

The output should resemble the following:

        +----+-----------------------+
        | id | name                  |
        +----+-----------------------+
        |  1 | example.com           |
        |  2 | hostname.example.com  |
        |  3 | hostname              |
        |  4 | localhost.example.com |
        +----+-----------------------+

Add a new domain to the table. Replace newdomain.com with the desired domain name:

INSERT INTO `mailserver`.`virtual_domains`
  (`name`)
VALUES
  ('newdomain.com');

Verify that the new domain has been added. The output should display the new domain name.
```
SELECT * FROM mailserver.virtual_domains;
```
Exit MySQL:
```
quit
```

Email Addresses

Verify the contents of the user table. Replace virtual_users with your table name:

 SELECT * FROM mailserver.virtual_users;

The output should resemble the following:

+----+-----------+-------------------------------------+--------------------+
| id | domain_id | password                            | email              |
+----+-----------+-------------------------------------+--------------------+
|  1 |         1 | $6$574ef443973a5529c20616ab7c6828f7 | email1@example.com |
|  2 |         1 | $6$030fa94bcfc6554023a9aad90a8c9ca1 | email2@example.com |
+----+-----------+-------------------------------------+--------------------+
2 rows in set (0.01 sec)

Add a new email address to the existing table. Replace newpassword with the user’s password, and email3@newdomain.com with the user’s email address:
```
 INSERT INTO `mailserver`.`virtual_users`
   (`domain_id`, `password` , `email`)
 VALUES
   ('5', ENCRYPT('newpassword', CONCAT('$6$', SUBSTRING(SHA(RAND()), -16))) , 'email3@newdomain.com');
```
Note
The domain_id should correspond to the id value of the domain in the virtual_domains table. In the example, we are creating an email address for newdomain.com added in the previous section.
Verify that the new email address has been added. The new email address should be displayed in the output:
```
SELECT * FROM mailserver.virtual_users;
```
Exit MySQL:
```
quit
```

Aliases

Verify the contents of the user table. Replace virtual_users with your table name:

 SELECT * FROM mailserver.virtual_aliases;

The output should resemble the following:

+----+-----------+-------------------+--------------------+
| id | domain_id | source            | destination        |
+----+-----------+-------------------+--------------------+
|  1 |         1 | alias@example.com | email1@example.com |
+----+-----------+-------------------+--------------------+
1 row in set (0.00 sec)

Add a new alias. Replace alias@newdomain.com with the address to forward email from, and email1@gmail.com with the address that you want to forward the mail to. The alias@newdomain.com needs to be an email address that already exists on the mail server:
```
INSERT INTO `mailserver`.`virtual_aliases`
  (`domain_id`, `source`, `destination`)
VALUES
  ('5', 'alias@newdomain.com', 'myemail@gmail.com');
```
Note
The domain_id should correspond to the id value of the domain in the virtual_domains table. In the example, we are creating an email address for newdomain.com added in the previous section.
You can create a “catch-all” alias which will forward all emails sent to the matching domain that does not have matching aliases or users. Replace @newdomain.com with your domain. This value is the source of the alias.
```
INSERT INTO `mailserver`.`virtual_aliases`
  (`domain_id`, `source`, `destination`)
VALUES
  ('5', '@newdomain.com', 'myemail@gmail.com');
```
Verify that the new alias has been added. The new alias will be displayed in the output:
```
SELECT * FROM mailserver.virtual_aliases;
```
Exit MySQL:
```
quit
```

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

This page was originally published on March 26, 2015.

centos postfix email mariadb

Join the conversation.

Read other comments or post your own below. Comments must be respectful, constructive, and relevant to the topic of the guide. Do not post external links or advertisements. Before posting, consider if your comment would be better addressed by contacting our Support team or asking on our Community Site.

The Disqus commenting system for Linode Docs requires the acceptance of Functional Cookies, which allow us to analyze site usage so we can measure and improve performance. To view and create comments for this article, please update your Cookie Preferences on this website and refresh this web page. Please note: You must have JavaScript enabled in your browser.

Compute

Storage

Networking

Databases

Services

Developer Tools

Industries

Pricing

Community

Engage With Us

Search Results

No Results

Filters

Email with Postfix, Dovecot and MariaDB on CentOS 7

Before You Begin

Configure DNS

Update Hosts File

Install SSL Certificate

Install Required Packages

Versions

MariaDB

Creating the Database and Tables

Adding Data

Testing

Postfix

Configuration File Settings

Master Program Settings

Dovecot

Test Your Configuration

Email Client

Adding New Domains, Email Addresses, and Aliases

Domains

Email Addresses

Aliases

More Information

Your Feedback Is Important

On this page
