Email with Postfix, Dovecot and MySQL on Debian 6 (Squeeze)
Traducciones al EspañolEstamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
DeprecatedThis guide has been deprecated and is no longer being maintained.
The Postfix Mail Transfer Agent (MTA) is a high performance open source e-mail server system. This guide will help you get Postfix running on your Debian 6 (Squeeze) Linode, using Dovecot for IMAP/POP3 service and MySQL to store information on virtual domains and users. This guide is largely based on Christoph Haas’s great ISP-style Email Server with Debian-Lenny and Postfix 2.5 guide and HowtoForge Groupware Server With Group-Office, Postfix, Dovecot And SpamAssassin On Debian Lenny (5.0), with some packages omitted.
It is assumed that you have followed the steps outlined in our Setting Up and Securing a Compute Instance. All configuration will be performed in a terminal session; make sure you’re logged into your Linode as root via SSH.
NOTE: Please read all of the information presented in this guide carefully. There are many files and commands that will need to be edited as part of the setup process: please do not simply copy and paste the example blocks.
Set the Hostname
Before you begin installing and configuring the components described in this guide, please make sure you’ve followed our instructions for setting your hostname. Issue the following commands to make sure it is set properly:
hostname
hostname -f
The first command should show your short hostname, and the second should show your fully qualified domain name (FQDN).
Install Required Packages
Issue the following commands to install any outstanding package updates:
apt-get update
apt-get upgrade
Issue the following command to get the required packages installed on your Linode:
apt-get install postfix postfix-mysql postfix-doc mysql-client mysql-server dovecot-common dovecot-imapd dovecot-pop3d libsasl2-2 libsasl2-modules libsasl2-modules-sql sasl2-bin libpam-mysql openssl telnet mailutils

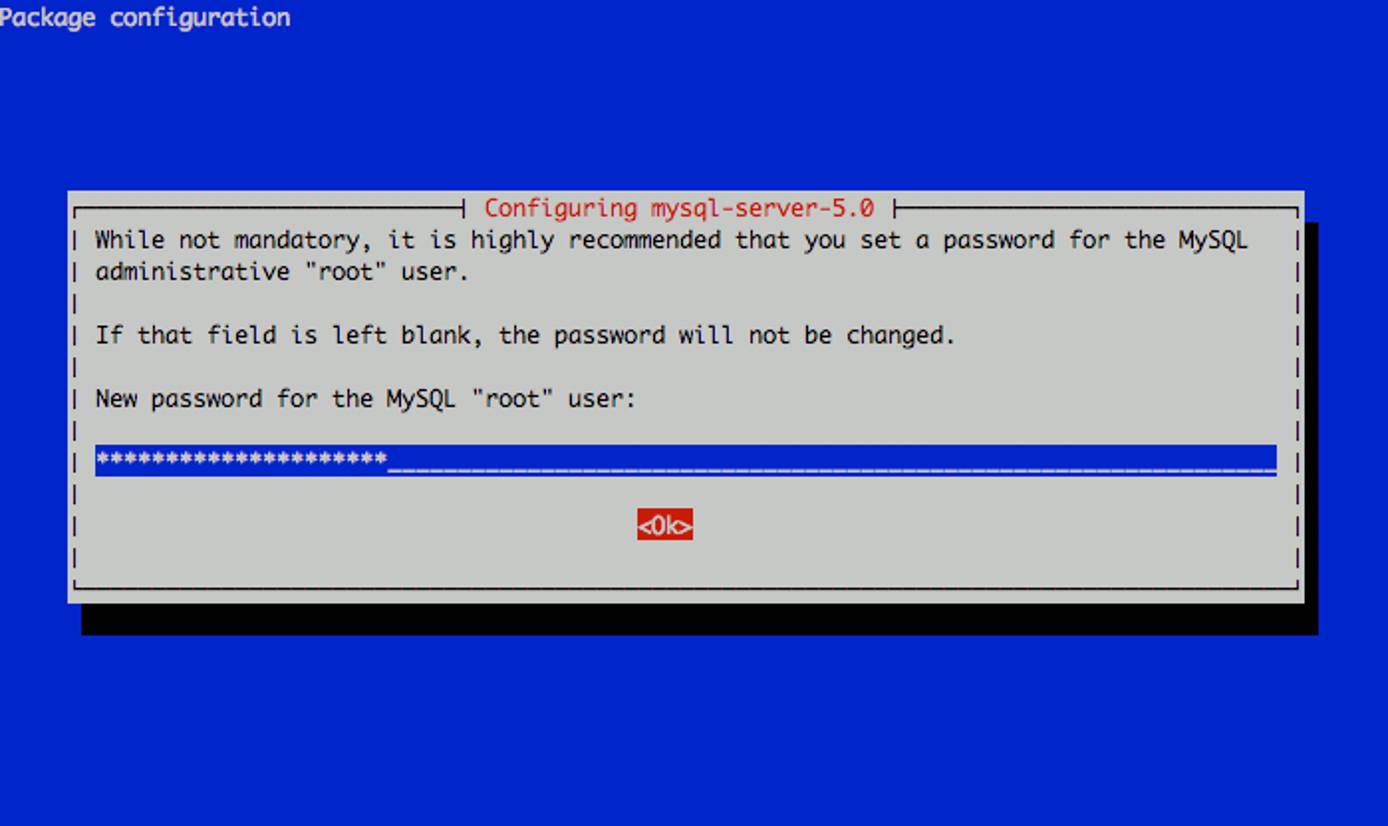

This will install the Postfix mail server, the MySQL database server, the Dovecot IMAP and POP daemons, and several supporting packages that provide services related to authentication. You will be prompted to choose a root password for MySQL; make sure you select a strong password comprised of letters, numbers, and non-alphanumeric characters. Write this password down and keep it in a safe place for later reference.
![](/docs/images/pix.gif)
![Setting the root password for MySQL on a Linode. Setting the root password for MySQL on a Linode.](/docs/guides/email-with-postfix-dovecot-and-mysql-on-debian-6-squeeze/751-postfix-courier-mysql-01-mysql-root-password_hu13c41117686299fd2672f7fecf2b25f0_10899_694x0_resize_q71_bgfafafc_catmullrom_3.jpg)
![Setting the root password for MySQL on a Linode. Setting the root password for MySQL on a Linode.](/docs/guides/email-with-postfix-dovecot-and-mysql-on-debian-6-squeeze/751-postfix-courier-mysql-01-mysql-root-password_hu13c41117686299fd2672f7fecf2b25f0_10899_1388x0_resize_q71_bgfafafc_catmullrom_3.jpg)

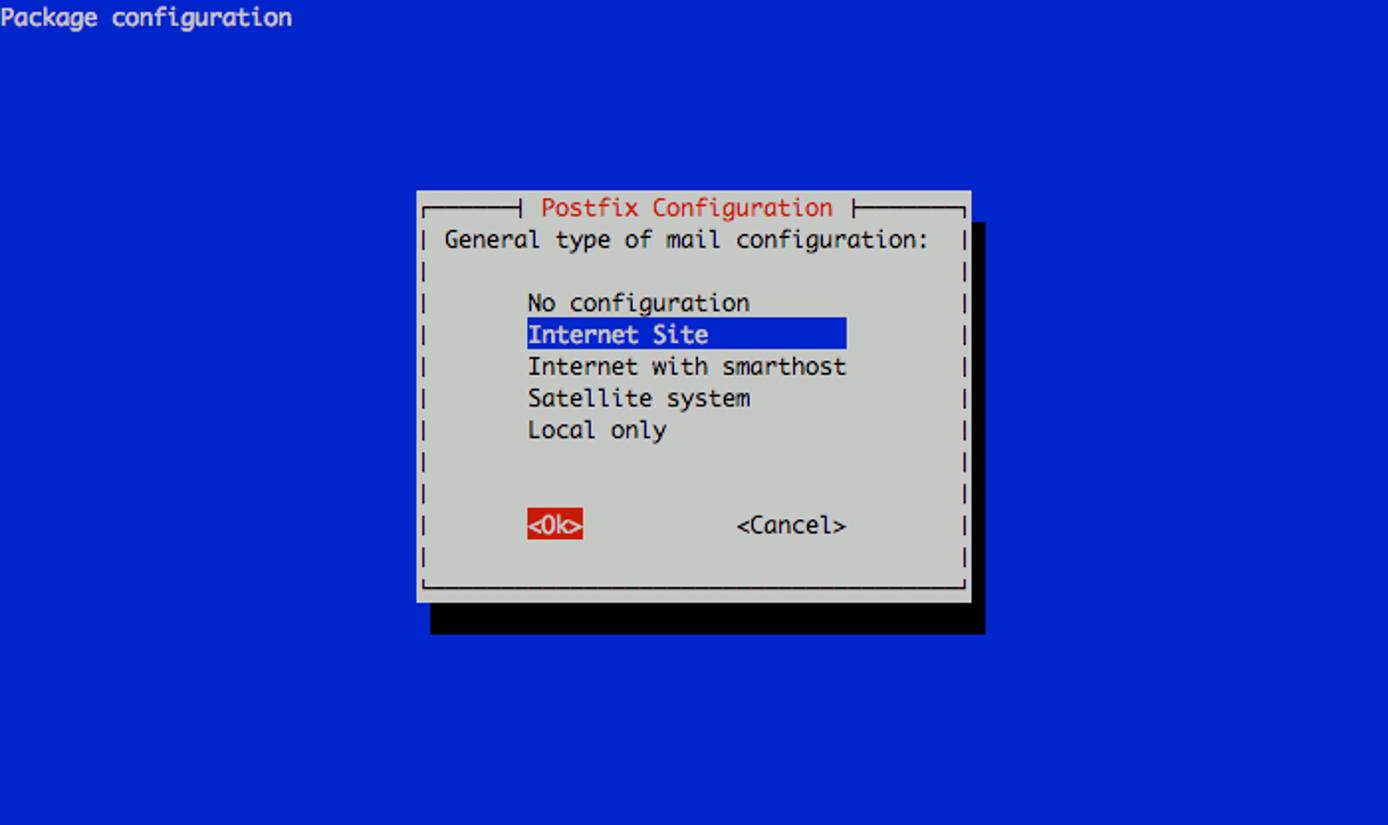

Next, you’ll be prompted to select the type of mail server configuration you want for your Linode. Select “Internet Site” and continue.
![](/docs/images/pix.gif)
![Selecting the Postfix mail server configuration type on a Debian 6 (Squeeze) Linode. Selecting the Postfix mail server configuration type on a Debian 6 (Squeeze) Linode.](/docs/guides/email-with-postfix-dovecot-and-mysql-on-debian-6-squeeze/752-postfix-courier-mysql-02-mail-server-type-2_hucabb7728fb4830116ddbca9c12fab29b_9409_694x0_resize_q71_bgfafafc_catmullrom_3.jpg)
![Selecting the Postfix mail server configuration type on a Debian 6 (Squeeze) Linode. Selecting the Postfix mail server configuration type on a Debian 6 (Squeeze) Linode.](/docs/guides/email-with-postfix-dovecot-and-mysql-on-debian-6-squeeze/752-postfix-courier-mysql-02-mail-server-type-2_hucabb7728fb4830116ddbca9c12fab29b_9409_1388x0_resize_q71_bgfafafc_catmullrom_3.jpg)

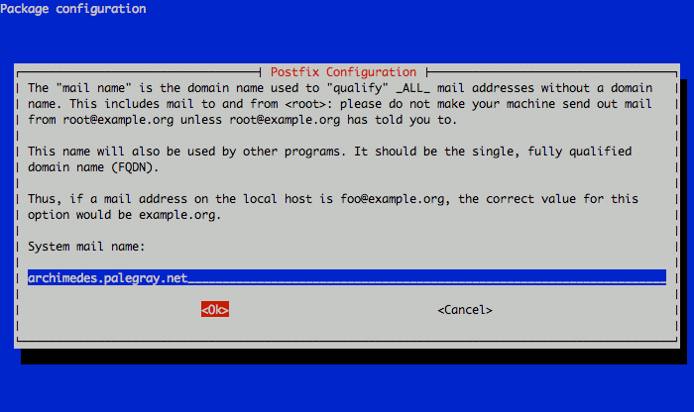

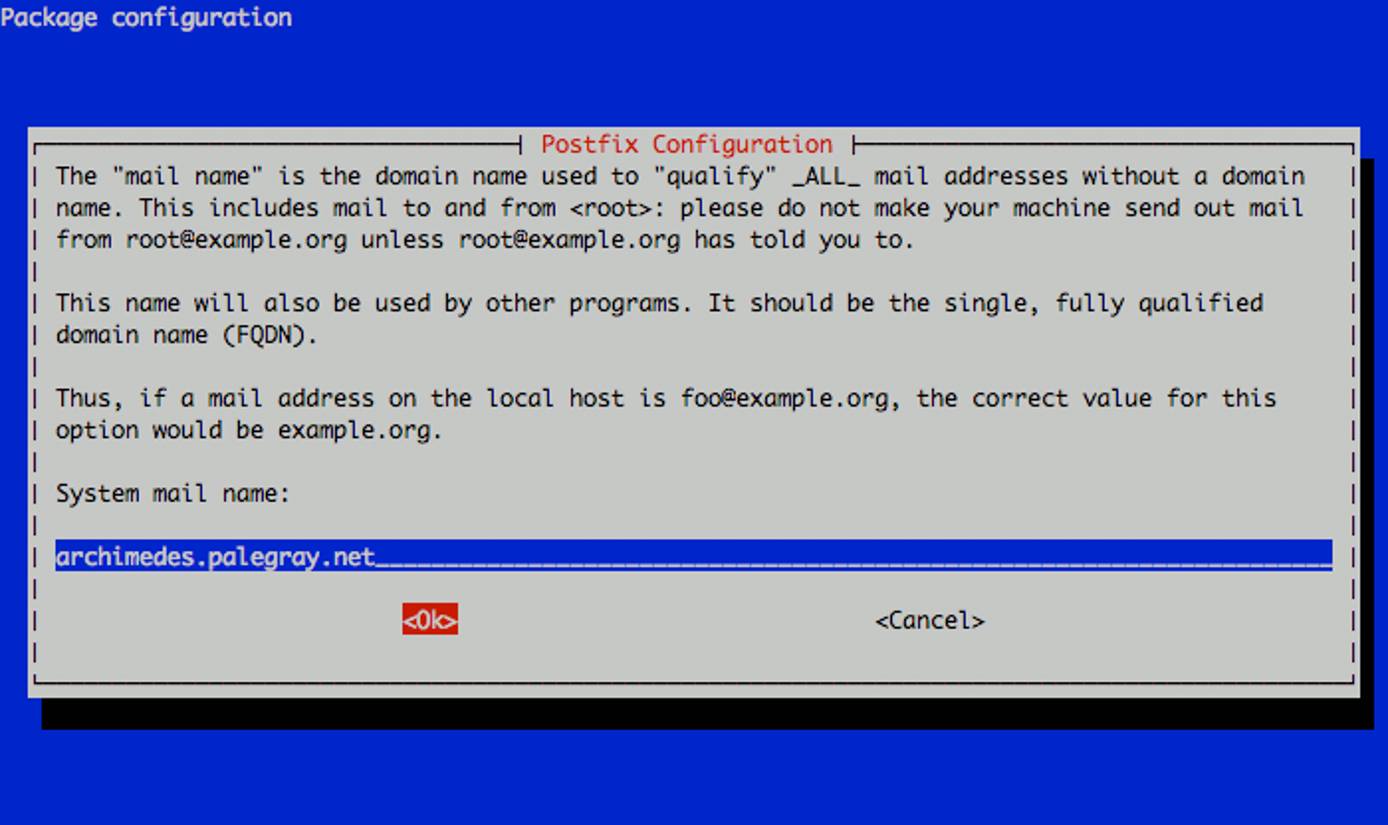

Now you’ll need to set the system mail name. This should be a fully qualified domain name (FQDN) that points to your Linode’s IP address. This example uses an example organization’s domain. You should set the reverse DNS for your Linode’s IP address to the fully qualified domain name you assign as the system mail name, while other domains you wish to host email for will be handled later through virtual domain setup steps.
![](/docs/images/pix.gif)
![Selecting the Postfix system mail name on a Debian 6 (Squeeze) Linode. Selecting the Postfix system mail name on a Debian 6 (Squeeze) Linode.](/docs/guides/email-with-postfix-dovecot-and-mysql-on-debian-6-squeeze/753-postfix-courier-mysql-02-mail-server-type-3_hu9b4b2206afa5f4291359929ff0b411bc_17128_694x0_resize_q71_bgfafafc_catmullrom_3.jpg)
![Selecting the Postfix system mail name on a Debian 6 (Squeeze) Linode. Selecting the Postfix system mail name on a Debian 6 (Squeeze) Linode.](/docs/guides/email-with-postfix-dovecot-and-mysql-on-debian-6-squeeze/753-postfix-courier-mysql-02-mail-server-type-3_hu9b4b2206afa5f4291359929ff0b411bc_17128_1388x0_resize_q71_bgfafafc_catmullrom_3.jpg)
This completes the initial package configuration steps. Next, you’ll set up a MySQL database to handle virtual domains and users.
Set up MySQL for Virtual Domains and Users
Start the MySQL shell by issuing the following command. You’ll be prompted to enter the root password for MySQL that you assigned during the initial setup.
mysql -u root -p
You’ll be presented with an interface similar to the following.
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 40
Server version: 5.1.49-3 (Debian)
Copyright (c) 2000, 2010, Oracle and/or its affiliates. All rights reserved.
This software comes with ABSOLUTELY NO WARRANTY. This is free software,
and you are welcome to modify and redistribute it under the GPL v2 license
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql>
Issue the following command to create a database for your mail server and switch to it in the shell:
CREATE DATABASE mail;
USE mail;
Create a mail administration user called mail_admin
and grant it permissions on the mail
database with the following commands. Please be sure to replace mail_admin_password
with a password you select for this user.
GRANT SELECT, INSERT, UPDATE, DELETE ON mail.* TO 'mail_admin'@'localhost' IDENTIFIED BY 'mail_admin_password';
GRANT SELECT, INSERT, UPDATE, DELETE ON mail.* TO 'mail_admin'@'localhost.localdomain' IDENTIFIED BY 'mail_admin_password';
FLUSH PRIVILEGES;
Create the virtual domains table with the following command:
CREATE TABLE domains (domain varchar(50) NOT NULL, PRIMARY KEY (domain) );
Create a table to handle mail forwarding with the following command:
CREATE TABLE forwardings (source varchar(80) NOT NULL, destination TEXT NOT NULL, PRIMARY KEY (source) );
Create the users table with the following command:
CREATE TABLE users (email varchar(80) NOT NULL, password varchar(20) NOT NULL, PRIMARY KEY (email) );
Create a transports table with the following command:
CREATE TABLE transport ( domain varchar(128) NOT NULL default '', transport varchar(128) NOT NULL default '', UNIQUE KEY domain (domain) );
Exit the MySQL shell by issuing the following command:
quit
Check that MySQL is set up to bind to localhost (127.0.0.1) by looking at the file /etc/mysql/my.cnf
. You should have the following line in the configuration file:
1
/etc/mysql/my.cnf
bind-address = 127.0.0.1
This is required for Postfix to be able to communicate with the database server. If you have MySQL set up to run on another IP address (such as an internal IP), you will need to substitute this IP address in place of 127.0.0.1
during the Postfix configuration steps. Please note that it is not advisable to run MySQL on a publicly-accessible IP address.
If you changed MySQL’s configuration, restart the database server with the following command:
service mysql restart
Next, you’ll perform additional Postfix configuration to set up communication with the database.
Configure Postfix to work with MySQL
Create a virtual domain configuration file for Postfix called /etc/postfix/mysql-virtual_domains.cf
with the following contents. Be sure to replace mail_admin_password
with the password you chose earlier for the MySQL mail administrator user.
- File: /etc/postfix/mysql-virtual_domains.cf
1
user = mail_admin password = mail_admin_password dbname = mail query = SELECT domain AS virtual FROM domains WHERE domain='%s' hosts = 127.0.0.1
Create a virtual forwarding file for Postfix called /etc/postfix/mysql-virtual_forwardings.cf
with the following contents. Be sure to replace mail_admin_password
with the password you chose earlier for the MySQL mail administrator user.
- File: /etc/postfix/mysql-virtual_forwardings.cf
1
user = mail_admin password = mail_admin_password dbname = mail query = SELECT destination FROM forwardings WHERE source='%s' hosts = 127.0.0.1
Create a virtual mailbox configuration file for Postfix called /etc/postfix/mysql-virtual_mailboxes.cf
with the following contents. Be sure to replace mail_admin_password
with the password you chose earlier for the MySQL mail administrator user.
- File: /etc/postfix/mysql-virtual_mailboxes.cf
1
user = mail_admin password = mail_admin_password dbname = mail query = SELECT CONCAT(SUBSTRING_INDEX(email,<'@'>,-1),'/',SUBSTRING_INDEX(email,<'@'>,1),'/') FROM users WHERE email='%s' hosts = 127.0.0.1
Create a virtual email mapping file for Postfix called /etc/postfix/mysql-virtual_email2email.cf
with the following contents. Be sure to replace mail_admin_password
with the password you chose earlier for the MySQL mail administrator user.
- File: /etc/postfix/mysql-virtual_email2email.cf
1
user = mail_admin password = mail_admin_password dbname = mail query = SELECT email FROM users WHERE email='%s' hosts = 127.0.0.1
Set proper permissions and ownership for these configuration files by issuing the following commands:
chmod o= /etc/postfix/mysql-virtual_*.cf
chgrp postfix /etc/postfix/mysql-virtual_*.cf
Next, create a user and group for mail handling. All virtual mailboxes will be stored under this user’s home directory.
groupadd -g 5000 vmail
useradd -g vmail -u 5000 vmail -d /home/vmail -m
Issue the following commands to complete the remaining steps required for Postfix configuration. Please be sure to replace “server.example.com” with the fully qualified domain name you used for your system mail name.
postconf -e 'myhostname = server.example.com'
postconf -e 'mydestination = server.example.com, localhost, localhost.localdomain'
postconf -e 'mynetworks = 127.0.0.0/8'
postconf -e 'message_size_limit = 30720000'
postconf -e 'virtual_alias_domains ='
postconf -e 'virtual_alias_maps = proxy:mysql:/etc/postfix/mysql-virtual_forwardings.cf, mysql:/etc/postfix/mysql-virtual_email2email.cf'
postconf -e 'virtual_mailbox_domains = proxy:mysql:/etc/postfix/mysql-virtual_domains.cf'
postconf -e 'virtual_mailbox_maps = proxy:mysql:/etc/postfix/mysql-virtual_mailboxes.cf'
postconf -e 'virtual_mailbox_base = /home/vmail'
postconf -e 'virtual_uid_maps = static:5000'
postconf -e 'virtual_gid_maps = static:5000'
postconf -e 'smtpd_sasl_auth_enable = yes'
postconf -e 'broken_sasl_auth_clients = yes'
postconf -e 'smtpd_sasl_authenticated_header = yes'
postconf -e 'smtpd_recipient_restrictions = permit_mynetworks, permit_sasl_authenticated, reject_unauth_destination'
postconf -e 'smtpd_use_tls = yes'
postconf -e 'smtpd_tls_cert_file = /etc/postfix/smtpd.cert'
postconf -e 'smtpd_tls_key_file = /etc/postfix/smtpd.key'
postconf -e 'virtual_create_maildirsize = yes'
postconf -e 'virtual_maildir_extended = yes'
postconf -e 'proxy_read_maps = $local_recipient_maps $mydestination $virtual_alias_maps $virtual_alias_domains $virtual_mailbox_maps $virtual_mailbox_domains $relay_recipient_maps $relay_domains $canonical_maps $sender_canonical_maps $recipient_canonical_maps $relocated_maps $transport_maps $mynetworks $virtual_mailbox_limit_maps'
postconf -e virtual_transport=dovecot
postconf -e dovecot_destination_recipient_limit=1
This completes the configuration for Postfix. Next, you’ll make an SSL certificate for the Postfix server that contains values appropriate for your organization.
Create an SSL Certificate for Postfix
Issue the following commands to create the SSL certificate (the openssl
command spans two lines, but should be entered as a single command):
cd /etc/postfix
openssl req -new -outform PEM -out smtpd.cert -newkey rsa:2048 -nodes -keyout smtpd.key -keyform PEM -days 365 -x509
You will be asked to enter several values similar to the output shown below. Be sure to enter the fully qualified domain name you used for the system mailname in place of “server.example.com”.
Country Name (2 letter code) [AU]:US
State or Province Name (full name) [Some-State]:New Jersey
Locality Name (eg, city) []:Absecon
Organization Name (eg, company) [Internet Widgits Pty Ltd]:MyCompany, LLC
Organizational Unit Name (eg, section) []:Email Services
Common Name (eg, YOUR name) []:server.example.com
Email Address []:support@example.com
Set proper permissions for the key file by issuing the following command:
chmod o= /etc/postfix/smtpd.key
This completes SSL certificate creation for Postfix. Next, you’ll configure saslauthd
to use MySQL for user authentication.
Configure saslauthd to use MySQL
Issue the following command to create a directory for saslauthd
:
mkdir -p /var/spool/postfix/var/run/saslauthd
Make a backup copy of the /etc/default/saslauthd
file by issuing the following command.
cp -a /etc/default/saslauthd /etc/default/saslauthd.bak
Edit the file /etc/default/saslauthd
to match the configuration shown below.
1
/etc/default/saslauthd
START=yes DESC=“SASL Authentication Daemon” NAME=“saslauthd” MECHANISMS=“pam” MECH_OPTIONS="" THREADS=5 OPTIONS="-c -m /var/spool/postfix/var/run/saslauthd -r"
Next, create the file /etc/pam.d/smtp
and copy in the following two lines. Be sure to change mail_admin_password
to the password you chose for your mail administration MySQL user earlier.
1
/etc/pam.d/smtp
auth required pam_mysql.so user=mail_admin passwd=mail_admin_password host=127.0.0.1 db=mail table=users usercolumn=email passwdcolumn=password crypt=1 account sufficient pam_mysql.so user=mail_admin passwd=mail_admin_password host=127.0.0.1 db=mail table=users usercolumn=email passwdcolumn=password crypt=1
Create a file named /etc/postfix/sasl/smtpd.conf
with the following contents. Be sure to change mail_admin_password
to the password you chose for your mail administration MySQL user earlier.
1
/etc/postfix/sasl/smtpd.conf
pwcheck_method: saslauthd mech_list: plain login allow_plaintext: true auxprop_plugin: mysql sql_hostnames: 127.0.0.1 sql_user: mail_admin sql_passwd: mail_admin_password sql_database: mail sql_select: select password from users where email = ‘%u’
Set proper permissions and ownership for these configuration files by issuing the following commands:
chmod o= /etc/pam.d/smtp
chmod o= /etc/postfix/sasl/smtpd.conf
Add the Postfix user to the sasl
group and restart Postfix and saslauthd
by issuing the following commands:
adduser postfix sasl
service postfix restart
service saslauthd restart
This completes configuration for saslauthd
. Next, you’ll configure Dovecot to use MySQL for IMAP/POP3 user authentication.
Configure Dovecot
Edit the file /etc/postfix/master.cf
and add the dovecot service to the bottom of the file.
- File: /etc/postfix/master.cf
1 2
dovecot unix - n n - - pipe : flags=DRhu user=vmail:vmail argv=/usr/lib/dovecot/deliver -d \${recipient}
Issue the following command to make a backup copy of your /etc/dovecot/dovecot.conf
file.
cp -a /etc/dovecot/dovecot.conf /etc/dovecot/dovecot.conf.bak
Replace the contents of the file with the following example, substituting your system’s domain name for example.com.
1
/etc/dovecot/dovecot.conf
protocols = imap imaps pop3 pop3s log_timestamp = “%Y-%m-%d %H:%M:%S " mail_location = maildir:/home/vmail/%d/%n/Maildir
ssl_cert_file = /etc/ssl/certs/dovecot.pem ssl_key_file = /etc/ssl/private/dovecot.pem
- namespace private {
- separator = . prefix = INBOX. inbox = yes
}
- protocol lda {
- log_path = /home/vmail/dovecot-deliver.log auth_socket_path = /var/run/dovecot/auth-master postmaster_address = postmaster@example.com mail_plugins = sieve global_script_path = /home/vmail/globalsieverc
}
- protocol pop3 {
- pop3_uidl_format = %08Xu%08Xv
}
- auth default {
- user = root
- passdb sql {
- args = /etc/dovecot/dovecot-sql.conf
}
- userdb static {
- args = uid=5000 gid=5000 home=/home/vmail/%d/%n allow_all_users=yes
}
- socket listen {
}
- master {
- path = /var/run/dovecot/auth-master mode = 0600 user = vmail
- client {
- path = /var/spool/postfix/private/auth mode = 0660 user = postfix group = postfix
}
}
}
MySQL will be used to store password information, so /etc/dovecot/dovecot-sql.conf
must be edited. Issue the following command to make a backup copy of the existing file.
cp -a /etc/dovecot/dovecot-sql.conf /etc/dovecot/dovecot-sql.conf.bak
Replace the contents of the file with the following example, making sure to replace “main_admin_password” with your mail password.
1
/etc/dovecot/dovecot-sql.conf
driver = mysql connect = host=127.0.0.1 dbname=mail user=mail_admin password=mail_admin_password default_pass_scheme = CRYPT password_query = SELECT email as user, password FROM users WHERE email=’%u';
Dovecot has now been configured. You must restart it to make sure it is working properly:
service dovecot restart
Now check your /var/log/mail.log to make sure dovecot started without errors. Your log should have lines similar to the following:
1
/var/log/mail.log
Jun 13 17:01:58 li263-140 dovecot: Dovecot v1.2.15 starting up (core dumps disabled) Jun 13 17:01:58 li263-140 dovecot: auth-worker(default): mysql: Connected to 127.0.0.1 (mail)
Before testing dovecot, you must change the permissions on /etc/dovecot/dovecot.conf
to allow the vmail
user to access them:
chgrp vmail /etc/dovecot/dovecot.conf
chmod g+r /etc/dovecot/dovecot.conf
You can test your POP3 server to make sure it’s running properly by issuing the following command.
telnet localhost pop3
You should see output similar to the following in your terminal:
Trying 127.0.0.1...
Connected to localhost.localdomain.
Escape character is '^]'.
+OK Dovecot ready.
Enter the command “quit” to return to your shell. This completes the Dovecot configuration. Next, you’ll make sure aliases are configured properly.
Configure Mail Aliases
Edit the file /etc/aliases
, making sure the “postmaster” and “root” directives are set properly for your organization.
1
/etc/aliases
postmaster: root root: postmaster@example.com
After modifying this file, you must run the following commands to update aliases and restart Postfix:
newaliases
service postfix restart
This completes alias configuration. Next, you’ll test Postfix to make sure it’s operating properly.
Testing Postfix
To test Postfix for SMTP-AUTH and TLS, issue the following command:
telnet localhost 25
While connected to Postfix, issue the following command:
ehlo localhost
You should see output similar to the following, with the line “250-STARTTLS” included:
Trying 127.0.0.1...
Connected to localhost.localdomain.
Escape character is '^]'.
220 hostname.example.com ESMTP Postfix (Debian/GNU)
ehlo localhost
250-hostname.example.com
250-PIPELINING
250-SIZE 30720000
250-VRFY
250-ETRN
250-STARTTLS
250-AUTH PLAIN LOGIN
250-AUTH=PLAIN LOGIN
250-ENHANCEDSTATUSCODES
250-8BITMIME
250 DSN
Issue the command quit
to terminate the Postfix connection. Next, you’ll populate the MySQL database with domains and email users.
Setting up Domains and Users
Please note that you’ll need to modify the DNS records for any domains that you wish to handle email by adding an MX record that points to your mail server’s fully qualified domain name. If MX records already exist for a domain you would like to handle the email for, you’ll need to either delete them or set them to a larger priority number than your mail server. Smaller priority numbers indicate higher priority for mail delivery, with “0” being the highest priority.
We’ll use the MySQL shell to add support for the domain “example.com”, which will have an email account called “sales”. You should substitute one of your domains for “example.com” in these statements, along with a strong password for the “password” entry in the second SQL statement.
mysql -u root -p
USE mail;
INSERT INTO domains (domain) VALUES ('example.com');
INSERT INTO users (email, password) VALUES ('sales@example.com', ENCRYPT('password'));
quit
You’ll need to send a welcome message to new email accounts before they can be accessed via IMAP or POP3. This is because the mailboxes for new users won’t be created until an email is received for them. To send a welcome message from the command line, you may use the mailx
utility. Issue the following command to send the message.
mailx sales@example.com
Press Ctrl+D
to complete the message. You can safely leave the field for “CC:” blank. This completes the configuration for a new domain and email user.
Given the possibility for virtual hosting a large number of virtual domains on a single mail system, the username portion of an email address (i.e. before the @
sign) is not sufficient to authenticate to the mail server. When email users authenticate to the server, they must supply their email clients with the entire email address created above as their username.
Check Your Logs
After you have sent the test mail, you’ll want to check your error logs to make sure the mail was delivered. First check your mail.log
located in /var/log/mail.log
. You should see something similar to the following:
1
/var/log/mail.log
Jun 13 17:05:40 li263-140 postfix/cleanup[5435]: E7AA723FD2: message-id=<20110613210540.E7AA723FD2@hostname.example.com> Jun 13 17:05:40 li263-140 postfix/qmgr[5349]: E7AA723FD2: from=<root@hostname.example.com>, size=376, nrcpt=1 (queue active) Jun 13 17:05:41 li263-140 postfix/pipe[5439]: E7AA723FD2: to=<sales@example.com>, relay=dovecot, delay=0.24, delays=0.08/0.01/0/0.15, dsn=2.0.0, status=sent (delivered via dovecot service) Jun 13 17:05:41 li263-140 postfix/qmgr[5349]: E7AA723FD2: removed
Next you should check the Dovecot delivery log located in /home/vmail/dovecot-deliver.log
. The contents should look similar to the following:
1
/home/vmail/dovecot-deliver.log
2011-06-13 17:05:41 deliver(sales@example.com): Info: msgid=<20110613210540.E7AA723FD2@hostname.example.com>: saved mail to INBOX
Now you can test to see what the users of your email server would see with their email clients.
Test the Mailbox
To test the sales@example.com
mail box, navigate to the mailbox directory /home/vmail/example.com/sales/Maildir
and type the following command:
find
You should see output similar to the following:
.
./dovecot.index.log
./dovecot-uidvalidity
./cur
./tmp
./dovecot-uidvalidity.4df67ba5
./new
./new/1307999141.M4912P5440.hostname,S=452,W=464
./dovecot-uidlist
Now you can test using a mail client. When configuring your local email client, use the full email address for the mailbox you wish to connect to as the username. You may use mutt
for this test. It is not installed by default so you may need to install it (apt-get install mutt
). Type the following command to view user’s mail:
mutt -f .
You may be prompted to create the root mailbox. This is not required. If you see an e-mail in the inbox, you’ve successfully configured Postfix, Dovecot, and MySQL to provide email services for virtual domains and users on your Linode. Please consult the “More Information” section for additional resources that may prove useful in the administration of your new email server.
More Information
You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.
This page was originally published on
