Configure HTTP/2 on NGINX
Traducciones al EspañolEstamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
HTTP/2 updates the original Hypertext Transfer Protocol (HTTP) specification to offer improvements in efficiency and latency. The new version includes several other new features while maintaining compatibility with older browsers. Due to the clear advantages of HTTP/2, web servers should be upgraded to use the new version. This guide explains how to configure, use, and test HTTP/2 with an NGINX server. For a deep-dive into the HTTP/2 protocol see our An Introduction to HTTP/2 guide.
Before You Begin
Familiarize yourself with Linode’s Getting Started with Linode guide and complete the steps for setting your Linode’s hostname and timezone.
This guide uses
sudowherever possible. Complete the sections of Linode’s How to Secure Your Server to create a standard user account, harden SSH access and remove unnecessary network services. Do not follow the Configure a Firewall section yet as this guide includes firewall rules specifically for an OpenVPN server.
Update your system:
sudo apt-get update && sudo apt-get upgrade
Ensure you possess a Fully Qualified Domain Name (FQDN) for the website. The DNS records for the site must point to the Linode server.
NoteThe steps in this guide are written for non-root users. Commands that require elevated privileges are prefixed with
sudo. If you are not familiar with the
sudocommand, see the Linux Users and Groups guide.
A Summary of the NGINX and HTTP/2 Configuration Process
The following high-level steps are necessary to configure HTTP/2 on NGINX. These instructions are designed for Ubuntu but are generally applicable for all Linux distributions.
- Install NGINX.
- Enable HTTPS Using Certbot and Let’s Encrypt Certificates.
- Configure NGINX for HTTP/2 Support.
The following instructions install the NGINX environment required to support HTTP/2 and encryption. If NGINX is already installed, skip this section and proceed to the Enable HTTPS Using Certbot and Let’s Encrypt Certificates step. For more information about NGINX, consult the Linode’s How to Configure NGINX guide.
Update the system packages to pick up the newest version of NGINX. Reboot the system if advised to do so.
sudo apt-get update sudo apt-get upgrade
Install the basic
sudo apt install nginx
systemctlto verify NGINX is
systemctl status nginx
nginx.service - A high performance web server and a reverse proxy server Loaded: loaded (/lib/systemd/system/nginx.service; enabled; vendor preset: enabled) Active: active (running) since Tue 2021-05-04 21:01:15 UTC; 7s ago
(Optional) NGINX is configured to activate whenever the system boots. To change this behavior, disable it in
systemctl disable nginx
ufwfirewall to deny unauthorized access attempts. Allow both
Nginx Full. This permits access for all versions of HTTP and HTTPS.
sudo ufw allow OpenSSH sudo ufw allow 'Nginx Full'
Enable the firewall.
sudo ufw enable
NoteYou should configure a location block for the domain. This structure is mandatory if there is more than one domain on the Linode. See Linode’s How to Configure NGINX guide for complete instructions.
Enable HTTPS Using Certbot and Let’s Encrypt Certificates
Most clients only support HTTP/2 if encryption is used, so HTTPS must be enabled before HTTP/2 is configured. HTTPS allows authentication and ensures all data is transmitted privately. Your website must possess a public key certificate signed by a trusted certificate authority to accept HTTPS requests. This certificate ensures you actually host and operate the site.
The Let’s Encrypt service grants certificates on demand. The popular Certbot open-source tool automates and simplifies the process of generating these certificates. It identifies all of the relevant domains, manages the challenge requests, and installs the certificates. It also makes the necessary changes to the NGINX configuration files.
Certbot can be installed using the
snap utility, which is pre-installed on Ubuntu.
Run the following commands to update Snap and verify the current version. If necessary, install it first using the command
sudo apt install snapd.
sudo snap install core sudo snap refresh core snap version
Remove any pre-existing Certbot packages to avoid possible conflicts.
sudo apt-get remove certbot
sudo snap install --classic certbot
certbot 1.12.0 from Certbot Project (certbot-eff) installed
Configure a soft link to the Certbot directory.
sudo ln -s /snap/bin/certbot /usr/bin/certbot
Use Certbot to generate certificates for each domain. You can create multiple certificates with one command by specifying the
-doption in front of each domain. Substitute your own domain name in place of
example.comthroughout the following section.
sudo certbot --nginx -d example.com -d www.example.com
Certbot provides updates about the requests and challenges, and indicates which certificates were installed. You must supply some additional information if you have never used Certbot before. The messages could differ somewhat depending on the configuration.
Requesting a certificate for example.com and www.example.com ... Deploying Certificate to VirtualHost /etc/nginx/sites-enabled/example.com Deploying Certificate to VirtualHost /etc/nginx/sites-enabled/example.com Redirecting all traffic on port 80 to ssl in /etc/nginx/sites-enabled/example.com Redirecting all traffic on port 80 to ssl in /etc/nginx/sites-enabled/example.com - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Congratulations! You have successfully enabled <https://example.com> and <https://www.example.com> - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ...
Configure NGINX for HTTP/2 Support
To enable HTTP/2 support on NGINX, edit the
server block for the domain. This is typically found in the domain’s virtual host file, which is located at
/etc/nginx/sites-available/yourdomain.com. However, if there is only one domain on the Linode, the block might be configured inside the
Edit the file containing the server block for the domain. Append the
http2keyword to the
listendirectives for both Ipv4 (
443) and Ipv6 (
[::]:443), and add the line
ssl_protocols TLSv1.2;. Follow the example shown below.
- File: /etc/nginx/sites-available/example.com
1 2 3 4 5
listen [::]:443 ssl http2 ipv6only=on; # managed by Certbot listen 443 ssl http2; # managed by Certbot ... ssl_protocols TLSv1.2;
Save the file and validate the NGINX syntax using the following command.
sudo nginx -t
Restart the webserver to apply the changes.
sudo systemctl restart nginx
Verify NGINX is active using
sudo systemctl status nginx
Verify that HTTP/2 Support is Working
To confirm HTTP/2 is operating properly, visit the website and inspect the HTTP data using the browser’s web development tools. The following instructions describe how to use the Firefox tools. However, each browser offers a similar tool. Consult the browser documentation for more details.
Visit the website using Firefox.
Open the Firefox Developer Tools. Select the Tools menu, the Browser Tools submenu, and the Web Developer Tools option. This opens the
toolspanel at the bottom of the browser

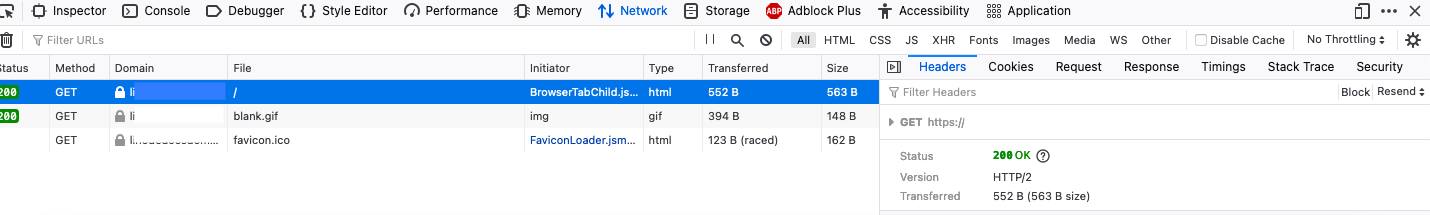

Select the Network tab, and reload the web page.
A list of several rows is displayed in the panel. Click on the row corresponding to the base domain. This reveals a new table on the right-hand side of the panel. Within this table, the Headers tab is preselected.
Review the information listed under the Headers tab. If HTTP/2 is working, the
HTTP/2. If the version is still
HTTP 1, review the previous instructions and ensure HTTP/2 is properly configured.
