How to Install and Configure iRedMail
- Deprecated guides:
- Ubuntu 14.04
Traducciones al EspañolEstamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
iRedMail is a free open-source email server application. It is a self-administered and controlled alternative to cloud-based mail applications. Self-hosted mail servers have the advantage of being completely private and free of corporate interference. iRedMail is relatively lightweight and easy to install and use compared to other mail servers. This guide explains how to install, configure, and use the iRedMail mail server. It also provides an overview of the Domain Name System (DNS) records required to properly operate the server and send/receive email.
What is iRedMail?
iRedMail is a free self-contained mail server solution for most Linux platforms. It is installed and configured using a straightforward installation program. iRedMail combines several open-source applications into a single package, including Postfix, Dovecot, and NGINX. As a self-managed mail solution, it allows administrators to manage storage space, view logs, choose the backup schedule, and select a domain name. For added flexibility, it offers a choice of databases and web servers. iRedMail prioritizes privacy and security and enforces the use of encryption.
iRedMail includes the following features and enhancements:
- Unlimited accounts and users, subject to server storage limitations.
- The ability to add optional extensions at installation time, including webmail, calendars, address books, and spam detection.
- The availability of an easy-to-use web administration panel for creating accounts and users and configuring the server.
- The ability to choose between the OpenLDAP, MySQL, MariaDB, or PostgreSQL databases to store the data.
- Antispam and antivirus programs, such as SpamAssassin and ClamAV, are included. Potential spam can be quarantined for later inspection and block and allow lists can be configured.
- Professional tech support is available, along with the paid RedAdmin-Pro edition, which contains more features.
Before You Begin
If you have not already done so, create a Linode account and Compute Instance. See our Getting Started with Linode and Creating a Compute Instance guides.
Follow our Setting Up and Securing a Compute Instance guide to update your system. You may also wish to set the timezone, configure your hostname, create a limited user account, and harden SSH access.
Ensure you have created DNS records for both the main domain and the
mail
subdomain, for instance,mail.example.com
. Point themail
subdomain at the Linode hosting the mail server. For more information on domains and how to create a DNS record, see the Linode DNS Manager guide .A Linode can only send and receive emails if TCP port 25 is enabled. This is the well-known port for Simple Mail Transfer Protocol (SMTP). iRedMail sends outgoing emails and listens for incoming mail on this port. Contact Linode support to determine whether this port is restricted on your server.
iRedMail requires at least 4 GB of RAM, but high-volume production servers require even more. Ensure enough storage is available for the number of users and storage policies you intend to support. For best results, install iRedMail on a fresh server with no other components or configuration. Otherwise, conflicts might occur. Ensure the user and group IDs
2000
,2001
, and2002
are not in use.
sudo
. If you are not familiar with the sudo
command, see the Linux Users and Groups
guide.How to Install iRedMail
These instructions are geared toward Ubuntu 22.04 LTS users but are generally applicable to all Linux distributions. All necessary components, including a web server and database, are installed alongside iRedMail. The installation script allows users to select which optional components to install.
To install iRedMail, first download the executable, then run the installation script. Follow the instructions in this section to complete the installation.
How to Download iRedMail and Pre-configure the Server
Ensure the system is up to date.
sudo apt update -y && sudo apt upgrade -y
Set the system hostname using the
hostnamectl
command. The hostname must match the name of themail
subdomain, for instance,mail.example.com
.Note The old hostname remains visible inside the current session. To see the updated name, exit the current session and log in again. To view the current hostname independent of any session details, run the commandhostname -f
.sudo hostnamectl set-hostname mail.example.com
Add the
mail
subdomain to the/etc/hosts
file. Themail
domain entry must be the first entry in the file. It must reference the127.0.0.1
loopback address as shown in this example. Remove any other references to the127.0.0.1
address. Changeexample.com
to the actual domain name.sudo vi /etc/hosts
- File: /etc/hosts
1 2
127.0.0.1 mail.example.com localhost ...
Install some additional utilities required by the iRedMail installation script. These programs might already be installed as part of the default Ubuntu package.
sudo apt install gzip dialog
Visit the iRedMail downloads page to determine the latest stable release. The release number is shown inside a green box near the top of this page.
Download the archive for the intended release from GitHub. In the following example, replace
1.6.2
with the actual release number. For example, to download release1.6.1
, use the addresshttps://github.com/iredmail/iRedMail/archive/refs/tags/1.6.1.tar.gz
.Note Download the archive to a suitable location, for example, a new subdirectory in the user’s home directory.wget https://github.com/iredmail/iRedMail/archive/refs/tags/1.6.2.tar.gz
Use the
tar
command to extract the file.tar xvf 1.6.2.tar.gz
Change to the new directory containing the extracted files.
cd iRedMail-1.6.2
Change the permissions for the
iRedMail.sh
installation script. At this point, the system is ready to run the script.chmod +x iRedMail.sh
How to Run the iRedMail Installation Script
To install iRedMail, use the iRedMail.sh
script. This script walks users through the iRedMail installation and prompts for certain information. Most times, the default option is adequate. iRedMail allows users to decide what database to use and what extensions to install.
To run the iRedMail installation script and configure iRedMail, follow these steps.
While still inside the
iRedMail-1.6.2
directory, launch the iRedMail installation script.sudo bash iRedMail.sh

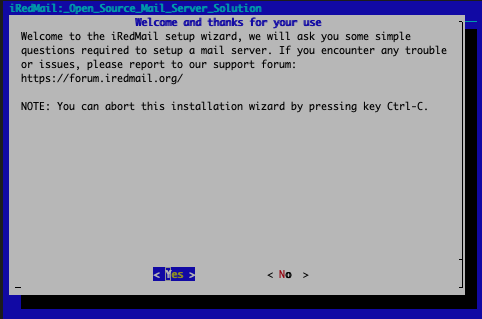

After installing additional repositories, iRedMail displays the welcome screen. Enter
Yes

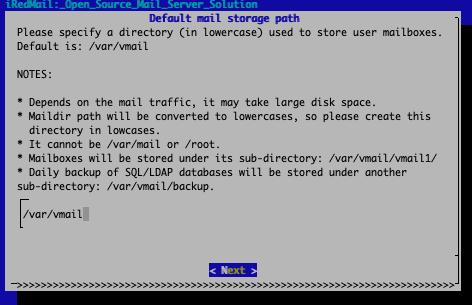

to proceed.Select a directory to store the mail server data. The default
/var/vmail
directory is adequate for most users. EnterNext

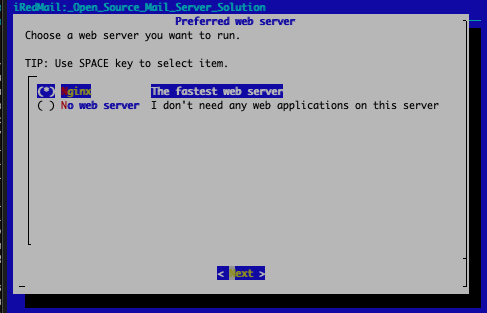

to continue.Choose whether or not to use the NGINX web server. This option is recommended for most installations. Select
Next
to continue.iRedMail offers a choice between three database systems. Select the database you are most familiar with. For most users, this is
MariaDB
, which is also the easiest to use. Use the up and down arrows to move between options and the space bar to select the highlighted entry. This guide uses MariaDB as the iRedMail database. After making a decision, clickNext

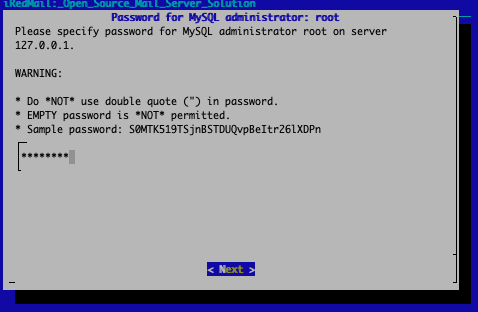

.Enter a password for the database, then select
Next

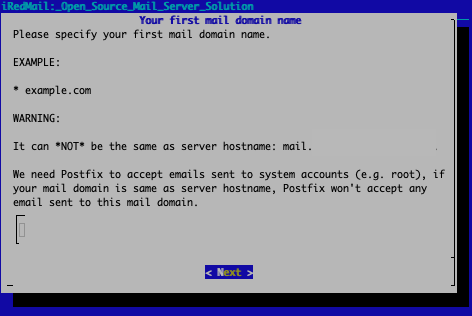

to continue.Now enter the domain for the main server. This is the root level domain name without the
mail
prefix. In other words, if the mail server ismail.example.com
, enterexample.com

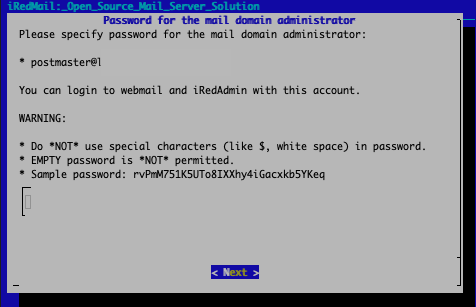

for the domain.Enter a password for the server administrator to use. Store this password in a secure location. It is required to access the iRedMail administrator screens later on.

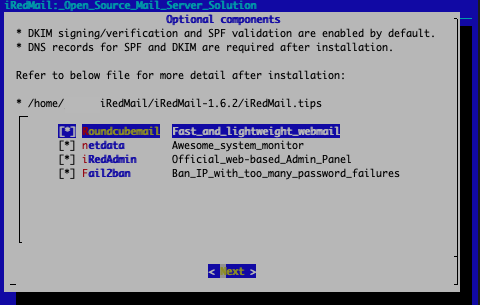

Choose the optional components to install.
iRedAdmin
is extremely useful and should be selected.Roundcubemail
is an easy-to-use web client and is highly recommended. The other two components are completely optional. The installation script displays the name of a file containing more details. Make a note of the filename and location.The script summarizes the installation parameters and asks whether to continue. Enter
y
to proceed with the installation.************************************************************************* ********************** Review your settings ***************************** ************************************************************************* * Storage base directory: /var/vmail * Mailboxes: * Daily backup of SQL/LDAP databases: * Store mail accounts in: MariaDB * Web server: Nginx * First mail domain name: example.com * Mail domain admin: postmaster@example.com * Additional components: Roundcubemail netdata iRedAdmin Fail2ban < Question > Continue? [y|N]
After the process is complete, the script confirms the installation status. It also asks whether to apply its firewall. Enter
Y
to proceed, then enterY
again to restart the firewall.************************************************************************ * iRedMail-1.6.2 installation and configuration complete. ************************************************************************* < Question > Would you like to use firewall rules provided by iRedMail? < Question > File: /etc/nftables.conf, with SSHD ports: 22. [Y|n] [ INFO ] Copy firewall sample rules. < Question > Restart firewall now (with ssh ports: 22)? [y|N]y
The script displays some additional information, including the location of important files and account information. Store this information in a secure location.
******************************************************************** * URLs of installed web applications: * * - Roundcube webmail: https://mail.example.com/mail/ * - netdata (monitor): https://mail.example.com/netdata/ * * - Web admin panel (iRedAdmin): https://mail.example.com/iredadmin/ * * You can login to above links with below credential: * * - Username: postmaster@example.com * - Password: password * * ******************************************************************** * Congratulations, mail server setup completed successfully. Please * read below file for more information: * * - /home/userid/iRedMail/iRedMail-1.6.2/iRedMail.tips * * And it's sent to your mail account postmaster@example.com. * ********************* WARNING ************************************** * * Please reboot your system to enable all mail services. * ********************************************************************
Reboot the server to apply the changes and launch iRedMail.
sudo restart -r now
How to Enable HTTPS on iRedMail
The iRedMail administration panel is now accessible, but any attempt to use it results in a security warning. This is because the server does not yet support HTTPS.
To activate this protocol, first, install a TLS certificate. Let’s Encrypt provides a free certificate service that is easy to use. To install the certificate, use the Certbot application to automate the granting process. For more information about Certbot, Let’s Encrypt certificates, and HTTPS, review the Linode guide to Using Certbot on NGINX .
To enable HTTPS on the server, follow these steps.
Install the Snap package manager.
sudo apt install snapd sudo snap install core
Remove any existing
certbot
packages to avoid conflicts. Usesnap
to install thecertbot
package. Create a symbolic link to thecertbot
directory.sudo apt remove certbot sudo snap install --classic certbot sudo ln -s /snap/bin/certbot /usr/bin/certbot
Use
certbot
to install a certificate for the domain, appending thecertonly
option. This tells Certbot to grant the certificate without editing any of the configuration files. In the following command, replaceexample.com
with the name of the mail server domain. During the process, the script prompts for an administrative email address. Certbot confirms a successful installation and displays the path to the certificate and key.sudo certbot certonly --webroot --agree-tos -w /var/www/html -d mail.example.com
Requesting a certificate for mail.example.com Successfully received certificate. Certificate is saved at: /etc/letsencrypt/live/mail.example.com/fullchain.pem Key is saved at: /etc/letsencrypt/live/mail.example.com/privkey.pem This certificate expires on 2023-05-23. These files will be updated when the certificate renews.
Although the certificate has been granted, the web server is not yet able to use it. To install the certificate and key, edit the NGINX configuration files. Open the
/etc/nginx/templates/ssl.tmpl
file and update two values. Changessl_certificate
to/etc/letsencrypt/live/mail.example.com/fullchain.pem;
andssl_certificate_key
to/etc/letsencrypt/live/mail.example.com/privkey.pem;
. Replacemail.example.com
in the following example with the actual mail server domain.sudo vi /etc/nginx/templates/ssl.tmpl
- File: /etc/nginx/templates/ssl.tmpl
1 2 3
ssl_certificate /etc/letsencrypt/live/mail.example.com/fullchain.pem; ssl_certificate_key /etc/letsencrypt/live/mail.example.com/privkey.pem; ...
Test and reload the NGINX configuration. The iRedMail administration panel at
https://mail.example.com/iredadmin/
should not display any more security warnings.sudo nginx -t sudo systemctl reload nginx
Edit the configuration file for the Postfix SMTP server to avoid security errors. Edit the file at
/etc/postfix/main.cf
, changing the values ofsmtpd_tls_key_file
,smtpd_tls_cert_file
, andsmtpd_tls_CAfile
to those shown below. Replaceexample.com
with the name of the mail domain.sudo vi /etc/postfix/main.cf
- File: /etc/postfix/main.cf
1 2 3 4 5
smtpd_tls_key_file = /etc/letsencrypt/live/mail.example.com/privkey.pem smtpd_tls_cert_file = /etc/letsencrypt/live/mail.example.com/cert.pem smtpd_tls_CAfile = /etc/letsencrypt/live/mail.example.com/chain.pem smtpd_tls_CApath = /etc/letsencrypt/live/mail.example.com/ ...
Reload Postfix.
sudo systemctl reload postfix
The Dovecot IMAP server requires similar changes. Edit the main Dovecot configuration file at
/etc/dovecot/dovecot.conf
. Change the values forssl_cert
andssl_key
to align them with the values shown in the following sample file.sudo vi /etc/dovecot/dovecot.conf
- File: /etc/dovecot/dovecot.conf
1 2 3
ssl_cert = </etc/letsencrypt/live/mail.example.com/fullchain.pem ssl_key = </etc/letsencrypt/live/mail.example.com/privkey.pem ...
Restart the Dovecot process.
sudo systemctl reload dovecot
How to Configure the DNS Records for iRedMail
Several DNS records must be added before the main server can send and receive mail. These records allow other servers to find and verify the new server. To configure the full complement of mandatory and optional DNS records, follow these instructions.
Create an
A
record for themail
subdomain. For theexample.com
domain, this subdomain ismail.example.com
. Set the IP address to point to the IPv4 address of the Linode hosting iRedMail. To use IPv6 addressing, create a differentAAAA
record and point it toward the IPv6 address of the system.Note Always create an IPv4A
record even if using IPv6. Not all mail servers can use IPv6 addressing.Create a

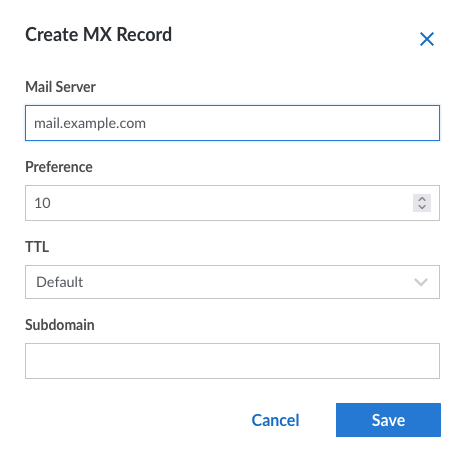

MX
record. This record defines the mail server for a particular domain. Other mail servers query these records to determine how to route the mail. In the Linode domain manager, create aMX
record for the domain. Set the value of theMail Server
tomail.example.com
, substituting the actual domain name forexample.com
. Leave theTTL
andPreference
values at the default settings. Leave theSubdomain
value blank.Create a PTR Record. This is also known as a reverse DNS (RDNS) lookup. It indicates the fully qualified domain name associated with an IP address. Many servers are reluctant to forward mail to an IP address without an associated PTR record. To create an RDNS entry, visit the Network tab for the Linode server and select Edit RDNS. Change the value to the
mail
domain. For information, see the Linode guide on How to Configure rDNS .In the Linode DNS Manager, add an SPF Record for the mail domain. An SPF record is a type of TXT domain record. It defines the hosts in the domain which are allowed to send mail. Enter the domain for the
Hostname
andv=spf1 mx ~all
for theValue
.Using the Linode DNS Manager, create a DKIM Record. This record verifies the digital signature of any emails sent from the server. It ensures an email is valid, uncorrupted, and sent by the purported mail server. iRedMail creates the DKIM key at installation time. To retrieve the key, use the following command.
sudo amavisd-new showkeys
; key#1 2048 bits, s=dkim, d=example.com, /var/lib/dkim/www.example.com.pem dkim._domainkey.www.example.com. 3600 TXT ( "v=DKIM1; p=" "MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEApd+cXfw0JZu2+BQiZUkK" "yNU4CL786IXArOFIJSCrzxOFNPGbGXERc/o5U+VJ4buZYvjN1YO1tljMCbV56tUu" "7NmaX/fuE6j/JZLaUg7ICJ3cwOaW3EdIkAFMEp0Z+0IWAkThL4/nKILzfrHm10ao" "FUHzvN+5O8mn+874VgPUi0WPRa+BZWZASbWFEVBtXfaLcG7Yw3ylt2VZp3kZHkWM" "cdOjaNxGqYsyHIzPiRMLw9Bk5HMDVbJ4KG381+0ERjAi8/aTQ5VGujgAI/Q9FVaR" "qCv9dB+5unTnqdogB+ddh3wSaNryuFSHzjXUuR0Pu9dPjmznUGS/tno0tgEaKDcB" "0QIDAQAB")

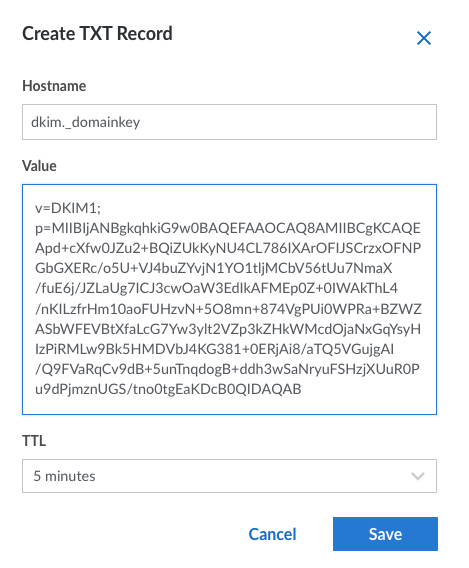

Add a TXT record to serve as the DKIM entry in the Linode DNS Manager. The name of the key must be
dkim._domainkey
. TheValue
is the text in parentheses, starting withv=DKIM1; p=
. Remove all line breaks and all quotes from the string, as shown in this image.Test whether the DKIM record is configured correctly using the command
sudo amavisd-new testkeys
. The result should indicatepass
.sudo amavisd-new testkeys
TESTING#1 example.com: dkim._domainkey.example.com => pass

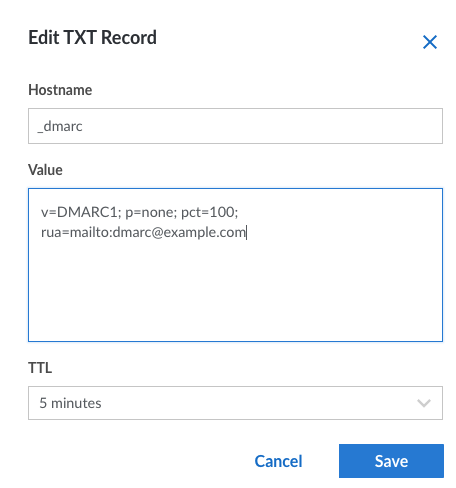

Create a DMARC record, which stands for Domain-based Message Authentication, Reporting and Conformance. To create a DMARC record, create a TXT record for the account. The
Hostname
must be_dmarc.example.com
, while theValue
should bev=DMARC1; p=none; pct=100; rua=mailto:dmarc@example.com
. Replaceexample.com
with the domain name.Note It might take a few hours or even a day for all records to propagate across the internet. If the initial tests in the next section are not successful, try again later. For more information on setting up the DNS records, see the iRedMail DNS instructions .
How to Use iRedMail
iRedMail is straightforward to use. The iRedMail tutorials and documentation explain how to use the server. To test the server, first, create a user. Then log in as the same user and send a test email.
To further configure and use iRedMail, follow these instructions.

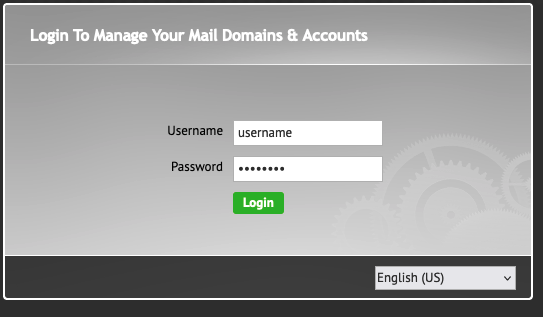

Log in to the iRedMail administration panel at
https://mail.example.com/iredadmin/
using the administratorusername
andpassword
. In the URL, replaceexample.com

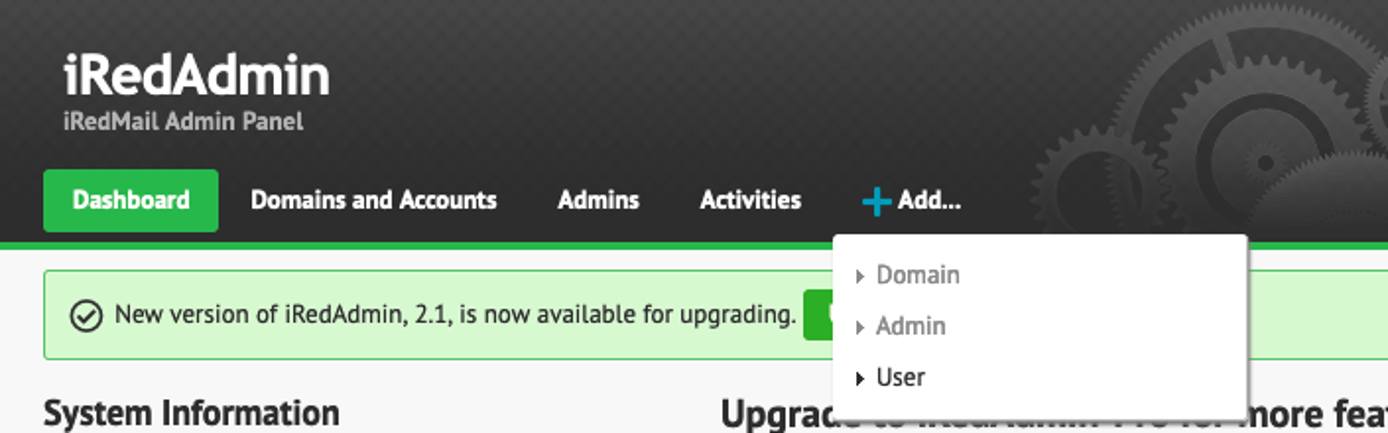

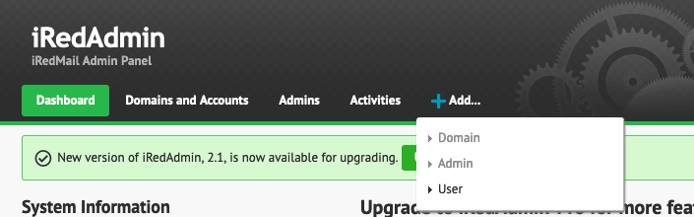

with the actual domain name.Click on the +Add button to add a new user.

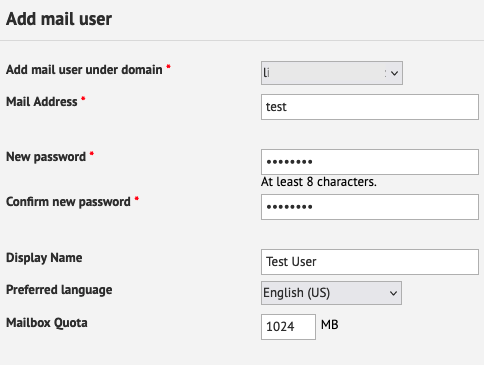

On the
Add Mail User

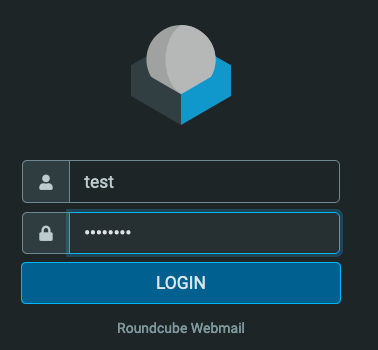

page, enter a mail address, password, and display name for the user.Using a new browser tab, access the webmail login page at
https://mail.example.com/mail/
, replacingexample.com
with the actualmail
domain name. Enter the full user name including the domain name, for example,test@example.com

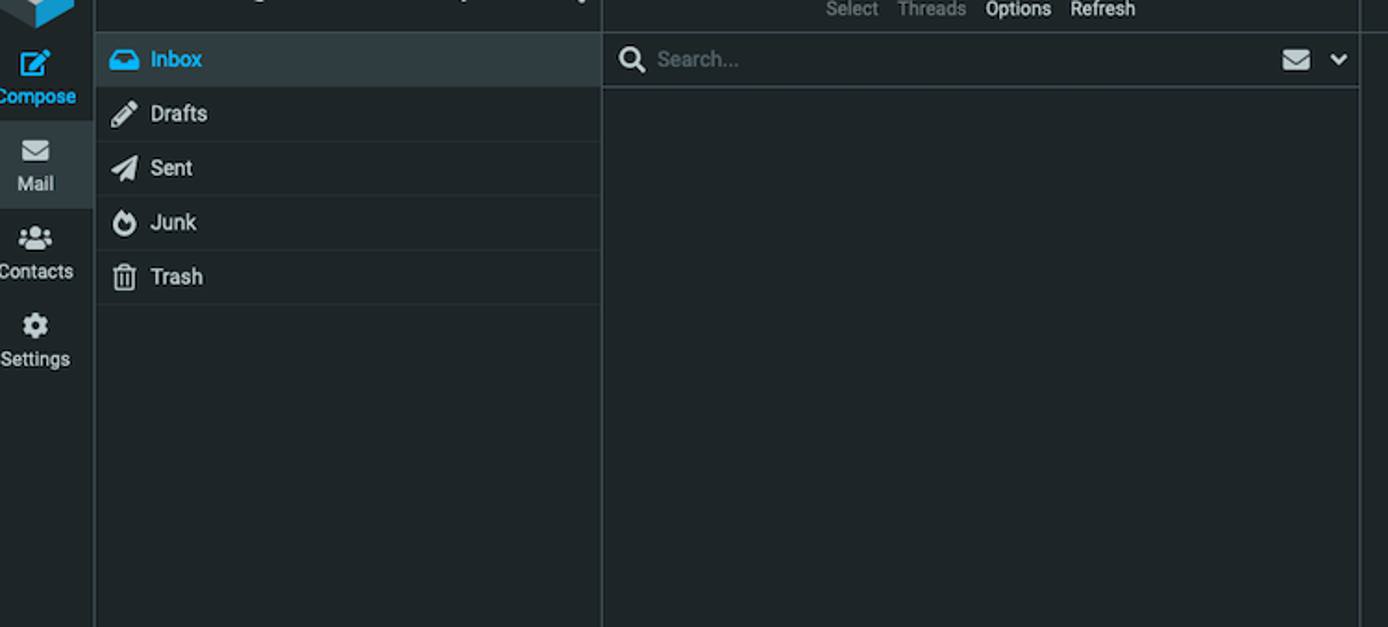

, along with the user password.iRedMail now displays the user dashboard. From here, it is possible to send an email and test the application. Click the Compose button on the left-hand menu and complete the email. To validate the domain records, try sending a test email to Mail Tester .
Conclusion
iRedMail is a flexible, easy-to-use, open source mail server program. It includes many useful features and extensions and attempts to maximize security and privacy. To install iRedMail, download the relevant release and use the installation script to configure the application. iRedMail includes a straightforward web administration panel and a handy webmail interface for users. To ensure iRedMail operates properly, configure a number of DNS entries and a reverse DNS record. For more information on iRedMail, see the iRedMail user documentation .
More Information
You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.
