How to Install and Configure Redmine on Ubuntu 16.04

Traducciones al Español
Estamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
Create a Linode account to try this guide with a $ credit.
This credit will be applied to any valid services used during your first  days.

What is Redmine?

Redmine is a project management web app that allows users to manage projects flexibly while offering robust tracking tools and an extensive library of plug-ins. This free and open source solution offers an alternative to paid project management tools and includes support for wikis, forums, calendars, and data visualization tools.

This guide will show you how to install and set up Redmine on Ubuntu 16.04 through the Passenger application server connected to NGINX.

Before You Begin

The steps in this guide require root privileges. Be sure to run the steps below as root or with the sudo prefix. For more information on privileges, see our Users and Groups guide.

Install Dependencies

sudo apt install build-essential mysql-server ruby ruby-dev libmysqlclient-dev imagemagick libmagickwand-dev

Configure MySQL

MySQL needs to be configured so that Redmine can store data. You can log in to the root account of your database using the password that you set when you installed mysql-server.

 mysql -u root -p
  1. After logging in, create a new database and database user:

    CREATE DATABASE redmine;
    CREATE USER 'redmine'@'localhost' IDENTIFIED BY 'password';
    GRANT ALL PRIVILEGES ON redmine.* TO 'redmine'@'localhost';

Install Ruby

Redmine requires Ruby to run. Use the Ruby Version Manager (RVM) to install Ruby 2.2.3.

  1. Curl the latest version of RVM.

    gpg --keyserver hkp:// --recv-keys 409B6B1796C275462A1703113804BB82D39DC0E3
    curl -sSL | bash -s stable
    source ~/.rvm/scripts/rvm
  2. Users of RVM must be in the rvm group. Create this group, add a user, log out, and log back in:

    sudo groupadd rvm
    sudo usermod -a -G rvm username
  3. Check the requirements for the install, and install Ruby (version 2.2.3):

    rvm requirements
    rvm install 2.2.3
    rvm use 2.2.3 --default

Install Passenger and NGINX

Passenger is an application server that runs your web application then communicates with the web server. The project has well-written documentation on installing Passenger and NGINX on Ubuntu 16.04 with an apt repository.

  1. Install the Passenger PGP key and HTTPS support for the package manager:

    sudo apt install -y dirmngr gnupg
    sudo apt-key adv --keyserver hkp:// --recv-keys 561F9B9CAC40B2F7
    sudo apt install -y apt-transport-https ca-certificates
  2. Add the Passenger APT repository:

    sudo sh -c 'echo deb xenial main > /etc/apt/sources.list.d/passenger.list'
    sudo apt update
  3. Install Passenger and NGINX

    sudo apt install -y nginx-extras passenger

Configure NGINX

Passenger has now installed NGINX with Passenger compiled in. You have to configure NGINX to make sure it uses Passenger correctly:

  1. Uncomment the include /etc/nginx/passenger.conf; line in /etc/nginx/nginx.conf. Edit your config file to resemble the one below:

    File: /etc/nginx/nginx.conf
    # Phusion Passenger config
    # Uncomment it if you installed passenger or passenger-enterprise
    include /etc/nginx/passenger.conf;
    # Virtual Host Configs
    include /etc/nginx/conf.d/*.conf;
  2. Copy the default nginx site configuration file. The working configuration file in this guide will be /etc/nginx/sites-available/default:

    cp /etc/nginx/sites-available/default /etc/nginx/sites-available/default.orig
  3. Change the root directory for the website, and add additional Passenger configurations. To do this, add these lines to the server{} block of the file:

    File: /etc/nginx/sites-available/default
    root /data/redmine/redmine/public;
    passenger_enabled on;
    client_max_body_size 10m;
  4. In the same file, comment out the #location section:

    File: /etc/ningx/site-available/default
    #location / {
    # First attempt to serve request as file, then
    # as directory, then fall back to displaying a 404.
        #try_files $uri $uri/ =404;
  5. Change the permissions for /var/www:

    sudo mkdir /var/www
    sudo chown -R www-data /var/www
  6. Restart nginx:

    sudo systemctl restart nginx
  7. Validate the installation of Passenger and NGINX:

    sudo /usr/bin/passenger-config validate-install

    Press enter when the first option is selected:

     If the menu doesn't display correctly, press '!'
    ‣ ⬢  Passenger itself
      ⬡  Apache
    * Checking whether this Passenger install is in PATH... ✓
    * Checking whether there are no other Passenger installations... ✓
    Everything looks good. :-()
  8. Finally, check if NGINX has started the Passenger core process:

    sudo /usr/sbin/passenger-memory-stats

    If Passenger was installed with NGINX correctly, your output should resemble:

    --------- NGINX processes ----------
    PID   PPID  VMSize    Private  Name
    6399  1     174.9 MB  0.6 MB   nginx: master process /usr/sbin/nginx -g daemon on; master_process on;
    6404  6399  174.9 MB  0.7 MB   nginx: worker process
    ### Processes: 2
    ### Total private dirty RSS: 1.23 MB
    ---- Passenger processes -----
    PID   VMSize    Private  Name
    6379  441.3 MB  1.2 MB   Passenger watchdog
    6382  660.4 MB  2.9 MB   Passenger core
    6388  449.5 MB  1.4 MB   Passenger ust-router
    ### Processes: 3

Install Redmine

  1. Create a redmine user and add the new user to the sudo group:

     sudo adduser --system --shell /bin/bash --gecos 'Redmine Administrator' --group --home /data/redmine redmine; sudo usermod -a -G rvm redmine
     sudo adduser redmine sudo
  2. Log in as the redmine user:

    su -
    passwd redmine
    su redmine
  3. Download the Redmine tarball as the new user. Extract it and rename the directory to redmine for convenience:

    tar -zxvf redmine-3.4.4.tar.gz
    mv redmine-3.4.4 redmine
  4. Add the database information created earlier to Redmine’s config file. Only complete the section marked “Production,” as you will not be using the development or test environments.

     cd redmine
     cp -pR config/database.yml.example config/database.yml
     emacs config/database.yml
  5. In the redmine directory, install the Ruby dependencies:

     sudo gem install bundler
     sudo bundle install --without development test
  6. After the installation finishes, you need to use Rake to start the server:

     bundle exec rake generate_secret_token
     RAILS_ENV=production bundle exec rake db:migrate
     RAILS_ENV=production bundle exec rake redmine:load_default_data

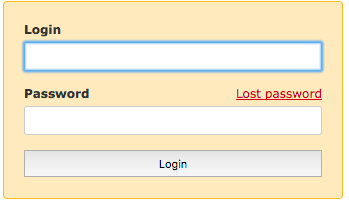

  7. Restart NGINX, and navigate to your server’s IP address and you will be greeted by the Redmine application:

     sudo systemctl restart nginx



The default login and password for Redmine are:

 Login: admin
 Password: admin

After logging in for the first time, you will be prompted to change your credentials. Replace them with something secure.

Install a Plug-in

Redmine is built to be used with plug-ins. Plug-ins are installed to redmine/plugins. This section will demonstrate installing a plug-in by installing scrum2b, a plug-in for managing a Scrum/Agile workflow.

If not installed, install git or download the plug-in directly through the Github website:

sudo apt install git
  1. Move to redmine/plugins and clone the plug-in:

     cd plugins
     git clone
  2. Use Bundle to install the plug-in, then restart NGINX:

     bundle install
     sudo systemctl restart nginx

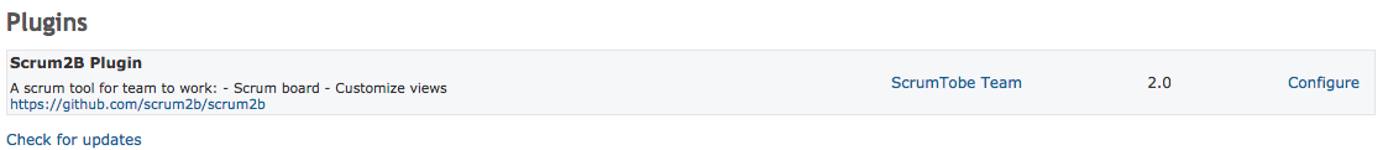

  3. Navigate to Redmine in your browser. Log in, click admin then click plugins

Next Steps

You now have a working Redmine setup on your Linode. If you plan on using it in production, explore plug-ins that will be useful for your team. Take a look at some of the guides below to customize Redmine for your team.
