Chef is a free and open source Infrastructure as Code (IaC) application. It’s a configuration management system that allows administrators to provision and manage infrastructure using automation. A complete Chef workflow includes one or more Chef Workstations, a Chef Server, and a set of nodes. This guide provides some background on how Chef works, and explains how to install and configure Chef on Ubuntu 20.04.

What is Chef?

Chef is a IaC application for automating and streamlining the process of provisioning, configuring, deploying, and managing network nodes. It allows for continuous deployment and an automated environment. Chef can manage many types of components including servers, containers, and networking infrastructure.

Chef operates using a hub-and-spoke architecture, with the master Chef Server at the center. One or more Chef Workstations interact with the Server, which automates the configuration of one or more Chef nodes. Configuration assets move from the workstation to the server and finally to the nodes. Workstations cannot interact with the nodes directly. The Chef infrastructure consists of the following components.

  • Chef Workstation: A workstation is a server for creating and testing configuration code. The code is then pushed to the Chef Server. Several workstations can interact with the same server, but each workstation only links to one server. The Chef Workstation documentation contains more information on how to use the workstation.
  • Chef Server: The Chef Server is the “command center” for the entire system. It stores and maintains all the configuration files, code, and scripts. A Chef Server includes many components, including a web server and PostgreSQL database. It is responsible for pushing the relevant assets to the various nodes and keeping track of the nodes under its management. Each server is highly capable, efficient, and robust, and is capable of managing a large number of nodes.
  • Chef Node: The Chef Server deploys and manages a node using assets developed on the Chef Workstation. Each node is administered by a single Chef Server. Although it is dependent on the server, a Chef Node contains a Chef client. The client queries the server for updates and keeps the node up to date.

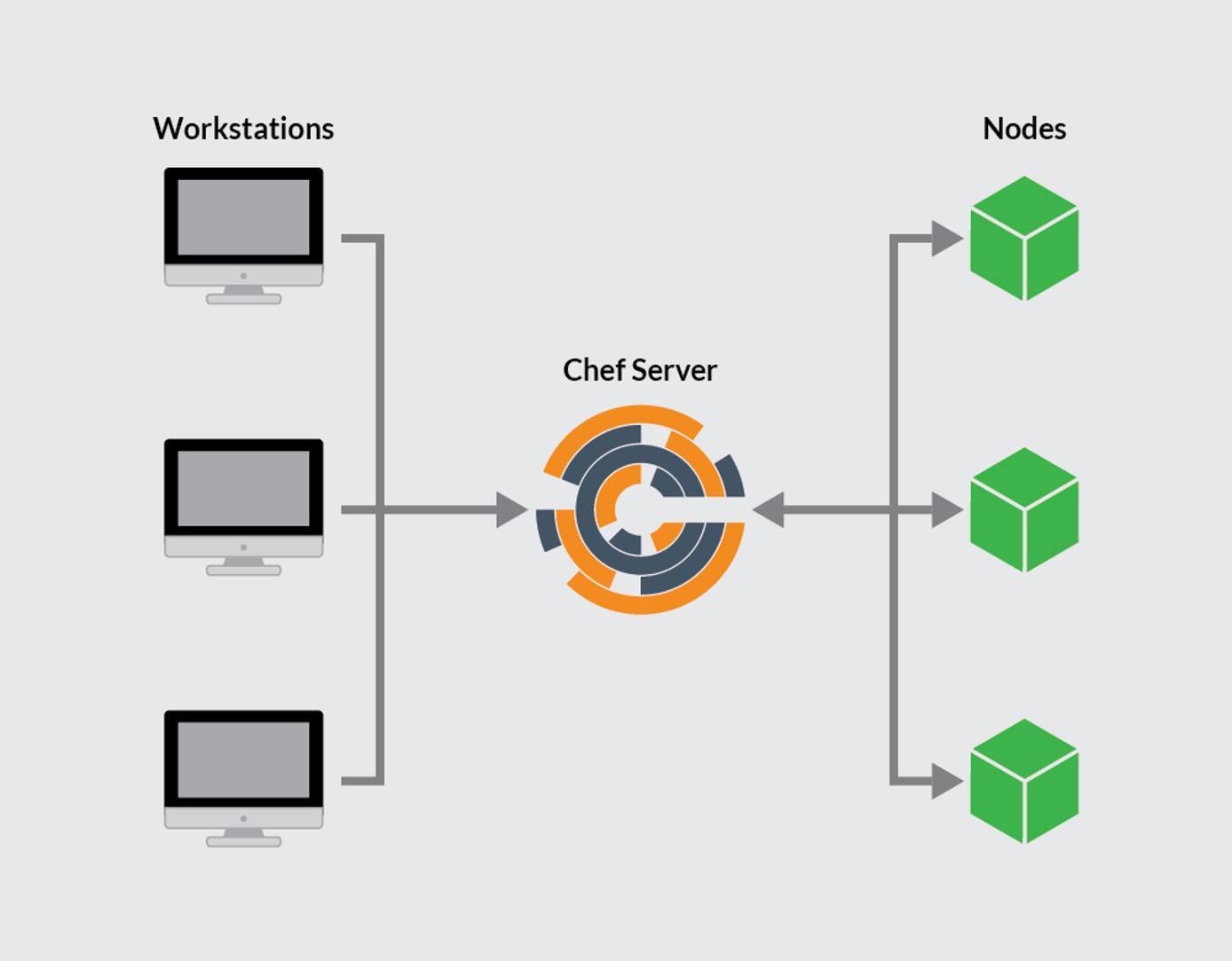

The following illustration indicates the relationship between the three parts of the Chef system.

The workstations use Chef commands, such as the knife directive, to interact with the server. Chef incorporates extra security and authentication into all of its operations, using public key encryption. However, the Chef system is complex and has a high learning curve.

Chef uses an idiosyncratic terminology based on cooking vocabulary. Some of the more important terms include the following:

  • Attribute: Specifies a value for an item on a node.
  • Bookshelf: Stores the various cookbooks and assets on a Chef Server using versioning control.
  • Chef-client: Runs on the node, and is responsible for verifying whether the node is up-to-date with the assets stored on the server.
  • Chef-repo: A directory on the Chef Workstation that contains the local cookbooks and configuration files.
  • Cookbook: The primary method of managing nodes. It contains information describing the final state of a node. The Chef server and node use the cookbook to guide configuration. Cookbooks contain recipes, along with attributes, libraries, templates, and scripts. These cookbooks can be developed on the workstation or downloaded from the Chef Supermarket.
  • Environment: Collects nodes into groups to better organize them. Similar configurations and scripts can be applied to the entire group.
  • Knife: A Chef Workstation uses the knife tool to correspond with the Chef Server. A knife command usually takes the format knife subcommand [ARGUMENT] (options).
  • Recipe: A recipe is contained within a cookbook. It explains the resources to add, change, or run on the node. Recipes are written in Ruby.
  • Resource: A resource is part of a recipe. It contains a type, name, and list of key-value pairs for a component.
  • Test Kitchen: This is a workstation module to help users test recipes before deployment.

Linode has a helpful Beginner’s Guide to Chef. For detailed information about Chef, see the Chef documentation. Chef also makes the Learn Chef training resource available.

Before You Begin

  1. If you have not already done so, create a Linode account and Compute Instance. See our Getting Started with Linode and Creating a Compute Instance guides.

  2. Follow our Setting Up and Securing a Compute Instance guide to update your system. You may also wish to set the timezone, configure your hostname, create a limited user account, and harden SSH access.

  3. At least three Linode systems running Ubuntu 20.04 are required to implement a Chef system. One server is for the Chef Workstation, the second for the Chef Server, while a third represents a node under administration. Due to Chef’s memory demands, the Chef Server requires a 8GB Linode. The other two servers can be 2GB Linodes. Both the Chef Server and Chef Workstation should be configured using the previous instructions. Chef is used to set up the target node.

  4. Ensure all Linode servers are updated using the following command.

    sudo apt update && sudo apt upgrade
  5. Assign a domain name to the Chef Server. For information on domain names and pointing the domain name to a Linode, see the Linode DNS Manager guide.

  6. Configure the host name of the Chef Server so it matches the domain name. This allows SSL certificate allocation to proceed normally. To set the host name of a Ubuntu server, use the command sudo hostnamectl set-hostname <hostname>, replacing <hostname> with the actual name of your domain.

Note
This guide is written for a non-root user. Commands that require elevated privileges are prefixed with sudo. If you are not familiar with the sudo command, see the Users and Groups guide.

How to Install and Configure the Chef Server

Because the Chef Server operates as a hub for the entire system, it is best to install and configure it first. The Chef Server uses a high amount of resources, so it is important to use a dedicated Linode with at least 8GB of memory.

How to Install the Chef Server

The Chef Server Core can be downloaded using wget. The following steps demonstrate how to download the latest release of Chef for the Ubuntu 20.04 release. For other releases of Ubuntu, see the Chef download page. For more detailed instructions, see the Chef Server installation page. To install the Chef Server, follow these steps.

  1. Download the Chef Server core using wget.

    wget https://packages.chef.io/files/stable/chef-server/15.1.7/ubuntu/20.04/chef-server-core_15.1.7-1_amd64.deb
  2. Install the server core.

    sudo dpkg -i chef-server-core_*.deb
    Selecting previously unselected package chef-server-core.
    (Reading database ... 108635 files and directories currently installed.)
    Preparing to unpack chef-server-core_15.1.7-1_amd64.deb ...
    Unpacking chef-server-core (15.1.7-1) ...
    Setting up chef-server-core (15.1.7-1) ...
    Thank you for installing Chef Infra Server!
  3. For better security and to preserve server space, remove the downloaded .deb file.

    rm chef-server-core_*.deb
  4. Start the Chef server. Answer yes when prompted to accept the product licenses.

    Note
    The installation process takes several minutes to complete. Upon a successful installation, the message Chef Infra Server Reconfigured! is displayed.
    sudo chef-server-ctl reconfigure

How to Configure a Chef User and Organization

To use Chef, configure an organization and at least one user on the Chef Server. This enables server access for workstations and nodes. To create these accounts, follow these steps.

  1. Create a .chef directory to store the keys. This should be a subdirectory located inside the home directory.

    mkdir .chef
  2. Use the chef-server-ctl command to create a user account for the Chef administrator. Additional user accounts can be created later. Replace the USER_NAME, FIRST_NAME, LAST_NAME, EMAIL, and PASSWORD fields with the relevant information. For the --filename argument, replace USER_NAME.pem with the user name used earlier in the command.

    sudo chef-server-ctl user-create USER_NAME FIRST_NAME LAST_NAME EMAIL 'PASSWORD' --filename ~/.chef/USER_NAME.pem
  3. Review the user list and confirm the account now exists.

    sudo chef-server-ctl user-list
    USER_NAME
  4. Create a new organization, also using the chef-server-ctl command. Replace ORG_NAME and ORG_FULL_NAME with the actual name of the organization. The ORG_NAME field must be all lower case. The value for USER_NAME must be the same name used in the user-create command. For the --filename argument, in ORG_NAME.pem, replace ORG_NAME with the organization name used elsewhere in the command.

    sudo chef-server-ctl org-create ORG_NAME "ORG_FULL_NAME" --association_user USER_NAME --filename ~/.chef/ORG_NAME.pem
  5. List the organizations to confirm the new organization is successfully created.

    sudo chef-server-ctl org-list
    ORG_NAME

How to Install and Configure a Chef Workstation

A Chef Workstation is for users to create and test recipes. Any Linode with at least 2GB of memory can be used for this task. Unlike the Chef Server, a workstation can also be used for other tasks. However, in a larger organization hosting many users, it is often efficient to centralize workstation activities on one server hosting multiple accounts.

How to Install a Chef Workstation

The steps for installing a Chef Workstation are similar to those for installing the Server. Download the correct file using wget, then install it. To install a Chef Workstation, follow these steps.

  1. Download the source files for the Chef Workstation. For different releases of the Workstation, or downloads for earlier releases, see the Chef Workstation Downloads page. For more information on the installation process, see the Chef Workstation Installation Documentation.

    wget https://packages.chef.io/files/stable/chef-workstation/22.10.1013/ubuntu/20.04/chef-workstation_22.10.1013-1_amd64.deb
  2. Install the Chef Workstation.

    sudo dpkg -i chef-workstation_*.deb
    Thank you for installing Chef Workstation!
  3. Remove the source file.

    rm chef-workstation_*.deb
  4. Confirm the correct release of the Chef Workstation is installed.

    chef -v
    Chef Workstation version: 22.10.1013
    Chef Infra Client version: 17.10.0
    Chef InSpec version: 4.56.20
    Chef CLI version: 5.6.1
    Chef Habitat version: 1.6.521
    Test Kitchen version: 3.3.2
    Cookstyle version: 7.32.1

How to Configure a Chef Workstation

A few more items must be configured before the Workstation is operational. Tasks include generating a repository, editing the hosts file, and creating a subdirectory. To fully configure the workstation, follow these steps.

  1. Generate the chef-repo repository. This directory stores the Chef cookbooks and recipes. Enter yes when asked whether to accept the product licenses.

    chef generate repo chef-repo
    Your new Chef Infra repo is ready! Type `cd chef-repo` to enter it.
  2. Edit the /etc/hosts file. This file contains mappings between host names and their IP addresses. Add an entry for the Chef Server, containing the name of the server, which is also the domain name, and its IP address. In this example, this is indicated in the line 192.0.1.0 example.com. There must also be an entry for the local server. This is the 192.0.2.0 chefworkstation line in the example. This entry must contain the local IP address and the hostname of the server hosting the Chef Workstation. The file should resemble the following example.

    File: /etc/hosts
    1
    2
    3

    127.0.0.1 localhost
    192.0.1.0 example.com
    192.0.2.0 chefworkstation
  3. Create a .chef subdirectory. This is where the knife file is stored, along with files for encryption and security.

    mkdir ~/chef-repo/.chef
    cd chef-repo

How to Add RSA Private Keys

RSA private keys enable better security between the Chef Server and associated workstations through the use of encryption. Earlier, RSA private keys were created on the Chef Server. Copying these keys to a workstation allows it to communicate with the server. To enable encryption using RSA private keys, follow these steps.

Note
SSH password authentication must be enabled on the Chef Server to complete the key exchange. If SSH password authentication has been disabled for better security, enable it again before proceeding. After the keys have been retrieved and added to the workstation, SSH password authentication can be disabled again. See the Linode guide to How to Secure Your Server for more information.
  1. On the workstation, generate an RSA key pair. This key can be used to initially access the Chef server to copy over the private encryption files.

    ssh-keygen -b 4096
    Generating public/private rsa key pair.
    Enter file in which to save the key (/home/username/.ssh/id_rsa):
  2. Hit the Enter key to accept the default file names id_rsa and id_rsa.pub. Ubuntu stores these files in the /home/username/.ssh directory.

    Created directory '/home/username/.ssh'.
    Enter passphrase (empty for no passphrase):
  3. Enter a password when prompted, then enter it again. An identifier and public key are saved to the directory.

    Your identification has been saved in /home/username/.ssh/id_rsa
    Your public key has been saved in /home/username/.ssh/id_rsa.pub
  4. Copy the new public key from the workstation to the Chef Server. In the following command, use the account name for the Chef Server along with its IP address.

    ssh-copy-id username@192.0.1.0
  5. Use the scp command to copy the .pem files from the Chef Server to the workstation. In the following example, replace username with the user account for the Chef Server and 192.0.1.0 with the actual Chef Server IP address.

    scp username@192.0.1.0:~/.chef/*.pem ~/chef-repo/.chef/
    Enter passphrase for key '/home/username/.ssh/id_rsa':
    username.pem                                                                       100% 1674     1.7MB/s   00:00
    testcompany.pem                                                                 100% 1678     4.7MB/s   00:00
  6. List the contents of the .chef subdirectory to ensure the .pem files were successfully copied.

    ls ~/chef-repo/.chef
    username.pem  testcompany.pem

How to Configure Git on a Chef Workstation

A version control system helps the Chef Workstation track any changes to the cookbooks and restore earlier versions if necessary. This example uses Git, which is compatible with the Chef system. The following steps explain how to configure Git, initialize a Git repository, add new files, and commit them.

  1. Configure Git using the git config command. Replace username and user@email.com with your own values.

    git config --global user.name username
    git config --global user.email user@email.com
  2. Add the .chef directory to the .gitignore file. This ensures system and auto-generated files are not shown in the output of git status and other Git commands.

    echo ".chef" > ~/chef-repo/.gitignore
  3. Ensure the chef-repo directory is the current working directory. Add and commit the existing files using git add and git commit.

    cd ~/chef-repo
    git add .
    git commit -m "initial commit"
    [master (root-commit) a3208a3] initial commit
    13 files changed, 343 insertions(+)
    create mode 100644 .chef-repo.txt
    ...
    create mode 100644 policyfiles/README.md
  4. Run the git status command to ensure all files have been committed.

    git status
    On branch master
    nothing to commit, working tree clean

How to Generate a Chef Cookbook

To generate a new Chef cookbook, use the chef generate command.

chef generate cookbook my_cookbook

How to Configure the Knife Utility

The Chef Knife utility helps a Chef workstation communicate with the server. It provides a method of managing cookbooks, nodes, and the Chef environment. Chef uses the config.rb file in the .chef subdirectory to store the Knife configuration. To configure Knife, follow these steps.

  1. Create a config.rb file in the ~/chef-repo/.chef directory. This example uses vi, but any text editor can be used.

    cd ~/chef-repo/.chef
    vi config.rb
  2. Use the following config.rb file as an example of how to configure Knife. Copy this sample configuration to the file.

    File: ~/chef-repo/.chef/config.rb
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11

    current_dir = File.dirname(__FILE__)
    log_level                :info
    log_location             STDOUT
    node_name                'node_name'
    client_key               "USER.pem"
    validation_client_name   'ORG_NAME-validator'
    validation_key           "ORG_NAME-validator.pem"
    chef_server_url          'https://example.com/organizations/ORG_NAME'
    cache_type               'BasicFile'
    cache_options( :path => "#{ENV['HOME']}/.chef/checksums" )
    cookbook_path            ["#{current_dir}/../cookbooks"]
  3. Make the following changes:

    • node_name must be the name of the user account created when configuring the Chef Server.
    • For client_key, replace USER with the user name associated with the .pem file, followed by .pem.
    • validation_client_name requires the same ORG_NAME used when creating the organization followed by -validator.
    • the validation_key field must contain the name used for ORG_NAME when the organization was created, followed by -validator.pem.
    • For chef_server_url, change example.com to the name of the domain. Follow the domain name with /organizations/ and the ORG_NAME used when creating the organization.
    • Leave the remaining fields unchanged.
  4. Move back to the chef-repo directory and fetch the necessary SSL certificates from the server using the knife fetch command.

    Note
    The SSL certificates were generated when the Chef server was installed. The certificates are self-signed. This means a certificate authority has not verified them. Before fetching the certificates, log in to the Chef server and ensure the hostname and fully qualified domain name (FQDN) are the same. These values can be confirmed using the commands hostname and hostname -f.
    cd ..
    knife ssl fetch
    Knife has no means to verify these are the correct certificates. You should verify the authenticity of these certificates after downloading.
    Adding certificate for example.com in /home/username/chef-repo/.chef/trusted_certs/example.com.crt
  5. To confirm the config.rb file is correct, run the knife client list command. The relevant validator name should be displayed.

    knife client list
    testcompany-validator

How to Bootstrap a Node

At this point, both the Chef Server and Chef Workstation are configured. They can now be used to bootstrap the node. The bootstrap process installs the chef client on the node and performs validation. The node can then retrieve any necessary updates from the Chef Server. To bootstrap the node, follow these steps.

  1. Log in to the target node, which is the node to be bootstrapped, and edit the /etc/hosts file. Add entries for the node, the Chef server domain name, and the workstation. The file should resemble the following example, using the actual names of the Chef Server, workstation, and the target node, along with their IP addresses.

    File: /etc/hosts
    1
    2
    3
    4

    127.0.0.1 localhost
    192.0.100.0 targetnode
    192.0.2.0 chefworkstation
    192.0.1.0 example.com
  2. Return to the Linode hosting the Chef Workstation and change the working directory to ~/chef-repo/.chef.

    cd ~/chef-repo/.chef
  3. Bootstrap the node using the knife bootstrap command. Specify the IP address of the target node for node_ip_address. This is the address of the node to bootstrap. In the following example, use the actual user name and password for the account in place of username and password. Enter the name of the node in place of nodename. Answer Y when asked “Are you sure you want to continue connecting”.

    Note
    The option to bootstrap using key-pair authentication no longer appears to be supported.
    knife bootstrap node_ip_address -U username -P password --sudo --use-sudo-password --node-name nodename
  4. Confirm the node has been successfully bootstrapped. List the client nodes using the knife client list command. All bootstrapped nodes should be listed.

    knife client list
    target-node
    testcompany-validator
  5. Add the bootstrapped node to the workstation /etc/hosts file as follows. Replace 192.0.100.0 targetnode with the IP address and name of the bootstrapped node.

    File: /etc/hosts
    1
    2
    3
    4

    127.0.0.1 localhost
    192.0.1.0 example.com
    192.0.2.0 chefworkstation
    192.0.100.0 targetnode

How to Download and Apply a Cookbook (Optional)

A cookbook is the most efficient way of keeping target nodes up to date. In addition, a cookbook can delete the validation.pem file that was created on the node when it was bootstrapped. It is important to delete this file for security reasons.

It is not mandatory to download or create cookbooks to use Chef. But this section provides a brief example of how to download a cookbook and apply it to a node.

  1. On the Chef workstation, change to the ~/chef-repo/.chef directory.

    cd ~/chef-repo/.chef
  2. Download the cron-delvalidate cookbook from the Chef Supermarket. For more information on the supermarket command see the Chef supermarket documentation.

    knife supermarket download cron-delvalidate
    Downloading cron-delvalidate from Supermarket at version 0.1.3 to /home/username/chef-repo/.chef/cron-delvalidate-0.1.3.tar.gz
    Cookbook saved: /home/username/chef-repo/.chef/cron-delvalidate-0.1.3.tar.gz
  3. If the cookbook is downloaded as a .tar.gz file, use the tar command to extract it. Move the extracted directory to the cookbooks directory.

    tar -xf cron-delvalidate-0.1.3.tar.gz
    cp -r  cron-delvalidate ~/chef-repo/cookbooks/
  4. Review the cookbook’s default.rb file to see the recipe. This recipe is written in Ruby and demonstrates how a typical recipe is structured. It contains a cron job named clientrun. This job instantiates a new cron job to run the chef-client command on an hourly basis. It also removes the extraneous validation.pem file.

    File: ~/chef-repo/cookbooks/cron-delvalidate/recipes/default.rb
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15

    #
    # Cookbook Name:: cron-delvalidate
    # Recipe:: Chef-Client Cron & Delete Validation.pem
    #
    #
    cron "clientrun" do
      minute '0'
      hour '*/1'
      command "/usr/bin/chef-client"
      action :create
    end

    file "/etc/chef/validation.pem" do
      action :delete
    end
  5. Add the recipe to the run list for the node. In the following command, replace nodename with the name of the node.

    knife node run_list add nodename 'recipe[cron-delvalidate::default]'
    nodename:
      run_list: recipe[cron-delvalidate::default]
  6. Upload the cookbook and its recipes to the Chef Server.

    knife cookbook upload cron-delvalidate
    Uploading cron-delvalidate [0.1.3]
    Uploaded 1 cookbook.
  7. Run the chef-client command on the node using the knife ssh utility. This command causes the node to pull the recipes in its run list from the server. It also determines whether there are any updates. The Chef Server transmits the recipes to the target node. When the recipe runs, it deletes the file and installs a cron job to keep the node up to date in the future. In the following command, replace nodename with the actual name of the target node. Replace username with the name of a user account with sudo access. Enter the password for the account when prompted to do so.

    knife ssh 'name:nodename' 'sudo chef-client' -x username
    nodename Chef Infra Client, version 17.10.3
    nodename Patents: https://www.chef.io/patents
    nodename Infra Phase starting
    nodename Resolving cookbooks for run list: ["cron-delvalidate::default"]
    nodename Synchronizing cookbooks:
    nodename   - cron-delvalidate (0.1.3)
    nodename Installing cookbook gem dependencies:
    nodename Compiling cookbooks...
    nodename Loading Chef InSpec profile files:
    nodename Loading Chef InSpec input files:
    nodename Loading Chef InSpec waiver files:
    nodename Converging 2 resources
    nodename Recipe: cron-delvalidate::default
    nodename   * cron[clientrun] action create
    nodename     - add crontab entry for cron[clientrun]
    nodename   * file[/etc/chef/validation.pem] action delete (up to date)
    nodename
    nodename Running handlers:
    nodename Running handlers complete
    nodename Infra Phase complete, 1/2 resources updated in 03 seconds

Conclusion

Chef is an infrastructure as code (IaC) application for automating the deployment and management of infrastructure nodes. The Chef architecture consists of the Chef Server, which stores all the procedures, and a Chef Workstation, where the infrastructure code is developed. The managed nodes communicate with the server to receive updates. To use Chef, install the Chef Server and Chef Workstation software. Share RSA keys between the server and workstation, and install version control and the Chef Knife utility on the workstation. Bootstrap the target nodes using the knife bootstrap utility. After a node is bootstrapped, it is possible to download cookbooks and recipes using the node’s run list. For more information, see the Chef documentation.

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

This page was originally published on


Your Feedback Is Important

Let us know if this guide was helpful to you.


Join the conversation.
Read other comments or post your own below. Comments must be respectful, constructive, and relevant to the topic of the guide. Do not post external links or advertisements. Before posting, consider if your comment would be better addressed by contacting our Support team or asking on our Community Site.
The Disqus commenting system for Linode Docs requires the acceptance of Functional Cookies, which allow us to analyze site usage so we can measure and improve performance. To view and create comments for this article, please update your Cookie Preferences on this website and refresh this web page. Please note: You must have JavaScript enabled in your browser.
