Install an Odoo 11 Stack on Ubuntu 16.04
Traducciones al EspañolEstamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
DeprecatedThis guide has been deprecated and is no longer being maintained.
![](/docs/images/pix.gif)
![Odoo 11 on Ubuntu 16.04 Title Graphic Install an Odoo 11 Stack on Ubuntu 16.04 using Linode](/docs/guides/install-an-odoo-11-stack-on-ubuntu-16-04/install-an-odoo-11-stack-on-ubuntu-16-04-using-linode_hu22b611ece4e74b9bb7590640a4ca4759_270082_694x0_resize_q71_bgfafafc_catmullrom_3.jpg)
![Odoo 11 on Ubuntu 16.04 Title Graphic Install an Odoo 11 Stack on Ubuntu 16.04 using Linode](/docs/guides/install-an-odoo-11-stack-on-ubuntu-16-04/install-an-odoo-11-stack-on-ubuntu-16-04-using-linode_hu22b611ece4e74b9bb7590640a4ca4759_270082_1388x0_resize_q71_bgfafafc_catmullrom_3.jpg)
What is Odoo?
Odoo (formerly known as OpenERP) is a self-hosted suite of over 10,000 open source applications for a variety of business needs, including CRM, eCommerce, accounting, inventory, point of sale, and project management. These applications are all fully integrated and can be installed and accessed through a web interface, making it easy to automate and manage your company’s processes.
For simple installations, Odoo and its dependencies can be installed on a single Linode (see our Install Odoo 10 on Ubuntu guide for details). However, this single-server setup is not suited for production deployments. This guide covers how to configure a production Odoo 11 cluster in which the Odoo server and PostgreSQL database are hosted on separate Linodes, with database replication for added performance and reliability.
System Requirements
The setup in this guide requires the following minimal Linode specifications:
- PostgreSQL databases (primary and standby) - Linode 2GB
- Odoo 11 web application - Linode 1GB
Keep in mind that your implementation may need more nodes or higher-memory plans depending on the number of end-users you want to serve and the number of modules you plan to incorporate.
All examples in this guide are for Ubuntu 16.04. If you plan to use a different operating system, adapt the commands as necessary.
Before You Begin
Familiarize yourself with our Getting Started guide and complete the steps for setting your Linode’s hostname and timezone.
This guide will use
sudo
wherever possible. Complete the sections of our Securing Your Server to create a standard user account, harden SSH access and remove unnecessary network services.Update your system:
sudo apt-get update && sudo apt-get upgrade
Install
software-properties-common
:sudo apt install software-properties-common
Configure Firewall Rules for Odoo
If you want to configure a firewall for your Linodes, open the following ports:
Node | Open TCP Ports |
---|---|
Odoo 11 application | 22, 6010, 5432, 8070 |
PostgreSQL database (Primary & Standby) | 22, 6010, 5432 |
Ports 22
, 80
, and 5432
are the defaults for SSH, HTTP and PostgreSQL communications respectively. Port 6010
is used for Odoo communications and port 8070
is used by Odoo’s webserver. To open a particular port you can use:
sudo ufw allow 22/tcp
For more detailed information about firewall setup please read our guide How to Configure a Firewall with UFW.
Hostname Assignment
In order to simplify communication between Linodes, set hostnames for each server. You can use private IPs if the Linodes are all in the same data center, or Fully Qualified Domain Names (FQDNs) if available. This guide will use the following FQDN and hostname conventions:
Node | Hostname | FQDN |
---|---|---|
Odoo 11 | odoo | odoo.yourdomain.com |
PostgreSQL Primary | primarydb | primarydb.yourdomain.com |
PostgreSQL Standby | standbydb | standbydb.yourdomain.com |
PostgreSQL Primary:
- File: /etc/hosts
127.0.0.1 localhost 127.0.1.1 primarydb.yourdomain.com primarydb 10.1.1.20 standbydb.yourdomain.com standbydb 10.1.3.10 odoo.yourdomain.com odoo
PostgreSQL Standby:
- File: /etc/hosts
127.0.0.1 localhost 127.0.1.1 standbydb.yourdomain.com standbydb 10.1.1.10 primarydb.yourdomain.com primarydb 10.1.3.10 odoo.yourdomain.com odoo
Odoo 11 server:
- File: /etc/hosts
127.0.0.1 localhost 127.0.1.1 odoo.yourdomain.com odoo 10.1.1.10 primarydb.yourdomain.com primarydb 10.1.1.20 standbydb.yourdomain.com standbydb
FQDNs will be used throughout this guide whenever possible to avoid confusion.
Set up PostgreSQL
Configure the database backend. A Primary node will be in charge of all transactions and additionally will stream to a secondary server: the Standby.
Install PostgreSQL
PostgreSQL version 9.6 offers significant improvements for database replication, but unfortunately, it is not included in the default Ubuntu 16.04 repositories. Install the newest version on all database nodes.
Add the official PostgreSQL-Xenial repository to your system:
sudo add-apt-repository "deb http://apt.postgresql.org/pub/repos/apt/ xenial-pgdg main"
Import the repository key:
wget --quiet -O - https://www.postgresql.org/media/keys/ACCC4CF8.asc | sudo apt-key add -
Update
apt
cache:sudo apt update
Install PostgreSQL 9.6 in the database nodes:
sudo apt install postgresql-9.6 postgresql-server-dev-9.6
Create PostgreSQL Users
Begin with the PostgreSQL user needed for Odoo communications. Create this user on both Primary and Standby nodes.
Switch to the
postgres
user and create the database userodoo
in charge of all operations. Use a strong password and save it in a secure location, you will need it later:sudo -u postgres createuser odoo -U postgres -dRSP
Use the same password for the Odoo
postgres
user on all nodes. Odoo is not aware of database replication, so it will be easier to trigger an eventual failover procedure if both servers share the same information.Now you need to create the
replicauser
on the Primary node:sudo -u postgres createuser replicauser -U postgres -P --replication
Set a strong password that you’ll remember.
The
replicauser
user has fewer privileges than theodoo
user because thereplicauser
’s only purpose is to allow the Standby to read information from the Primary nodes. The--replication
option grants the required privilege thatreplicauser
need to perform its job.
Configure Host Based Authentication
Stop the PostgreSQL service on all nodes:
sudo systemctl stop postgresql
Edit
pg_hba.conf
to allow PostgreSQL nodes to communicate with each other. Add the following lines to the Primary database server:- File: /etc/postgresql/9.6/main/pg_hba.conf
host replication replicauser standbydb.yourdomain.com md5 host all odoo odoo.yourdomain.com md5
Each line provides the client authentication permissions to connect to a specific database. For example, the first line allows the Standby to connect to the Primary node using
replicauser
, and the second line grants theodoo
user the rights connect toall
databases within this server.Add a similar configuration to the Standby node, this will make it easier to promote it to
primary
status if necessary:- File: /etc/postgresql/9.6/main/pg_hba.conf
host all odoo odoo.yourdomain.com md5
The settings in the pg_hba.conf
file are:
host
: Enables connections using Unix-domain sockets.replication
: Specifies a replication connection for the given user. No database name is required for this type of connection.replicauser
: The user created in the previous section.md5
: Make use of client-supplied MD5-encrypted password for authentication.all
: Match all databases in the server. You could provide specific Odoo database names (separated by commas if more than one) if you know them beforehand.odoo
: The Odoo user responsible for application/database communications.
Configure Archiving and Replication
On the Primary node
Create an
archive
directory for WAL files:sudo mkdir -p /var/lib/postgresql/9.6/main/archive/
Change the
archive
directory permissions to allow thepostgres
user to read and write:sudo chown postgres: -R /var/lib/postgresql/9.6/main/archive/
Edit
postgresql.conf
, and uncomment lines as necessary:- File: /etc/postgresql/9.6/main/postgresql.conf
#From CONNECTIONS AND AUTHENTICATION Section listen_addresses = '*' #From WRITE AHEAD LOG Section wal_level = replica min_wal_size = 80MB max_wal_size = 1GB archive_mode = on archive_command = 'cp %p /var/lib/postgresql/9.6/main/archive/%f' archive_timeout = 1h #From REPLICATION Section max_wal_senders = 3 wal_keep_segments = 10
On the Standby node
Edit the Standby’s postgresql.conf
:
- File: /etc/postgresql/9.6/main/postgresql.conf
listen_addresses = '*' #From WRITE AHEAD LOG Section wal_level = replica #From REPLICATION Section max_wal_senders = 3 wal_keep_segments = 10 hot_standby = on
These settings are:
listen_addresses
: What IP addresses lo listen on. The'*'
means that the server will listen to all IP addresses. You can limit this to only include the IP addresses that you consider safe.wal_level
: Set toreplica
to perform the required operations.min_wal_size
: Minimum size the transaction log will be.max_wal_size
: Actual target size of WAL at which a new checkpoint is triggered.archive_mode
: Set toon
to activate the archive storage (see below).archive_timeout
: Forces the server to send a WAL segment periodically (even ifmin_wal_size
is not reached). This is useful if you expect little WAL traffic.archive_command
: Local shell command to execute in order to archive a completed WAL file segment.max_wal_senders
: Maximum number of concurrent connections from the Standby node.wal_keep_segments
: Minimum number of past log file segments kept in thepg_xlog
directory, in case a standby server (Standby node) needs to fetch them for streaming replication.hot_standby = on
: Specifies that the Standby server can connect and run queries during recovery.
Synchronize Primary and Standby Node Data
Confirm that the Standby PostgreSQL service is not running:
sudo systemctl status postgresql
Start the Primary PostgreSQL service:
sudo systemctl start postgresql
Rename the Standby’s data directory before continuing:
sudo mv /var/lib/postgresql/9.6/main /var/lib/postgresql/9.6/main_old
From the Standby node, enter the following to transfer all of the Primary’s data over:
sudo -u postgres pg_basebackup -h primarydb.yourdomain.com --xlog-method=stream \ -D /var/lib/postgresql/9.6/main/ -U replicauser -v -P
You will be prompted with the
replicauser
password. Once the transfer is complete your Standby will be synchronized with the Primary database. This puts an exact replica of the Primary database on the Standby.Important Do not start the Standby’s PostgreSQL service until Step 3 of the next section, when all configuration is complete.
Create the Recovery File on the Standby Node
Copy the sample recovery file as a template for your requirements:
sudo cp -avr /usr/share/postgresql/9.6/recovery.conf.sample \ /var/lib/postgresql/9.6/main/recovery.conf
Edit the new copy of the recovery file:
- File: /var/lib/postgresql/9.6/main/recovery.conf
standby_mode = 'on' primary_conninfo = 'host=primarydb.yourdomain.com port=5432 user=replicauser password=REPLICAUSER_PWD' restore_command = 'cp /var/lib/postgresql/9.6/main/archive/%f %p' trigger_file = '/tmp/postgresql.trigger.5432'
Start the PostgreSQL service on the Standby node:
sudo systemctl start postgresql
These parameters configure your Standby to restore data. Failover and more options are described in the PostgreSQL documentation for recovery.
Test Replication
Test your setup to check that everything works as expected.
In the Primary server change to the
postgres
user and verify the replication status:sudo -u postgres psql -x -c "select * from pg_stat_replication;"
-[ RECORD 1 ]----+------------------------------ pid | 6005 usesysid | 16385 usename | replicauser application_name | walreceiver client_addr | 66.228.54.56 client_hostname | client_port | 36676 backend_start | 2018-01-23 19:14:26.573184+00 backend_xmin | state | streaming sent_location | 0/6000F60 write_location | 0/6000F60 flush_location | 0/6000F60 replay_location | 0/6000F60 sync_priority | 0 sync_state | async
To see the replication in action, create a test database on your Primary server with the
odoo
user:sudo createdb -h localhost -p 5432 -U odoo helloworld
On the Standby, check the presence of the new database you just created using the
postgres
user andpsql
:sudo -u postgres psql
List all databases:
\l
Exit
psql
:\q
This test not only confirms that replication is working, but also that the odoo
user is ready to perform database operations.
Enable PostgreSQL on Startup
Enable the postgresql
service on both primarydb and standbydb:
sudo systemctl enable postgresql
Odoo 11 Setup
Configure your Odoo 11 web application to work with the PostgreSQL database backend.
Create the Odoo User
In order to separate Odoo from other services, create a new Odoo system user to run its processes:
sudo adduser --system --home=/opt/odoo --group odoo
Configure Logs
The examples in this guide use a separate file for logging Odoo activity:
sudo mkdir /var/log/odoo
Install Odoo 11
Install git:
sudo apt install git
Use Git to clone the Odoo files onto your server:
sudo git clone https://www.github.com/odoo/odoo --depth 1 \ --branch 11.0 --single-branch /opt/odoo
Note Odoo 11 application now uses Python 3.x instead of Python 2.7. If you are using Ubuntu 14.04 this may mean additional steps for your installation. Dependencies are now grouped to highlight the new changes.Enforce the use of POSIX locale this will prevent possible errors during installation (this has nothing to do with the Odoo language):
export LC_ALL=C
Install new Python3 dependencies:
sudo apt-get install python3 python3-pip python3-suds python3-all-dev \ python3-dev python3-setuptools python3-tk
Install global dependencies (common to Odoo version 10):
sudo apt install git libxml2-dev libxslt1-dev libevent-dev libsasl2-dev libldap2-dev \ pkg-config libtiff5-dev libjpeg8-dev libjpeg-dev zlib1g-dev libfreetype6-dev \ liblcms2-dev liblcms2-utils libwebp-dev tcl8.6-dev tk8.6-dev libyaml-dev fontconfig
Install Odoo 11 specific Python dependencies:
sudo -H pip3 install --upgrade pip sudo -H pip3 install -r /opt/odoo/doc/requirements.txt sudo -H pip3 install -r /opt/odoo/requirements.txt
Install Less CSS via Node.js and npm:
sudo curl -sL https://deb.nodesource.com/setup_6.x | sudo -E bash - \ && sudo apt-get install -y nodejs \ && sudo npm install -g less less-plugin-clean-css
Download the
wkhtmltopdf
stable package. Replace the version number0.12.4
in this command with the latest release on Github:cd /tmp wget https://github.com/wkhtmltopdf/wkhtmltopdf/releases/download/0.12.4/wkhtmltox-0.12.4_linux-generic-amd64.tar.xz
Extract the package:
tar -xvf wkhtmltox-0.12.4_linux-generic-amd64.tar.xz
To ensure that
wkhtmltopdf
functions properly, move the binaries to a location in your executable path and give them the necessary permission for execution:sudo mv wkhtmltox/bin/wk* /usr/bin/
&& sudo chmod a+x /usr/bin/wk*
Configure the Odoo Server
Copy the included configuration file to
/etc/
and change its name toodoo-server.conf
sudo cp /opt/odoo/debian/odoo.conf /etc/odoo-server.conf
Modify the configuration file. The complete file should look similar to the following, depending on your deployment needs:
- File: /etc/odoo-server.conf
[options] admin_passwd = admin db_host = primarydb.yourdomain.com db_port = False db_user = odoo db_password = odoo_password addons_path = /opt/odoo/addons logfile = /var/log/odoo/odoo-server.log xmlrpc_port = 8070
admin_passwd
: The password that allows administrative operations within Odoo GUI. Be sure to changeadmin
to something more secure.db_host
: The primarydb FQDN.db_port
: Odoo uses PostgreSQL’s default port5432
, change this only if you’re using custom PostgreSQL settings.db_user
: Name of the PostgreSQL database user.db_password
: Use the PostgreSQLodoo
user password you created previously.addons_path
: Default addons path, you can add custom paths separating them with commas:</path/to/custom/modules>
logfile
: Path to your Odoo logfiles.xmlrpc_port
: Port that Odoo will listen on.
Create an Odoo Service
Create a systemd unit called odoo-server
to allow your application to behave as a service. Create a new file at /lib/systemd/system/odoo-server.service
and add the following:
- File: /lib/systemd/system/odoo-server.service
1 2 3 4 5 6 7 8 9 10 11 12 13 14
[Unit] Description=Odoo Open Source ERP and CRM [Service] Type=simple PermissionsStartOnly=true SyslogIdentifier=odoo-server User=odoo Group=odoo ExecStart=/opt/odoo/odoo-bin --config=/etc/odoo-server.conf --addons-path=/opt/odoo/addons/ WorkingDirectory=/opt/odoo/ [Install] WantedBy=multi-user.target
Change File Ownership and Permissions
Change the
odoo-server
service permissions and ownership so only root can write to it, while theodoo
user will only be able to read and execute it:sudo chmod 755 /lib/systemd/system/odoo-server.service \ && sudo chown root: /lib/systemd/system/odoo-server.service
Since the
odoo
user will run the application, change its ownership accordingly:sudo chown -R odoo: /opt/odoo/
Set the
odoo
user as the owner of log directory as well:sudo chown odoo:root /var/log/odoo
Protect the server configuration file. Change its ownership and permissions so no other non-root user can access it:
sudo chown odoo: /etc/odoo-server.conf \ && sudo chmod 640 /etc/odoo-server.conf
Test your Odoo Stack
Confirm that everything is working as expected.
Start the Odoo server:
sudo systemctl start odoo-server
Confirm that
odoo-server
is running:sudo systemctl status odoo-server
In a browser, navigate to
odoo.yourdomain.com

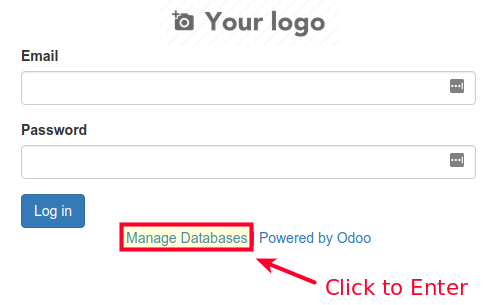

or the IP address of the odoo Linode. If your proxy and your DNS configuration are working properly a login screen will appear.Click on the Manage Databases link:
Now you can see the test database you created earlier.

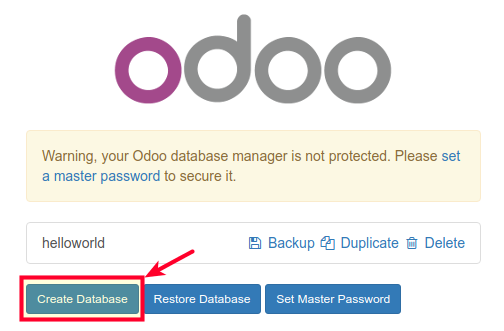

Click Create Database and fill out the form with a test database. Check the Load demonstation data box to populate your database with sample data.

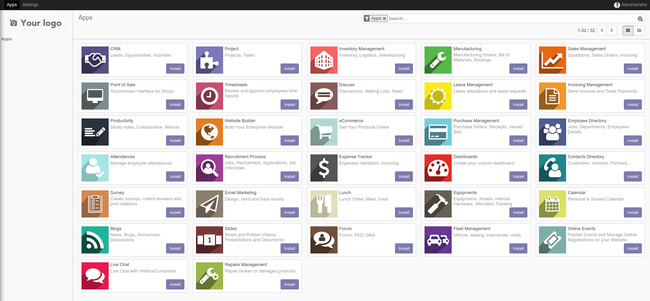

In the browser, you should see a list of available apps, indicating that database creation was successful:
The first time you create a database, Odoo may take several minutes to load all of its add-ons. Do not reload the page during this process.
Enable the Odoo Service
Enable the
odoo-server
service to start automatically on reboot:sudo systemctl enable odoo-server
Reboot your Linode from the Linode Manager.
Check the Odoo logs to verify that the Odoo server is running:
sudo cat /var/log/odoo/odoo-server.log
Back Up Odoo Databases
If all components of the Odoo stack are running on a single server, it is simple to back up your databases using the Odoo web interface. However, this will not work with the configuration in this guide, since PostgreSQL was not installed on the odoo Linode.
You have two options to backup or transfer your production database:
You can install PostgreSQL 9.6 on the odoo server using the procedure used for primarydb and standbydb. This will install
pg_dump
and other utilities, allowing you to use the Odoo GUI as before. Since Odoo configuration is explicit about database connection you will not have to worry about anything else. This method will restore the database to the primarydb server rather than odoo.You can also use a procedure similar to the one in Synchronize Primary and Standby Node Data. Instead of synchronizing with a standby node, you can synchronize to a test or backup database server:
Edit
/etc/postgresql/9.6/main/pg_hba.conf
on primarydb to allow the test server to connect to it.On the test server, stop the PostgreSQL service, move/rename/delete its current data, and run the
pg_basebackup
command as before:sudo systemctl stop postgresql sudo mv /var/lib/postgresql/9.6/main /var/lib/postgresql/9.6/main_old sudo -u postgres pg_basebackup -h <primarydb public ip> --xlog-method=stream -D /var/lib/postgresql/9.6/main/ -U replicauser -v -P
Update Odoo Modules
Once you have restored, transferred, or synchronized your production database to the testing server you can update Odoo modules.
From your test server restart the Odoo service using the following flags to instruct the system to search for updates and apply any changes to modules:
sudo service odoo-server restart -u all -d <production_database_name>
Update your System
If all your tests pass, you can safely update your installation.
From your Linode download the new code from source:
cd /opt/odoo \ && sudo git fetch origin 11.0
Apply the changes to your repository:
sudo git reset --hard origin/11.0
More Information
You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.
This page was originally published on
