Installing a Mastodon Server on Ubuntu 16.04

Select distribution:
Traducciones al Español
Estamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
Deprecated

This guide has been deprecated and is no longer being maintained.

What is Mastodon?

Mastodon is a free, decentralized, and open source social network alternative to Twitter. Like Twitter, Mastodon users can follow other users and post messages, images, and videos. Unlike Twitter, there is no single central authority and store for content on the network.

Instead, anyone can create a Mastodon server, invite friends to join it, and build their own communities. In addition, while each Mastodon instance is privately operated, users from different servers can still communicate with and follow each other across instances.

The Fediverse

The grouping of all the independent social network servers is referred to as the Fediverse. Mastodon can communicate with any server implementing the ActivityPub and/or OStatus protocols (one other example is GNU Social), and Mastodon is just one implementation of these protocols.

While Mastodon servers are privately-operated, they are often open to public registration. Some servers are small, and some are very large (for example, Mastodon.social has over 180,000 users). Servers are frequently centered on specific interests of their users, or by the principles those users have defined. To enforce those principles, each Mastodon server has the power to moderate and set rules for the content created by the users on that server (for example, see Mastodon.social’s Code of Conduct).

Before You Begin

This guide will create a Mastodon server on a Linode running Ubuntu 16.04. Docker Compose is used to install Mastodon. If you prefer a different Linux distribution, you may be able to use this guide with small changes to the listed commands.

  1. If you have not already done so, create a Linode account and Compute Instance. See our Getting Started with Linode and Creating a Compute Instance guides.

    Note
    Consult Mastodon’s resource usage examples when considering which Linode plan to deploy on.
  2. Follow our Setting Up and Securing a Compute Instance guide to update your system. You may also wish to set the timezone, configure your hostname, create a limited user account, and harden SSH access. Replace each instance of example.com in this guide with your Mastodon site’s domain name.

  3. Complete the Add DNS Records steps to register a domain name that will point to your Mastodon Linode.

  4. Mastodon will serve its content over HTTPS, so you will need to obtain an SSL/TLS certificate. Request and download a free certificate from Let’s Encrypt using Certbot:

     sudo apt install software-properties-common
     sudo add-apt-repository ppa:certbot/certbot
     sudo apt update
     sudo apt install certbot
     sudo certbot certonly --standalone -d example.com


    These commands will download a certificate to /etc/letsencrypt/live/example.com/ on your Linode.

    When Certbot is run, you generally pass a command with the --deploy-hook option which reloads your web server. In your deployment, the web server will run in its own container, and the Certbot container would not be able to directly reload it. Another workaround would be needed to enable this architecture.
  5. Mastodon sends email notifications to users for different events, like when a user first signs up, or when someone else requests to follow them. You will need to supply an SMTP server which will be used to send these messages.

    Email restrictions on the Linode Platform
    In an effort to fight spam originating from our platform, outbound connections on ports 25, 465, and 587 are blocked by default on Compute Instances for some new accounts. These restrictions prevent applications from sending email. If you intend to send email from a Compute Instance, review the Send Email on the Linode Platform guide to learn more about our email policies and to request the removal of these restrictions.

    One option is to install your own mail server using the Email with Postfix, Dovecot, and MySQL guide. You can install such a mail server on the same Linode as your Mastodon server, or on a different one. If you follow this guide, be sure to create a notifications@example.com email address which you will later use for notifications. If you install your mail server on the same Linode as your Mastodon deployment, you can use your Let’s Encrypt certificate in /etc/letsencrypt/live/example.com/ for the mail server too.

    If you would rather not self-host an email server, you can use a third-party SMTP service. The instructions in this guide will also include settings for using Mailgun as your SMTP provider.

  6. This guide uses Mastodon’s Docker Compose deployment method. Before proceeding, install Docker and Docker Compose. If you haven’t used Docker before, it’s recommended that you review the Introduction to Docker and How to Use Docker Compose guides.

Install Docker

To install Docker CE (Community Edition), follow the instructions within one of the guides below:

To see installation instructions for other Linux distributions or operating systems like Mac or Windows, reference Docker’s official documentation here: Install Docker Engine

Install Docker Compose

Docker Compose is available in plugin and standalone variants. However, Docker’s official documentation prioritizes the plugin. Further, the plugin has a straightforward installation and works well with past Docker Compose commands.

These steps thus show how to install the Docker Compose plugin. If you are interested in installing the standalone Docker Compose application, follow Docker’s official installation guide.

Note

Many tutorials retain the Docker Compose standalone command format, which looks like the following:

docker-compose [command]

Be sure to replace this with the plugin’s command format when using this installation method. This typically just means replacing the hyphen with a space, as in:

docker compose [command]
  1. Enable the Docker repository for your system’s package manager. The repository is typically already enabled after you have installed the Docker engine. Follow our relevant guide on installing Docker to enable the repository on your system.

  2. Update your package manager, and install the Docker Compose plugin.

    • On Debian and Ubuntu systems, use the following commands:
    sudo apt update
    sudo apt install docker-compose-plugin
    • On CentOS, Fedora, and other RPM-based distributions, use the following commands:
    sudo yum update
    sudo yum install docker-compose-plugin

Set Up Mastodon

Mastodon has a number of components: PostgreSQL and Redis are used to store data, and three different Ruby on Rails services are used to power the web application. These are all combined in a Docker Compose file that Mastodon provides.

Download Mastodon and Configure Docker Compose

  1. SSH into your Linode and clone Mastodon’s Git repository:

     cd ~/
     git clone https://github.com/tootsuite/mastodon
     cd mastodon

  2. The Git repository includes an example docker-compose.yml which needs some updates to be used in your deployment. The first update you will make is to specify a release of the Mastodon Docker image. The Mastodon GitHub page maintains a chronological list of releases, and you should generally choose the latest version available.

    Open docker-compose.yml in your favorite text editor, comment-out the build lines, and add a version number to the image lines for the web, streaming, and sidekiq services:

    File: docker-compose.yml
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19

    version: '3'

    services:
      # [...]

      web:
    #    build: .
        image: tootsuite/mastodon:v2.4.2
        # [...]

      streaming:
    #    build: .
        image: tootsuite/mastodon:v2.4.2
        # [...]

      sidekiq:
    #    build: .
        image: tootsuite/mastodon:v2.4.2
        # [...]
    Note
    This guide uses Mastodon v2.4.2. At the time of writing, there was a known issue with v2.4.3 during installation.
  3. For the db, redis, web, and sidekiq services, set the volumes listed in this snippet:

    File: docker-compose.yml
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25

    version: '3'

    services:
      db:
        # [...]
        volumes:
          - ./postgres:/var/lib/postgresql/data

      redis:
        # [...]
        volumes:
          - ./redis:/data

      web:
        # [...]
        volumes:
          - ./public/system:/mastodon/public/system
          - ./public/assets:/mastodon/public/assets
          - ./public/packs:/mastodon/public/packs

      sidekiq:
        # [...]
        volumes:
          - ./public/system:/mastodon/public/system
          - ./public/packs:/mastodon/public/packs
  4. After the sidekiq service and before the final networks section, add a new nginx service. NGINX will be used to proxy requests on HTTP and HTTPS to the Mastodon Ruby on Rails application:

    File: docker-compose.yml
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30

    version: '3'

    services:
      # [...]

      sidekiq:
        # [...]

      nginx:
        build:
          context: ./nginx
          dockerfile: Dockerfile
        ports:
          - "80:80"
          - "443:443"
        volumes:
           - /etc/letsencrypt/:/etc/letsencrypt/
           - ./public/:/home/mastodon/live/public
           - /usr/share/nginx/html:/usr/share/nginx/html
        restart: always
        depends_on:
          - web
          - streaming
        networks:
          - external_network
          - internal_network

    networks:
      # [...]
      st
  5. Compare your edited docker-compose.yml with this copy of the complete file and make sure all the necessary changes were included.

  6. Create a new nginx directory within the Mastodon Git repository:

     mkdir nginx

  7. Create a file named Dockerfile in the nginx directory and paste in the following contents:

    File: nginx/Dockerfile
    1
    2
    3

    FROM nginx:latest

    COPY default.conf /etc/nginx/conf.d
  8. Create a file named default.conf in the nginx directory and paste in the following contents. Change each instance of example.com:

    File: nginx/default.conf
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90

    map $http_upgrade $connection_upgrade {
      default upgrade;
      ''      close;
    }

    server {
      listen 80;
      listen [::]:80;
      server_name example.com;
      # Useful for Let's Encrypt
      location /.well-known/acme-challenge/ { root /usr/share/nginx/html; allow all; }
      location / { return 301 https://$host$request_uri; }
    }

    server {
      listen 443 ssl http2;
      listen [::]:443 ssl http2;
      server_name example.com;

      ssl_protocols TLSv1.2;
      ssl_ciphers HIGH:!MEDIUM:!LOW:!aNULL:!NULL:!SHA;
      ssl_prefer_server_ciphers on;
      ssl_session_cache shared:SSL:10m;

      ssl_certificate     /etc/letsencrypt/live/example.com/fullchain.pem;
      ssl_certificate_key /etc/letsencrypt/live/example.com/privkey.pem;

      keepalive_timeout    70;
      sendfile             on;
      client_max_body_size 0;

      root /home/mastodon/live/public;

      gzip on;
      gzip_disable "msie6";
      gzip_vary on;
      gzip_proxied any;
      gzip_comp_level 6;
      gzip_buffers 16 8k;
      gzip_http_version 1.1;
      gzip_types text/plain text/css application/json application/javascript text/xml application/xml application/xml+rss text/javascript;

      add_header Strict-Transport-Security "max-age=31536000";

      location / {
        try_files $uri @proxy;
      }

      location ~ ^/(packs|system/media_attachments/files|system/accounts/avatars) {
        add_header Cache-Control "public, max-age=31536000, immutable";
        try_files $uri @proxy;
      }

      location @proxy {
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto https;
        proxy_set_header Proxy "";
        proxy_pass_header Server;

        proxy_pass http://web:3000;
        proxy_buffering off;
        proxy_redirect off;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;

        tcp_nodelay on;
      }

      location /api/v1/streaming {
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto https;
        proxy_set_header Proxy "";

        proxy_pass http://streaming:4000;
        proxy_buffering off;
        proxy_redirect off;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;

        tcp_nodelay on;
      }

      error_page 500 501 502 503 504 /500.html;
    }

Configure Mastodon

The configuration settings for Mastodon are held in the .env.production file at the root of the Mastodon Git repository.

  1. Create the .env.production file and copy in the following contents. Replace all instances of example.com with your domain name. Fill in the SMTP_SERVER and SMTP_PASSWORD fields with the domain and credentials from your mail server:

    File: .env.production
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27

    LOCAL_DOMAIN=example.com
    SINGLE_USER_MODE=false
    SECRET_KEY_BASE=
    OTP_SECRET=
    VAPID_PRIVATE_KEY=
    VAPID_PUBLIC_KEY=

    # Database settings
    DB_HOST=db
    DB_PORT=5432
    DB_NAME=postgres
    DB_USER=postgres
    DB_PASS=

    # Redis settings
    REDIS_HOST=redis
    REDIS_PORT=6379
    REDIS_PASSWORD=

    # Mail settings
    SMTP_SERVER=your_smtp_server_domain_name
    SMTP_PORT=587
    SMTP_LOGIN=notifications@example.com
    SMTP_PASSWORD=your_smtp_password
    SMTP_AUTH_METHOD=plain
    SMTP_OPENSSL_VERIFY_MODE=none
    SMTP_FROM_ADDRESS=Mastodon <notifications@example.com>

    If you’re using Mailgun for your mail service, remove all the lines from the Mail settings section and enter the following options:

    File: .env.production
    1
    2
    3
    4

    SMTP_SERVER=smtp.mailgun.org
    SMTP_PORT=587
    SMTP_LOGIN=your_mailgun_email
    SMTP_PASSWORD=your_mailgun_email_password
  2. Use Docker and Mastodon to generate a new value for the SECRET_KEY_BASE setting:

     SECRET_KEY_BASE=$(docker-compose run --rm web bundle exec rake secret)


    This creates a string of random characters. If you encounter an error in the next step, run the command again to generate another string.

  3. Insert the SECRET_KEY_BASE setting into .env.production using the sed command:

     sed -i -e "s/SECRET_KEY_BASE=/&${SECRET_KEY_BASE}/" .env.production

  4. Combine the previous two actions into one step to set a value for the OTP_SECRET setting in .env.production:

     sed -i "s/OTP_SECRET=$/&$(docker-compose run --rm web bundle exec rake secret)/" .env.production

  5. Generate values for VAPID_PRIVATE_KEY and VAPID_PUBLIC_KEYsettings:

     docker-compose run --rm web bundle exec rake mastodon:webpush:generate_vapid_key

  6. Copy the output from the previous command, open .env.production in your text editor, and paste the command output into the two lines for VAPID_PRIVATE_KEY and VAPID_PUBLIC_KEY.

  7. Build the Docker Compose file:

     docker-compose build


Complete the Mastodon Setup

  1. Set Mastodon as the owner of the public directory inside the Mastodon Git repository:

     sudo chown -R 991:991 public

    Note
    The UID that Mastodon will run under is 991, but there is no mastodon user created on your system.
  2. Create a directory which will hold Let’s Encrypt challenge files for future certificate renewals:

     sudo mkdir -p /usr/share/nginx/html

  3. Set up the database:

     docker-compose run --rm web bundle exec rake db:migrate

  4. Pre-compile Mastodon’s assets:

     docker-compose run --rm web bundle exec rake assets:precompile


    This command will take a while to complete.

  5. Start Mastodon:

     docker-compose up -d


Create your Mastodon User

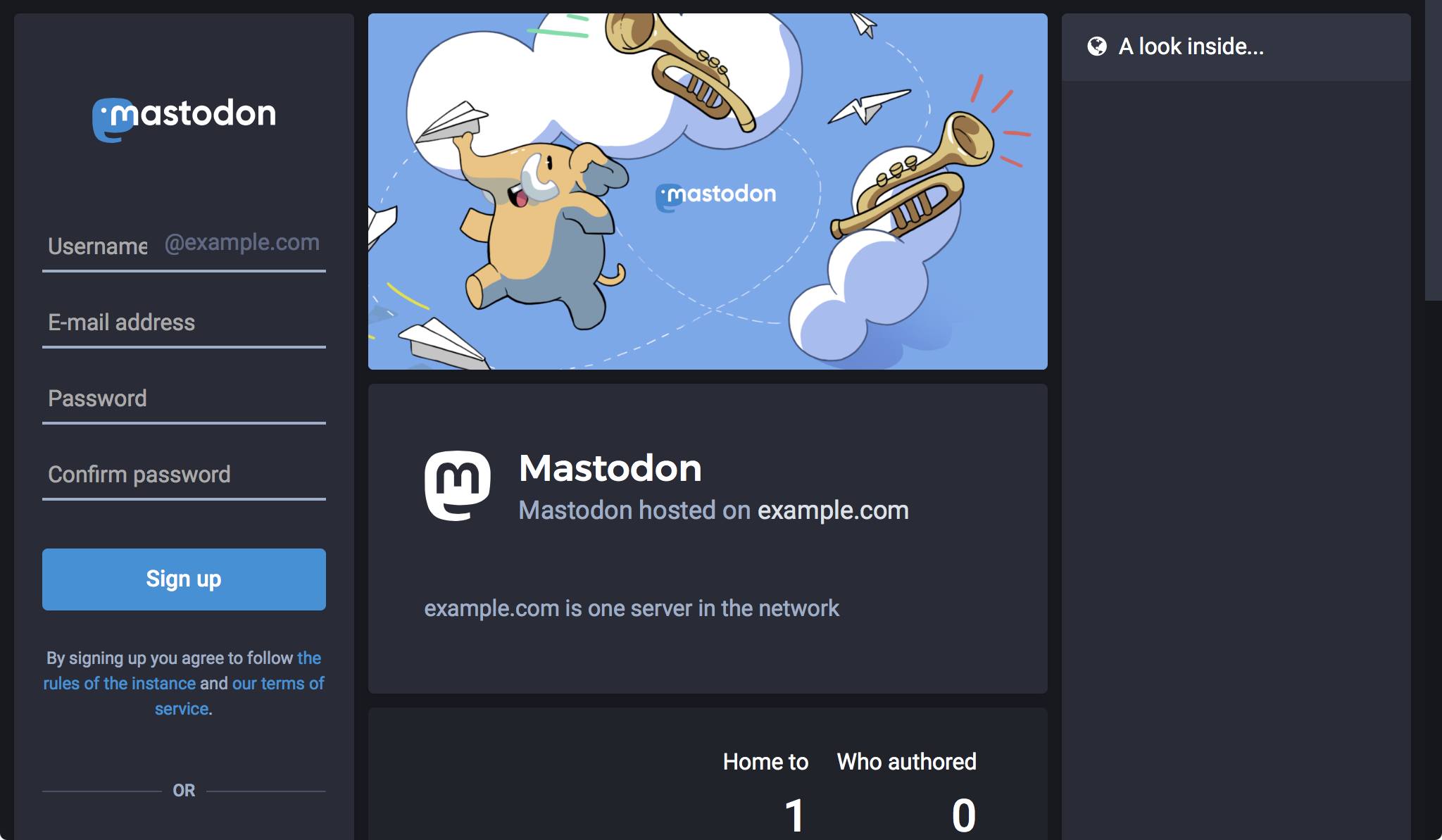

  1. Visit your domain in a web browser:

  2. Enter a new username, email address, and password to create a new user on your Mastodon instance. When communicating with users of other Mastodon servers, your full username is @your_username@example.com.

  3. Mastodon will attempt to send you a confirmation email. Check your email and click the provided link to confirm your registration.

    If you did not set up email notifications, you can manually confirm the new user by running the confirm_email task on the Docker container:

     docker-compose run web bundle exec rake mastodon:confirm_email USER_EMAIL=your_email_address

  4. Run the make_admin task on your Docker container to make this new user an admin for the Mastodon instance:

     docker-compose run web bundle exec rake mastodon:make_admin USERNAME=your_mastodon_instance_user


Troubleshooting

If your Mastodon site doesn’t load in your browser, try reviewing the logs generated by Docker for more information. To see these errors:

  1. Shut down your containers:

     cd mastodon
     docker-compose down

  2. Run Docker Compose in an attached state so that you can view the logs generated by each container:

     docker-compose up

  3. To shut down Docker Compose and return to the command prompt again, enter CTRL-C.

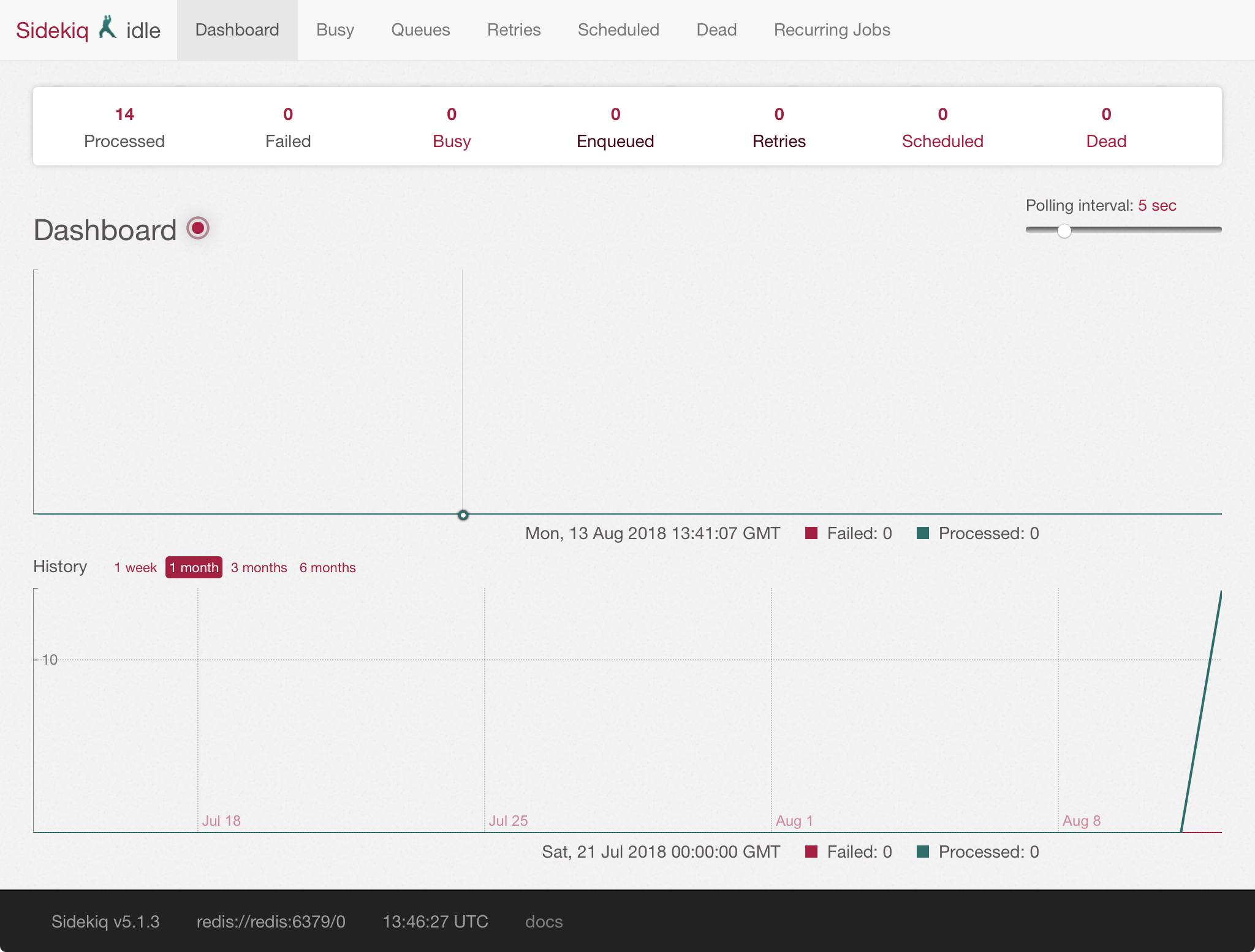

If your Mastodon site appears, but some specific site functions are not working, use the tools available in Mastodon’s administrative settings, found through example.com/admin/settings/edit. The Sidekiq dashboard displays the status of jobs issued by Mastodon:

Maintenance

To update your Mastodon version, review the instructions from the Mastodon GitHub’s Docker Guide. You should also review the Mastodon release notes.

Renew your Let’s Encrypt Certificate

  1. Open your Crontab in your editor:

     sudo crontab -e

  2. Add a line which will invoke Certbot at 11PM every day. Replace example.com with your domain:

     0 23 * * *   certbot certonly -n --webroot -w /usr/share/nginx/html -d example.com --deploy-hook='docker exec mastodon_nginx_1 nginx -s reload'

  3. You can test your new job with the --dry-run option:

     sudo bash -c "certbot certonly -n --webroot -w /usr/share/nginx/html -d example.com --deploy-hook='docker exec mastodon_nginx_1 nginx -s reload' --dry-run"


Using your New Mastodon Instance

Now that your new instance is running, you can start participating in the Mastodon network. The official Mastodon User’s Guide describes the mechanics of the application and network. Mastodon’s founder, Eugen Rochko, has also written a non-technical blog post that outlines his best practices for building a new community: How to start a Mastodon server.

Mastodon’s discussion forum hosts conversations about technical issues and governance/community concerns. Mastodon’s official blog highlights new releases and features articles on the philosophy of Mastodon’s design.

To add your new instance to the list at joinmastodon.org, submit it through instances.social.

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

This page was originally published on


Your Feedback Is Important

Let us know if this guide was helpful to you.


Join the conversation.
Read other comments or post your own below. Comments must be respectful, constructive, and relevant to the topic of the guide. Do not post external links or advertisements. Before posting, consider if your comment would be better addressed by contacting our Support team or asking on our Community Site.
The Disqus commenting system for Linode Docs requires the acceptance of Functional Cookies, which allow us to analyze site usage so we can measure and improve performance. To view and create comments for this article, please update your Cookie Preferences on this website and refresh this web page. Please note: You must have JavaScript enabled in your browser.
