Installing Plex Media Server on Ubuntu 18.04 Using Salt Masterless

Traducciones al Español
Estamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
Create a Linode account to try this guide with a $ credit.
This credit will be applied to any valid services used during your first  days.

Plex is a media server that allows you to stream video and audio content that you own to many different types of devices. In this guide you will learn how to use a masterless Salt minion to set up a Plex server, attach and use a Block Storage Volume, and how to connect to your media server to stream content to your devices.

Before You Begin

  1. Familiarize yourself with our Getting Started guide and complete the steps for setting your Linode’s hostname and timezone.

  2. Follow the steps in the Setting Up and Securing a Compute Instance guide.

  3. Update your system:

    sudo apt-get update && sudo apt-get upgrade

  4. You will need to create a Block Storage Volume and attach it to your Linode. You will format and mount the drive as part of this guide. This volume will be used to store your media, so you should pick a size that’s appropriate for your media collection, though you can resize the volume later if you need more storage. For more on Block Storage, see our Block Storage Overview guide.

  5. Plex requires an account to use their service. Visit the Plex website to sign up for an account if you do not already have one.

Note
The steps in this guide require root privileges. Be sure to run the steps below with the sudo prefix. For more information on privileges, see our Users and Groups guide.

Prepare the Salt Minion

  1. On your Linode, create the /srv/salt and /srv/pillar directories. These are where the Salt state files and Pillar files will be housed.

    mkdir /srv/salt && mkdir /srv/pillar

  2. Install salt-minion via the Salt bootstrap script:

    curl -L https://bootstrap.saltstack.com -o bootstrap_salt.sh
    sudo sh bootstrap_salt.sh

  3. The Salt minion will use the official Plex Salt Formula, which is hosted on the SaltStack GitHub repository. In order to use a Salt formula hosted on an external repository, you will need GitPython installed. Install GitPython:

     sudo apt-get install python-git


Modify the Salt Minion Configuration

  1. Because the Salt minion is running in masterless mode, you will need to modify the minion configuration file (/etc/salt/minion) to instruct Salt to look for state files locally. Open the minion configuration file in a text editor, uncomment the line #file_client: remote, and set it to local:

    File: /etc/salt/minion
    1
    2
    3
    4
    5
    6
    7
    8
    9

    ...

    # Set the file client. The client defaults to looking on the master server for
    # files, but can be directed to look at the local file directory setting
    # defined below by setting it to "local". Setting a local file_client runs the
    # minion in masterless mode.
    file_client: local

    ...
  2. There are some configuration values that do not normally exist in /etc/salt/minion which you will need to add in order to run your minion in masterless mode. Copy the following lines into the end of /etc/salt/minion:

    File: /etc/salt/minion
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10

    ...

    fileserver_backend:
      - roots
      - gitfs

    gitfs_remotes:
      - https://github.com/saltstack-formulas/plex-formula.git

    gitfs_provider: gitpython

    The fileserver_backend block instructs the Salt minion to look for Salt configuration files in two places. First, it tells Salt to look for Salt state files in our minion’s roots backend (/srv/salt). Secondly, it instructs Salt to use the Git Fileserver (gitfs) to look for Salt configuration files in any Git remote repositories that have been named in the gitfs_remotes section. The address for the Plex Salt formula’s Git repository is included in the gitfs_remotes section.

    Note
    It is best practice to create a fork of the Plex formula’s Git repository on GitHub and to add your fork’s Git repository address in the gitfs_remotes section. This will ensure that any further changes to the upstream Plex formula which might break your current configuration can be reviewed and handled accordingly, before applying them.

    Lastly, GitPython is specified as the gitfs_provider.

Create the Salt State Tree

  1. Create a Salt state top file at /srv/salt/top.sls and copy in the following configuration. This file tells Salt to look for state files in the plex folder of the Plex formula’s Git repository, and for a state files named disk.sls and directory.sls, which you will create in the next steps.

    File: /srv/salt/top.sls
    1
    2
    3
    4
    5

    base:
      '*':
        - plex
        - disk
        - directory
  2. Create the disk.sls file in /srv/salt:

    File: /srv/salt/disk.sls
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11

    disk.format:
      module.run:
        - device: /dev/disk/by-id/scsi-0Linode_Volume_{{ pillar['volume_name'] }}
        - fs_type: ext4

    /mnt/plex:
      mount.mounted:
        - device: /dev/disk/by-id/scsi-0Linode_Volume_{{ pillar['volume_name'] }}
        - fstype: ext4
        - mkmnt: True
        - persist: True

    This file instructs Salt to prepare your Block Storage Volume for use with Plex. It first formats your Block Storage Volume with the ext4 filesystem type by using the disk.format Salt module, which can be run in a state file using module.run. Then disk.sls instructs Salt to mount your volume at /mnt/plex, creating the mount target if it does not already exist with mkmnt, and persisting the mount to /etc/fstab so that the volume is always mounted at boot.

  3. Create the directory.sls file in /srv/salt:

    File: /srv/salt/directory.sls
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20

    /mnt/plex/plex-media:
      file.directory:
        - require:
          - mount: /mnt/plex
        - user: username
        - group: plex

    /mnt/plex/plex-media/movies:
      file.directory:
        - require:
          - mount: /mnt/plex
        - user: username
        - group: plex

    /mnt/plex/plex-media/television:
      file.directory:
        - require:
          - mount: /mnt/plex
        - user: username
        - group: plex

    The directories that are created during this step are for organizational purposes, and will house your media. Make sure you replace username with the name of the limited user account you created when following the Setting Up and Securing a Compute Instance guide. The location of the directories is the volume you mounted in the previous step. If you wish to add more directories, perhaps one for your music media, you can do so here, just be sure to include the - require block, as this prevents Salt from trying to create the directory before the Block Storage Volume has been mounted.

  4. Go to the Plex Media Server download page and note the most recent version of their Linux distribution. At the time of writing, the most recent version is 1.13.9.5456-ecd600442. Create the plex.sls Pillar file in /srv/pillar and change the Plex version number and the name of your Block Storage Volume as necessary:

    File: /srv/pillar/plex.sls
    1
    2
    3

    plex:
      version: 1.13.9.5456-ecd600442
    volume_name: plex
  5. Create the Salt Pillar top file in /srv/pillar. This file will instruct Salt to look for the plex.sls Pillar file you created in the previous step.

    File: /srv/pillar/top.sls
    1
    2
    3

    base:
      '*':
        - plex
  6. Apply your Salt state locally using salt-call:

    salt-call --local state.apply


    You should see a list of the changes Salt applied to your system. You have successfully installed Plex using Salt.

Set Up Plex

Initial Configuration

  1. You’ll need to create an SSH tunnel to your Linode to connect to Plex’s web UI. On your local computer, run the following command, replacing <your_ip_address> with your Plex server’s IP address.:

    ssh username@<your_ip_address> -L 8888:localhost:32400

  2. In a browser, navigate to http://localhost:8888/web/.

  3. Sign in with your Plex username and password.

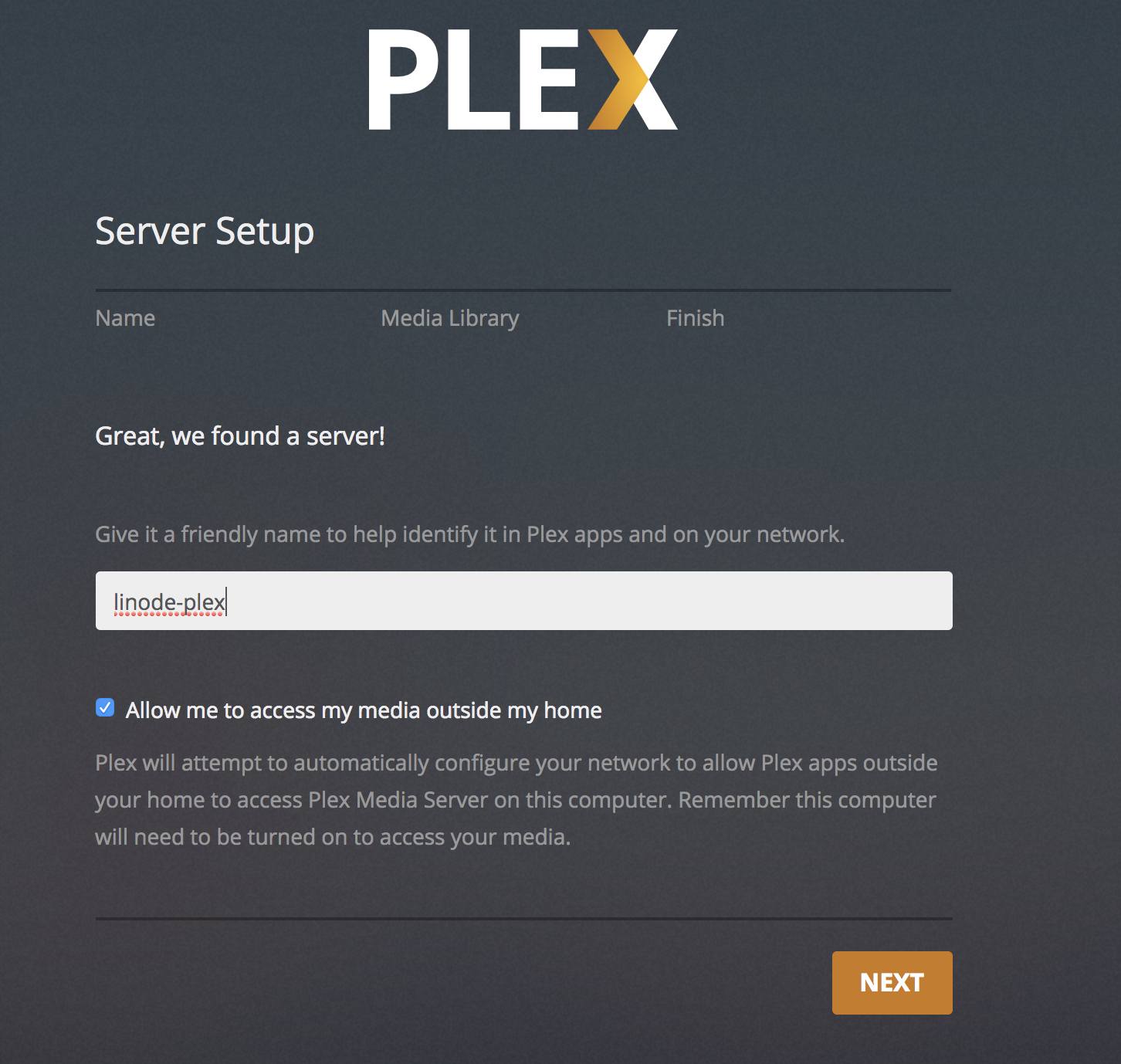

  4. Name your media server. This example uses the name linode-plex. Be sure to check the box that reads Allow me to access my media outside my home and then click Next.

Organize Your Media

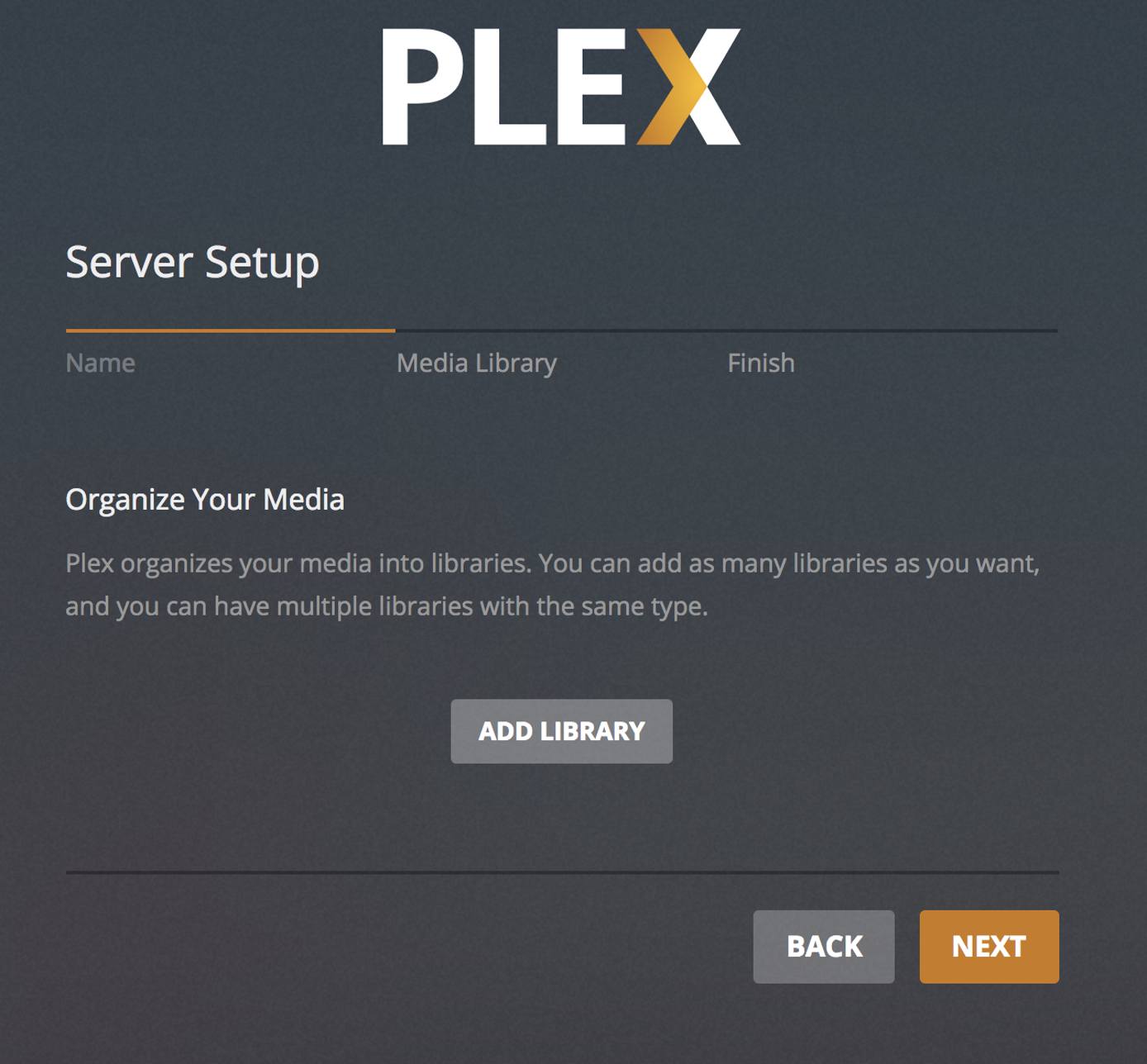

  1. Click on the Add Library button:

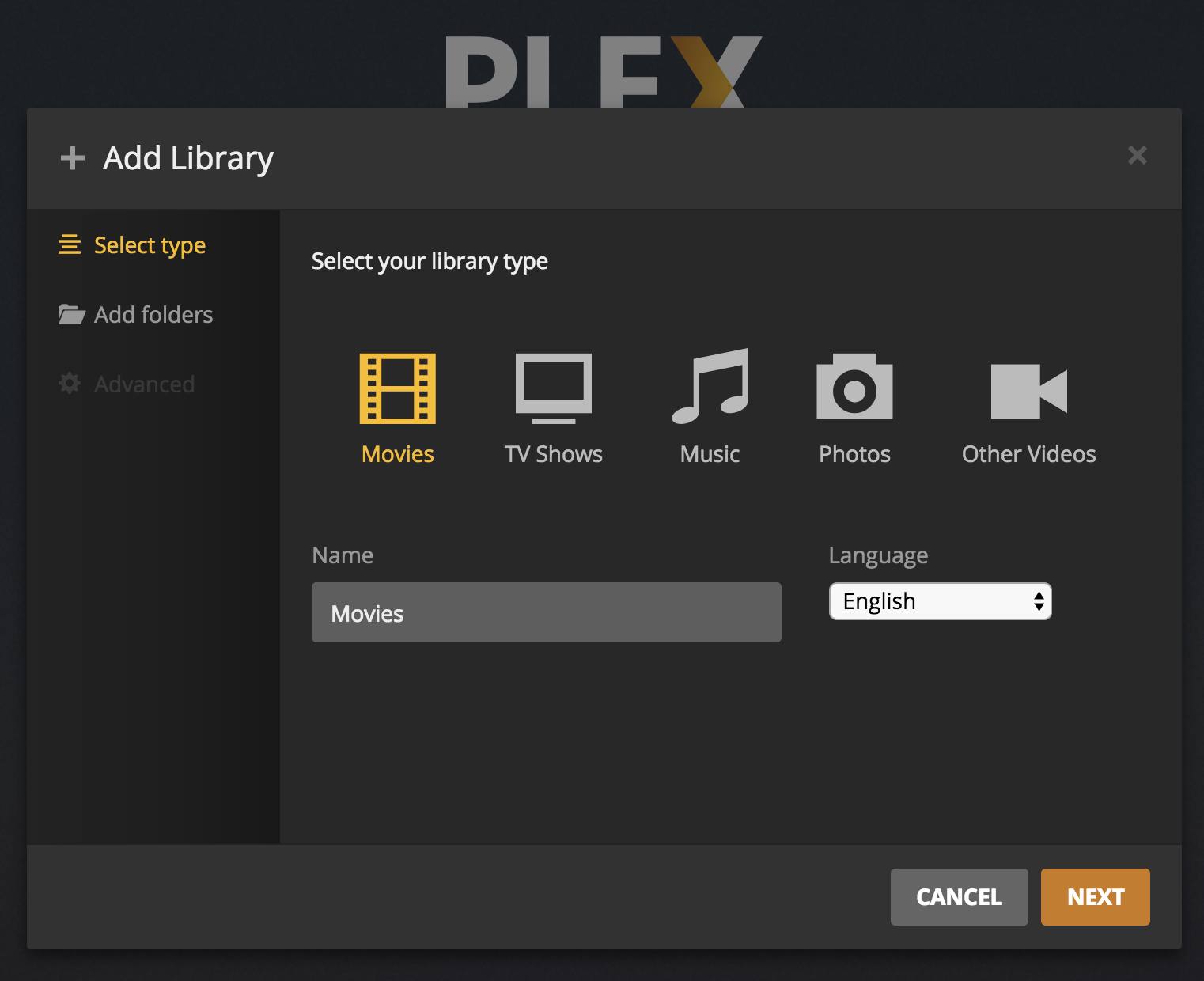

  2. Select Movies and click Next:

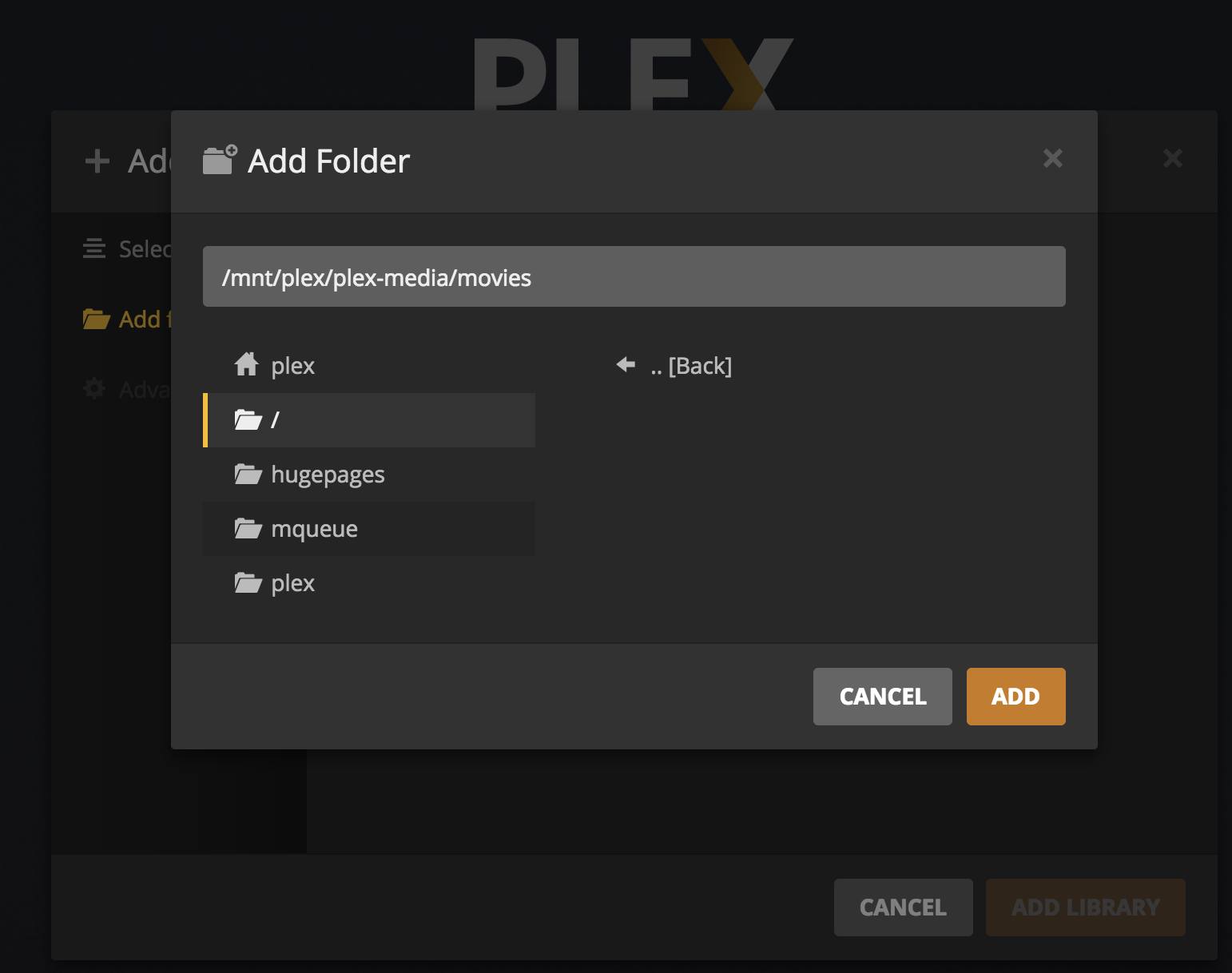

  3. Click Browse for Media Folder and select the appropriate folder at /mnt/plex/plex-media/movies. Then click Add:

  4. Repeat the process to add your ‘Television’ folder.

  5. When you are done adding your libraries, click Add Library.

  6. To continue the configuration process, click Next.

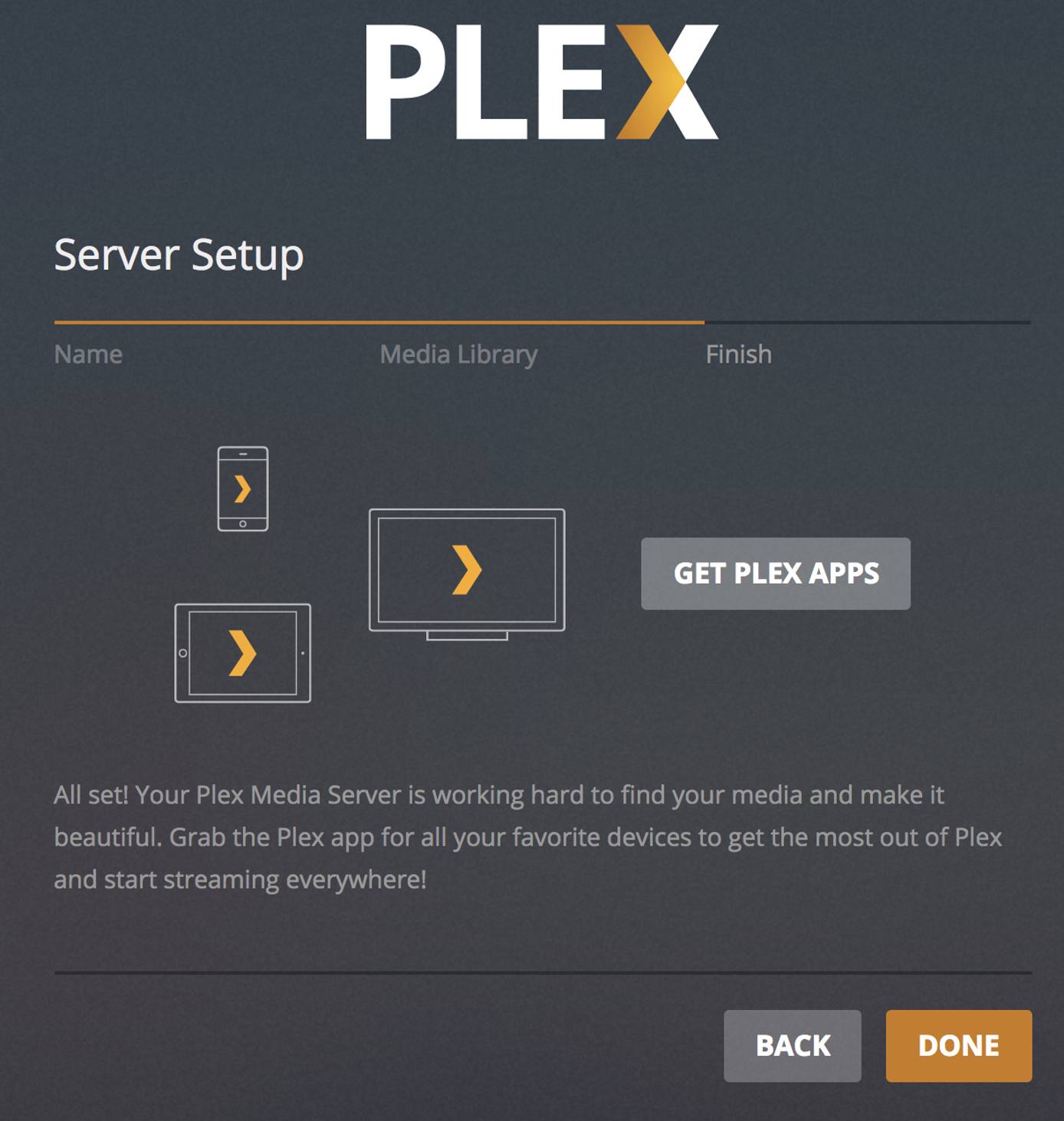

  7. Click on Get Plex Apps to download the appropriate Plex client for your device. Then click Done.

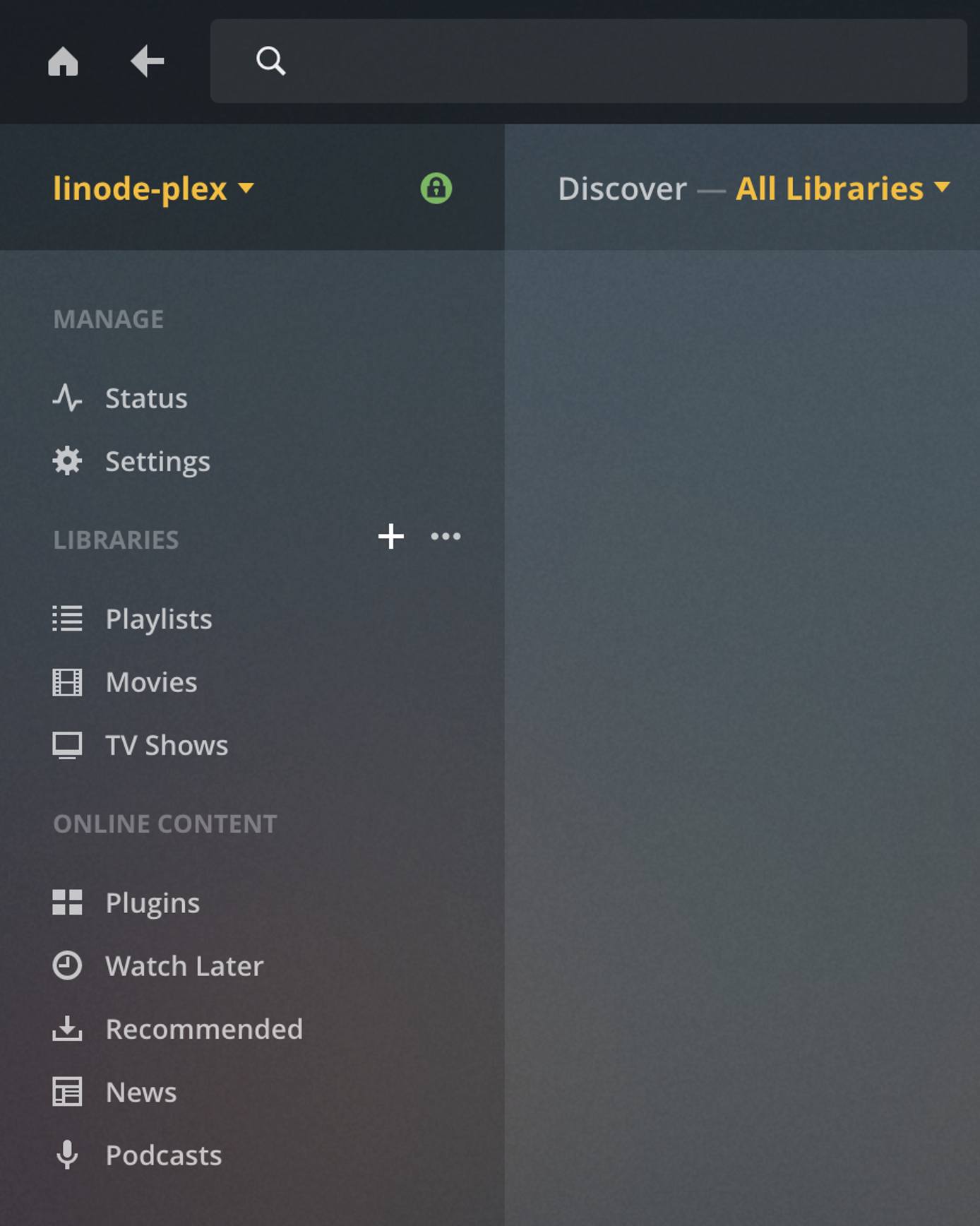

  8. In the future you can add more libraries by hovering over the menu and clicking the plus sign (+) next to LIBRARIES.

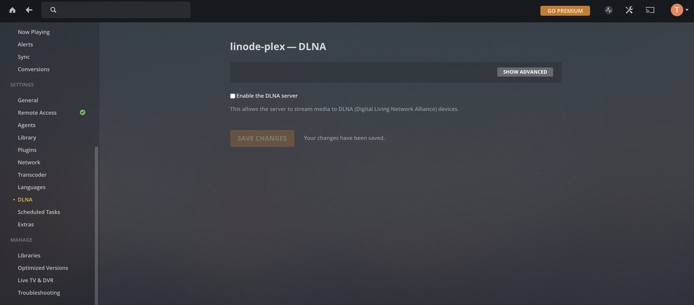

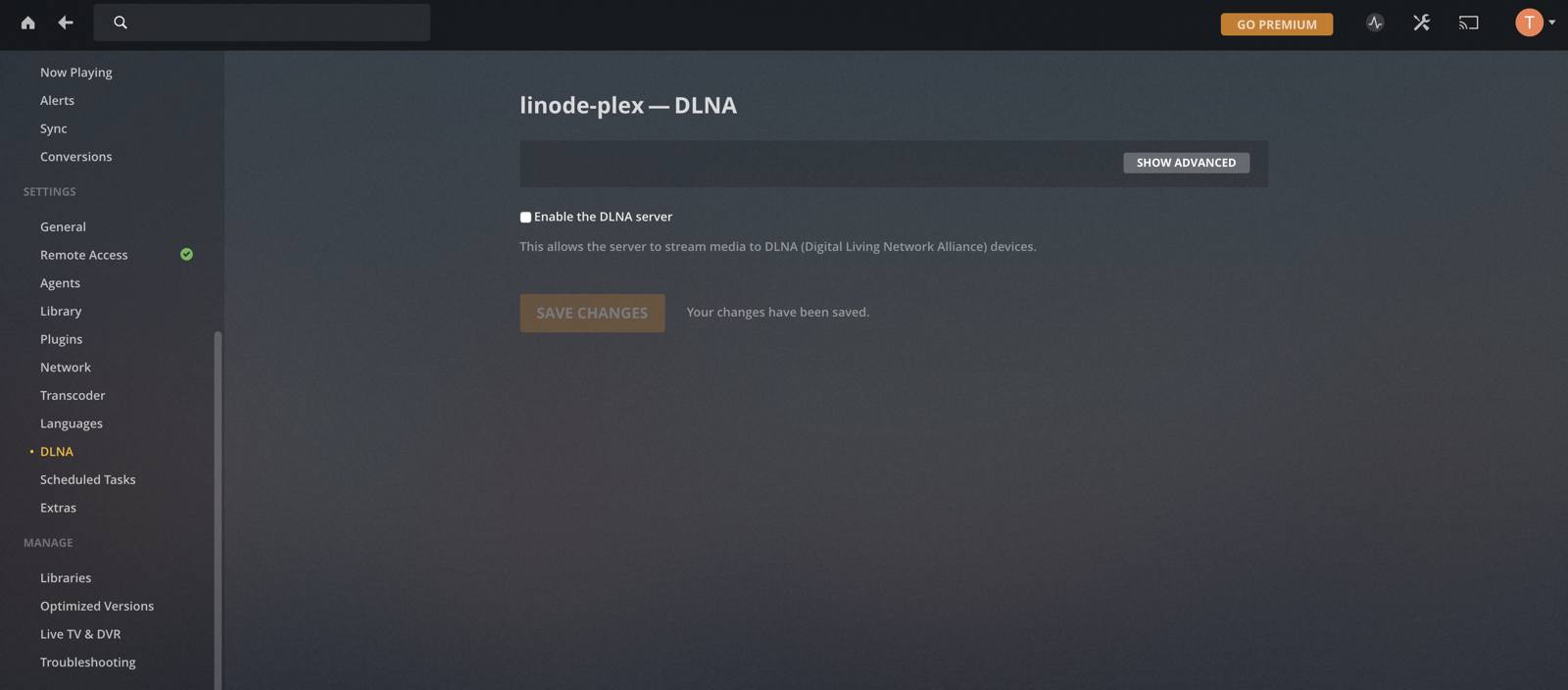

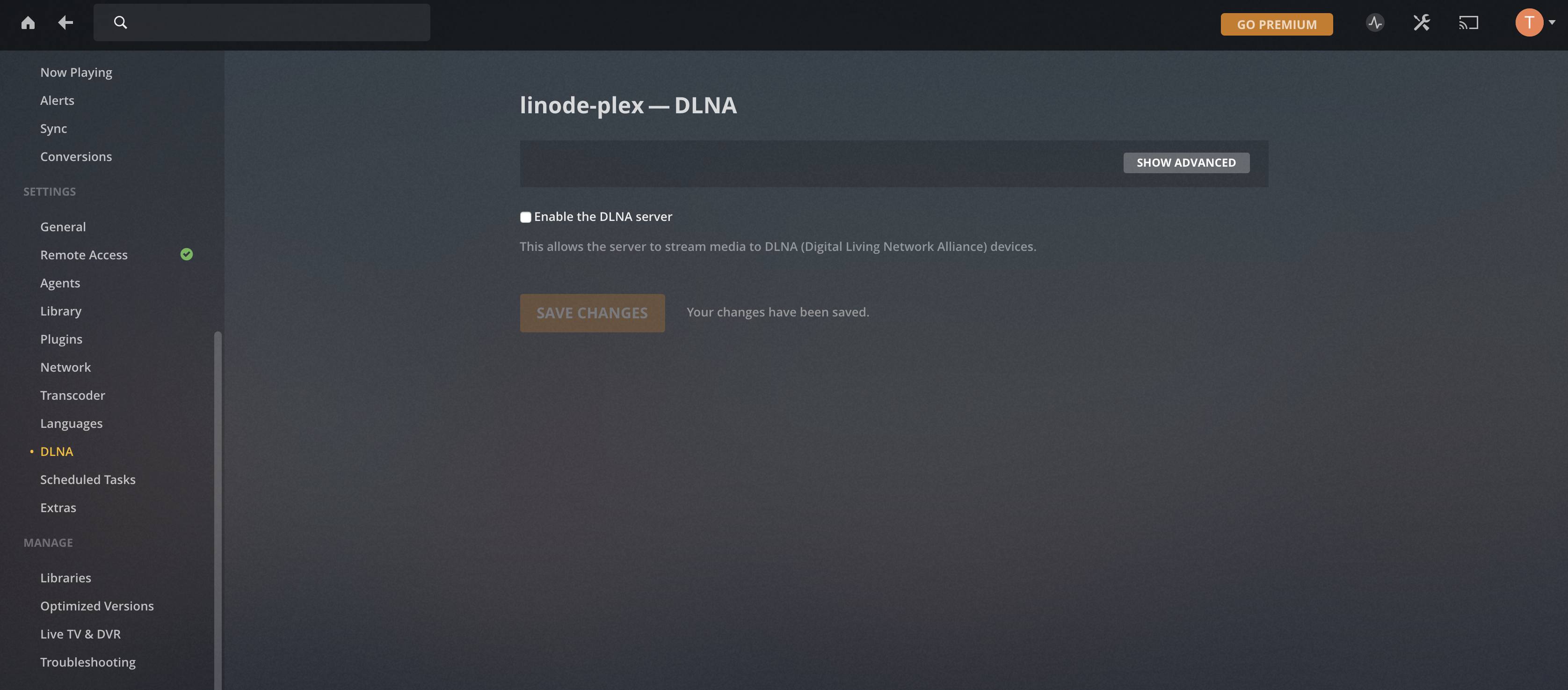

DLNA is a protocol that incorporates Universal Plug and Play (or UPnP) standards for digital media sharing across devices. If you do not wish to make use of it, it’s recommended that you disable this feature, as it is openly connectable on port 1900. From the Plex web interface, click the wrench icon in the upper right corner, and navigate to the DLNA section under SETTINGS. Uncheck Enable the DLNA server, and click Save Changes:

Connect to Your Plex Server

  1. Visit the Plex Apps download page or the app store on your device to download Plex Media Player if you have not already done so.

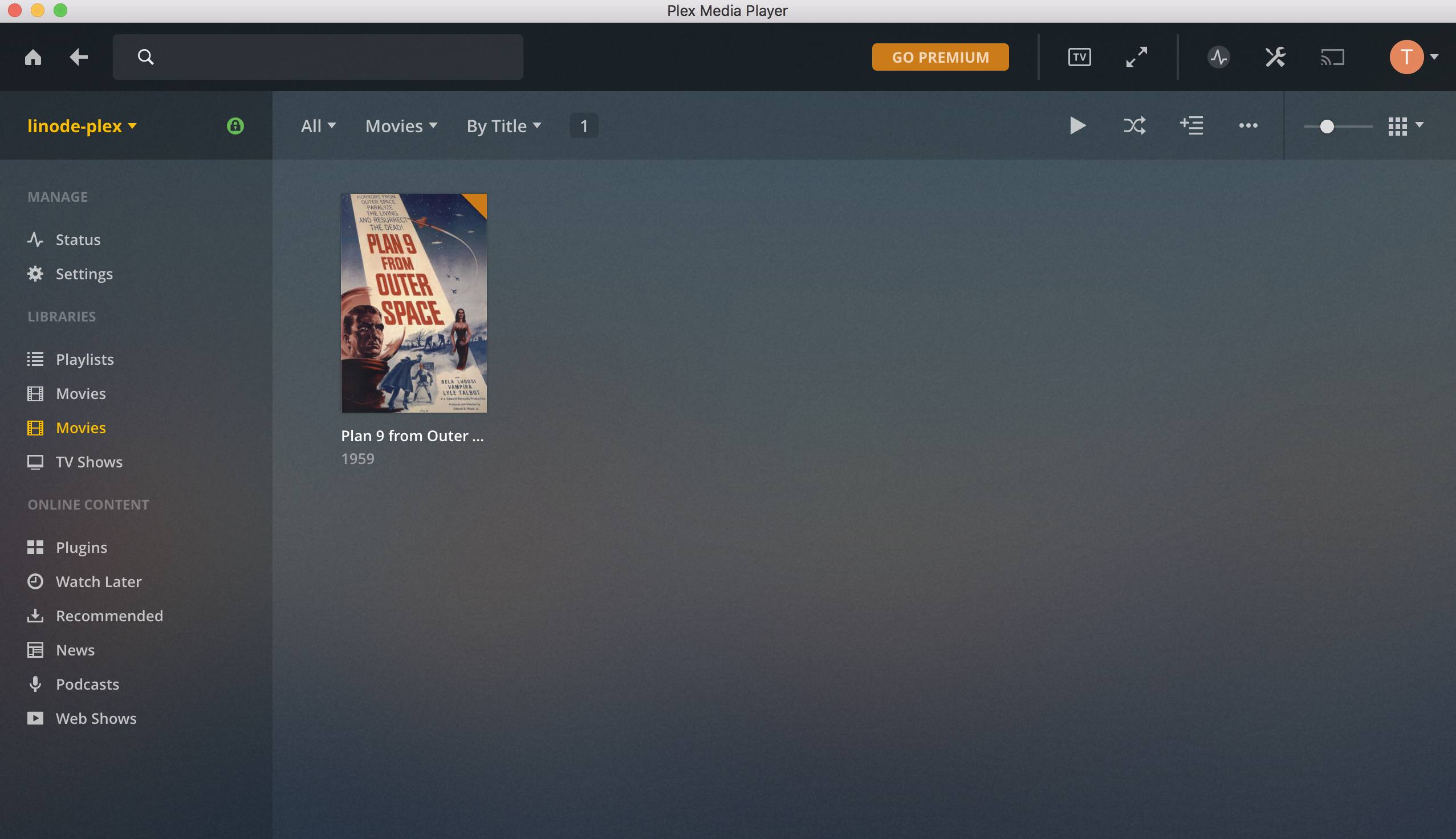

  2. Open your Plex app. The example provided here will use the Plex Media Player for macOS.

  3. Sign in to Plex.

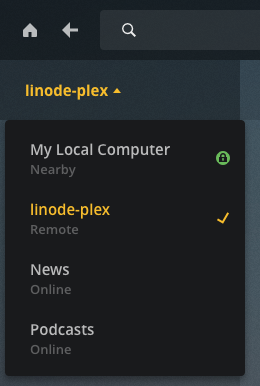

  4. On the left there’s a dropdown menu where you can select your server by the name you chose. Select your server.

    Connect to your Plex Server

  5. You are now able to stream your content with Plex.

Transfer Media to Your Server

  1. You can use SCP to transfer media to your server from your local computer. Replace your username and 123.456.7.8 with the IP address of your Linode.

    scp example_video.mp4 username@123.456.7.8:/mnt/plex/plex-media/movies

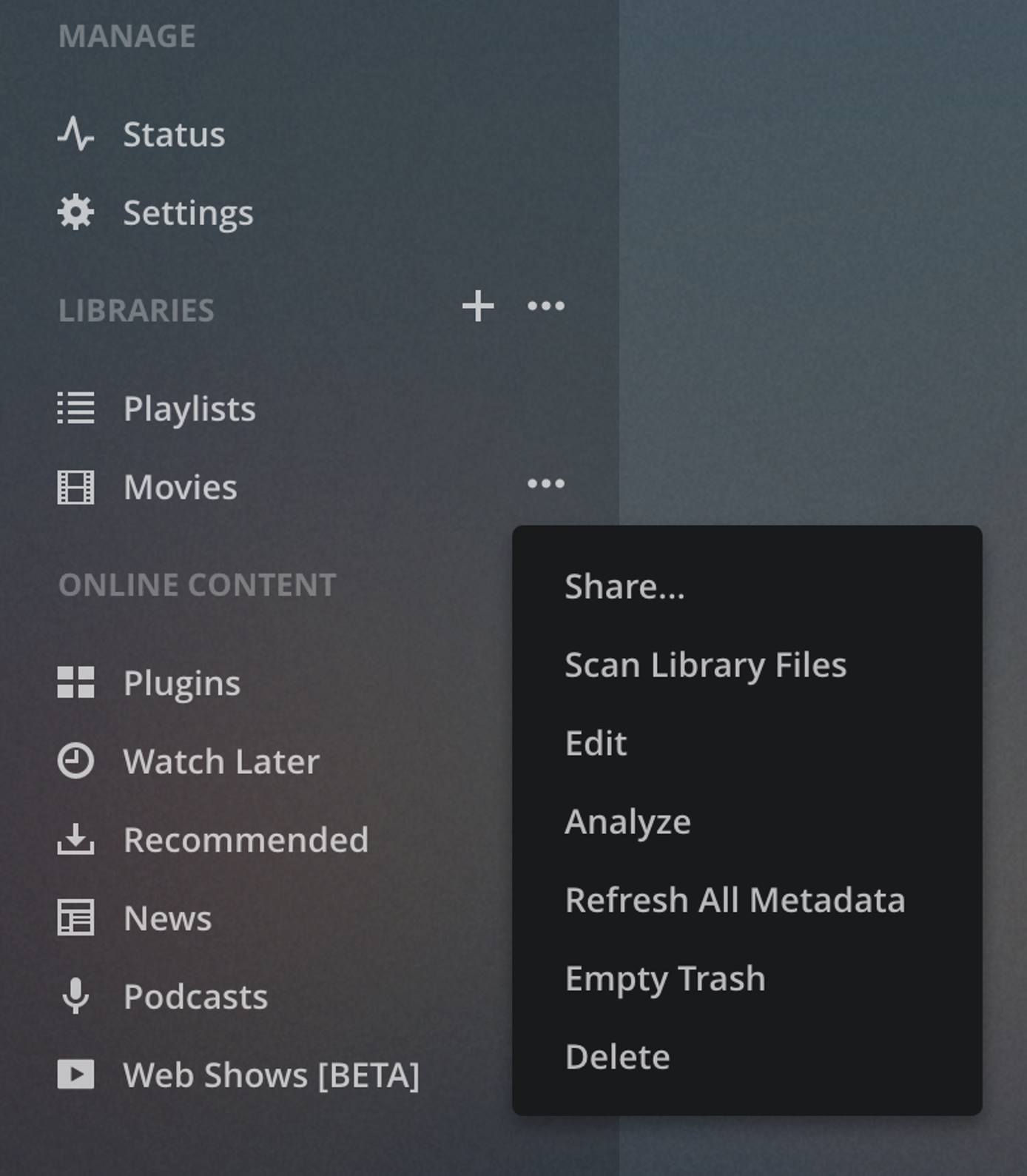

  2. Once you’ve transferred files to your Plex media server, you may need to scan for new files before they show up in your Library. Click on the ellipsis next to a Library and select Scan Library Files.

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.
