Pritunl VPN Server and Management Panel on Ubuntu 14.04

Traducciones al Español
Estamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
Deprecated

This guide has been deprecated and is no longer being maintained.

Pritunl is an open source VPN server and management panel. It gives the user the power of the OpenVPN protocol while using an intuitive web interface. This tutorial will show you how to install, configure, and connect to Pritunl VPN.

Note
This guide is written for a non-root user. Commands that require elevated privileges are prefixed with sudo. If you’re not familiar with the sudo command, reference the Users and Groups guide.

Before You Begin

  1. Have a Linode running Ubuntu 14.04. Follow the Getting Started and Securing Your Server guides for help configuring the Linode.

  2. Ensure the Linode is up-to-date:

    sudo apt-get update && sudo apt-get upgrade

  3. Add Pritunl’s APT repository and update the package lists:

    echo "deb http://repo.mongodb.org/apt/ubuntu trusty/mongodb-org/3.0 multiverse" > /etc/apt/sources.list.d/mongodb-org-3.0.list
    echo "deb http://repo.pritunl.com/stable/apt trusty main" > /etc/apt/sources.list.d/pritunl.list

  4. Add repo keys for apt to validate against

    apt-key adv --keyserver hkp://keyserver.ubuntu.com --recv 7F0CEB10
    apt-key adv --keyserver hkp://keyserver.ubuntu.com --recv CF8E292A

  5. Update the package cache

    sudo apt-get update

  6. If you have a firewall running on the Linode, add exceptions for Pritunl’s Web UI and server:

    sudo iptables -A INPUT -p udp -m udp --sport 9700 --dport 1025:65355 -j ACCEPT
    sudo iptables -A INPUT -p tcp -m tcp --sport 9700 --dport 1025:65355 -j ACCEPT
    sudo iptables -A INPUT -p `your protocol here` -m `your protocol here` --sport `your_port_here` --dport 1025:65355 -j ACCEPT

    Note
    If you’ve configured the firewall according to the Securing Your Server guide, be sure to add these port ranges to the /etc/iptables.firewall.rules file.

Install Pritunl

  1. Install Pritunl and its required dependencies:

    sudo apt-get install python-software-properties pritunl mongodb-org

  2. Start the Pritunl service:

    sudo service pritunl start

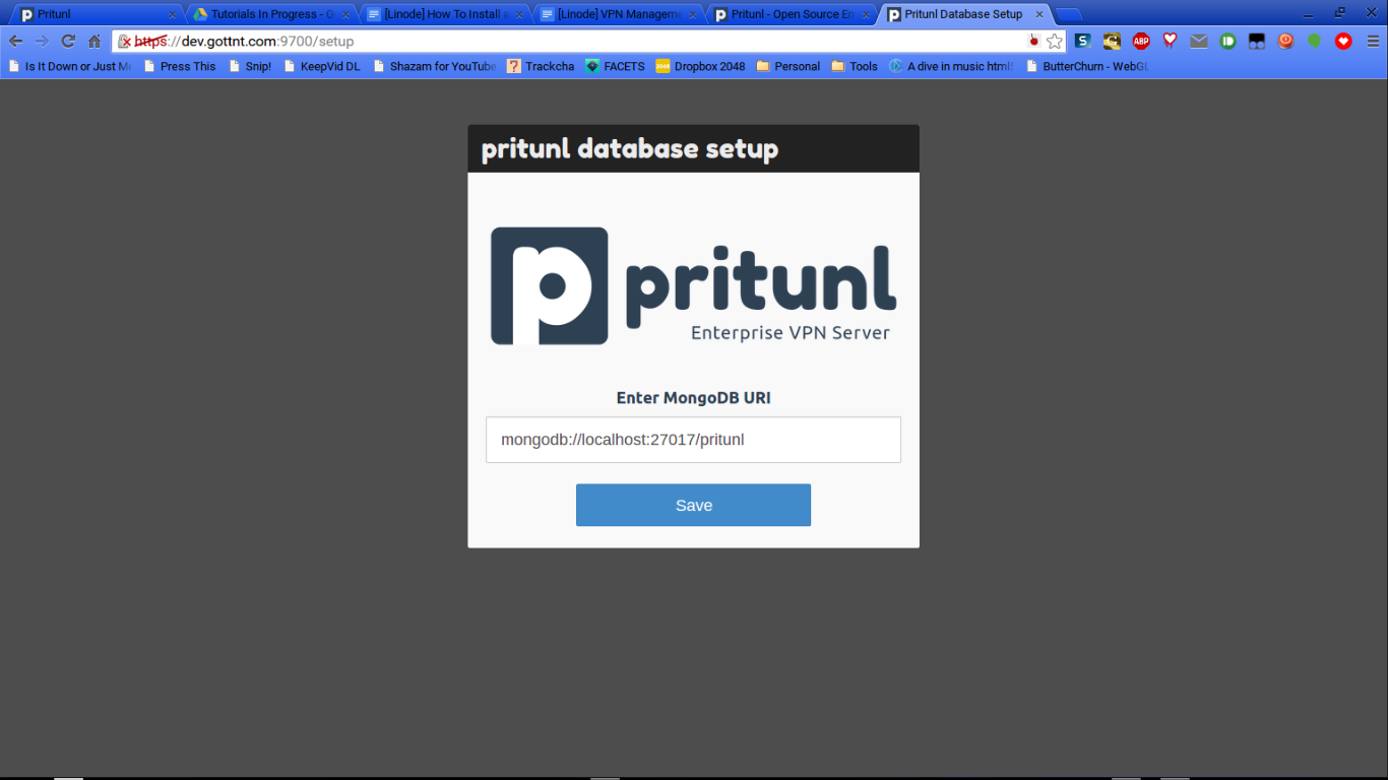

  3. Open a web browser on your computer, and navigate to https://123.45.67.89:9700, replacing 123.45.67.89 with your Linode’s IP address. You will see a screen similar to this:

  4. Connect to the database. The installer has already populated the MongoDB URI. If it looks correct, click Save.

    Alternatively, you may enter any valid MongoDB URI to use as the database for Pritunl.

Configuring Pritunl

  1. Login with the following information:

    • Username: pritunl
    • Password: pritunl

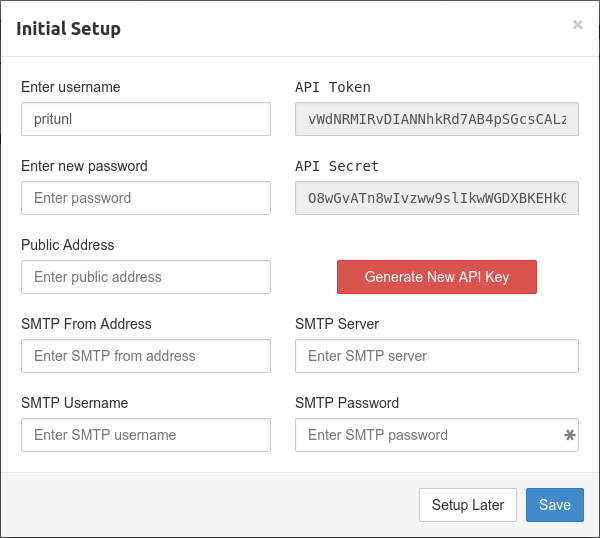

  2. The Initial Setup form will appear:

    Pritunl setup screen

    Fill out the form, and press Save.

    Note

    The SMTP settings are not required and will not do anything without a license.

    If you have a license, Click on the Upgrade to Premium button on the upper right, and use the form to enter your license.

  3. Go to the Users tab. Here, you will create your organizations and users. Begin by clicking Add Organization and entering a name. Next, click Add User and add a user to the organization you just created.

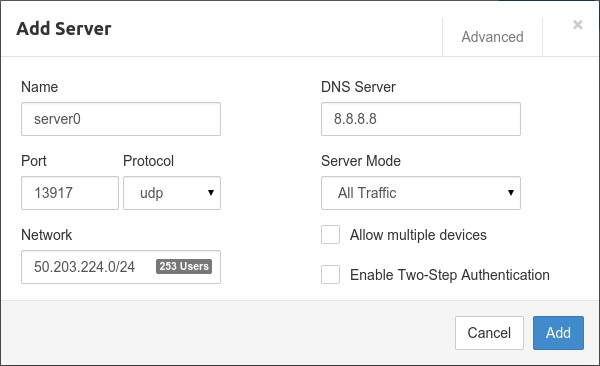

  4. Go to the Servers tab. Click Add server. You will see a screen like the following:

    Pritunl server setup screen

    If a firewall is set up, make sure that the Port and Protocol fields match the firewall exceptions added earlier.

  5. Click the Attach Organization button. Attach the organization to the server.

Connecting to the Server

To connect to the server, you can use any OpenVPN compatible client. For Android or iOS, you can use the free OpenVPN Connect app available in the Google Play or iOS App Store. For Linux, there is an official client available for Ubuntu. Mac and Windows users can use any OpenVPN client.

To get the keys, there are two options:

  • Next to your username, there is a Online/Offline indicator. Next to that, there are two buttons. One with a link icon, and another with a download icon.

  • The download icon will download the keyfiles as a TAR file.

The link icon will display a link that you can give to your users to download their key. These links are unique to the user, and are temporary and expire after they have been used or within 24 hours, whichever comes first.
