How to Use LUKS for Full Disk Encryption on Linux

Using LUKS encryption to Create a Secure Disk on Debian 8

Full disk encryption protects the information stored on your Linode’s disks by converting it into unreadable code that can only be deciphered with a unique password. Nearly everything on the disk is encrypted, including the swap space and temporary files.

This guide will show you how to deploy a Linux distribution with LUKS filesystem encryption. While this demonstration will use Debian 8 (Jessie), the process should be similar for any Linux distribution, provided that the respective distro’s installer includes a LUKS encryption option.

The Debian 8 guided encryption option in this guide makes use of a process commonly referred to as LVM on LUKS, which allows you to create several logical volumes within an encrypted block device. This method offers advantages in terms of scalability and convenience, as your password only needs to be entered once to access all of the volumes within your encrypted disk.

Before you Begin

1. Create a Linode in the data center of your choice.
2. Delete the disks in the Linode that you created.
3. Determine the installation media you’ll be using to deploy your custom distribution, and take note of its size. In this example, we’re using Debian’s network boot option.

Prepare Your Linode for Encrypted Debian Installation

1. Create two raw disk images from the Linode’s Dashboard:

   • A disk labeled Installer. The size of this disk will depend upon the size of your distribution’s installer, but it’s recommended to make it slightly larger than the space taken up by the install media itself. For this example, the installer disk will be 300MB in size, giving us plenty of room for the Debian network installer.
   • A disk labeled Boot. This will take up the rest of the free space available on your Linode.

2. Create two configuration profiles and disable the options under Filesystem / Boot Helpers for each of them, as well as the Lassie shutdown watchdog under the Settings menu. Both profiles will use the Direct Disk option from the Kernel drop down menu:

   Installer profile

   • Label: Installer
   • Kernel: Direct Disk
   • /dev/sda: Boot disk image.
   • /dev/sdb: Installer disk image.
   • root / boot device: Standard /dev/sdb

   Boot profile

   • Label: Boot
   • Kernel: Direct Disk
   • /dev/sda: Boot disk image.
   • root / boot device: Standard /dev/sda

3. Boot into Rescue Mode with your Installer disk mounted to /dev/sda, and connect to your Linode using the Lish Console.

4. Once in Rescue Mode, download the Debian installation media and copy it to your Installer disk:

   Note

   As an additional security step, you can use the keys provided in the same directory as the iso to verify the authenticity of the image.

   wget http://ftp.debian.org/debian/dists/stable/main/installer-amd64/current/images/netboot/mini.iso
   dd if=mini.iso of=/dev/sda


5. Reboot into your Installer configuration profile, and open the Glish graphical console from your Linode’s Dashboard.

Install the Operating System

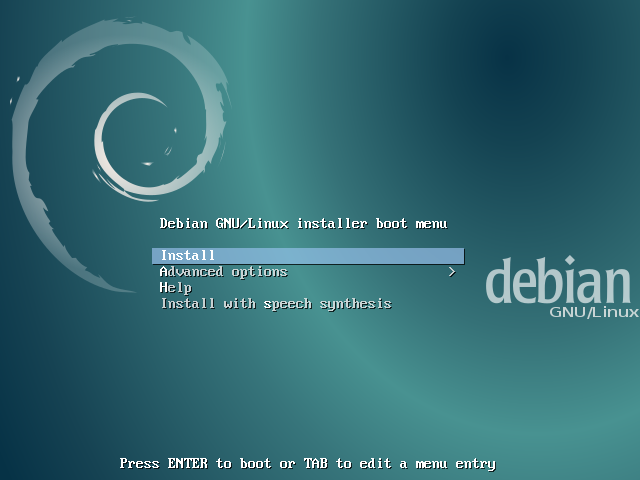

1. From the Glish console, you can view your distribution’s installer. Select Install and press the Enter key:

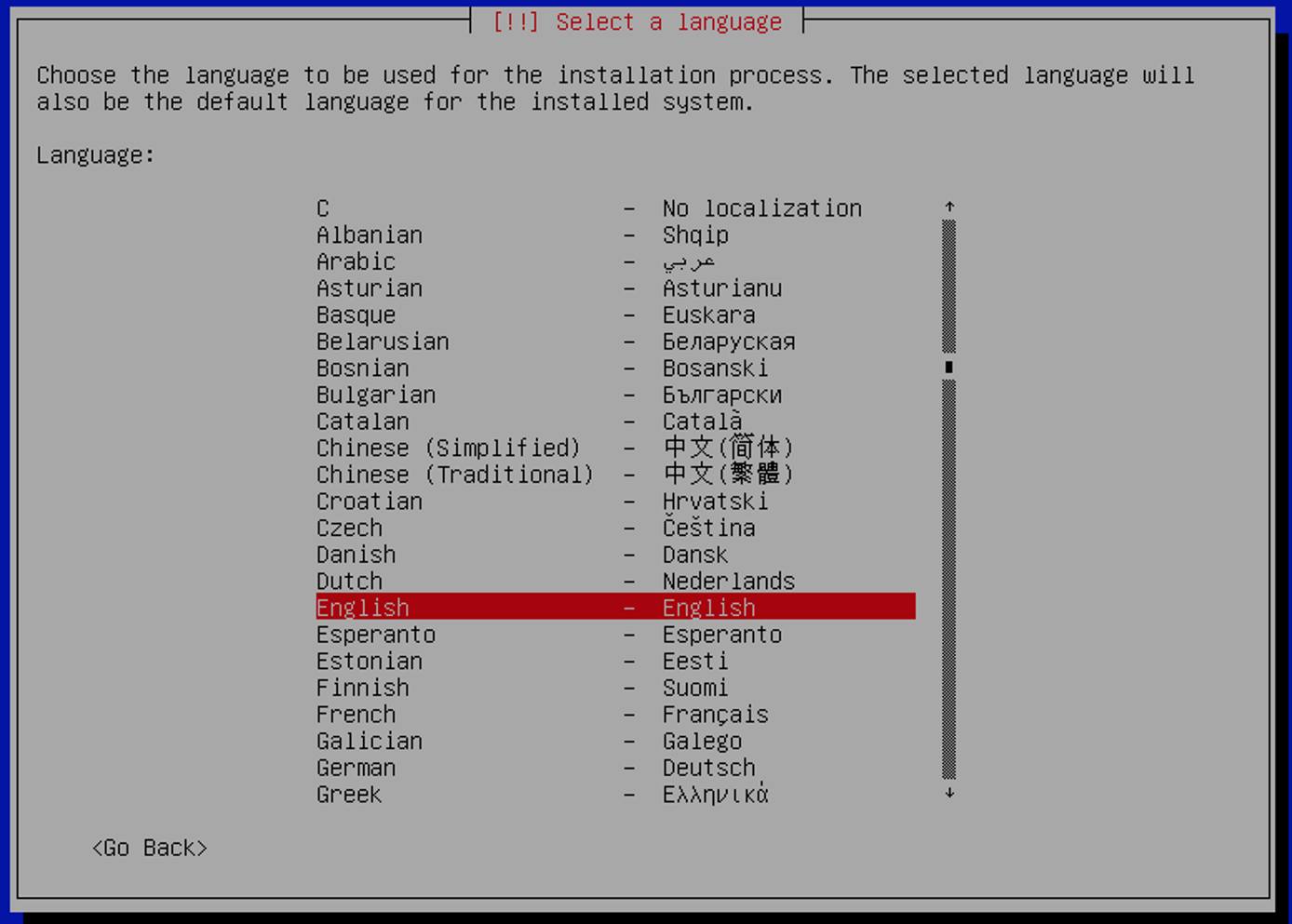

2. Choose your language:

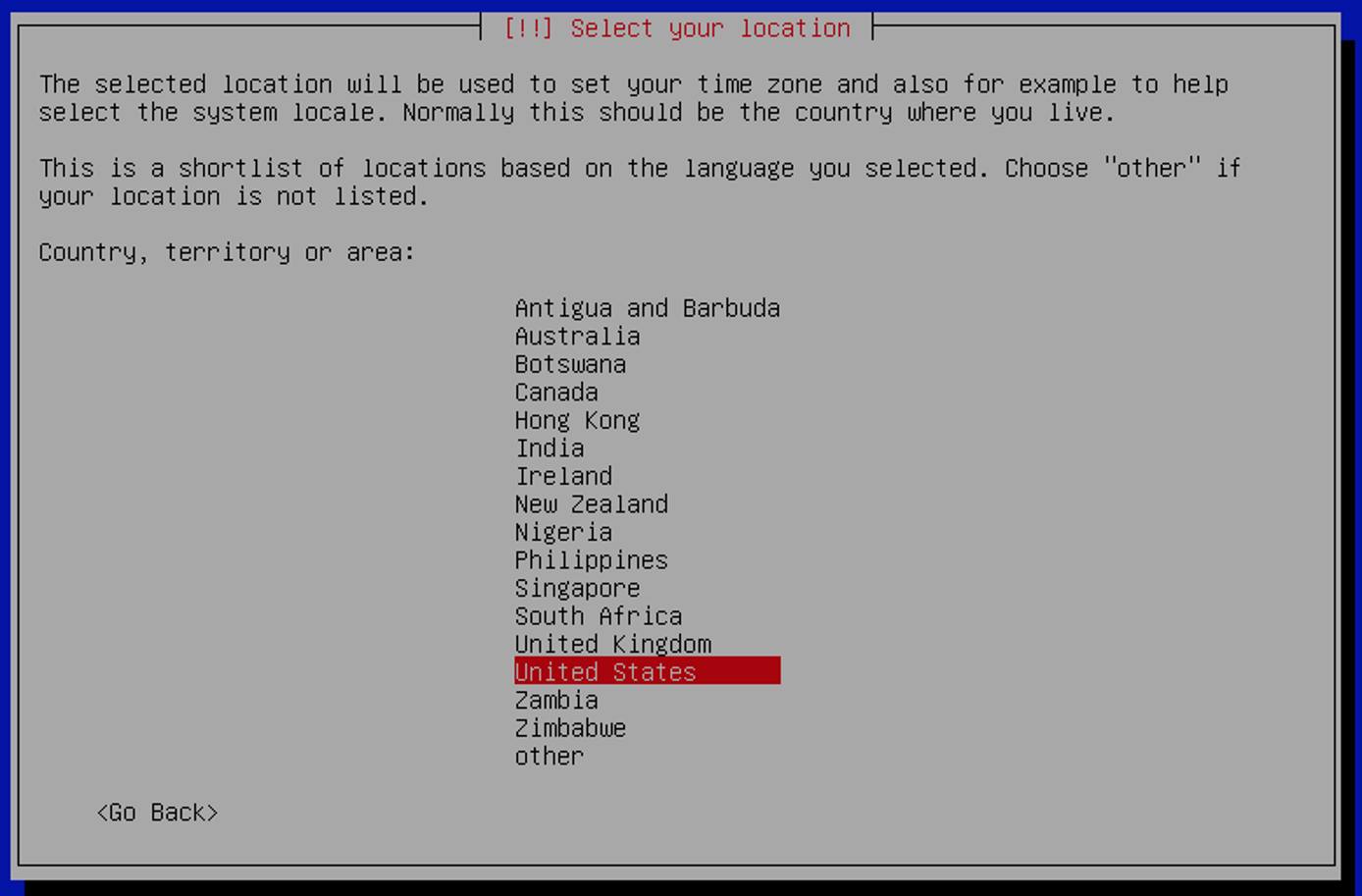

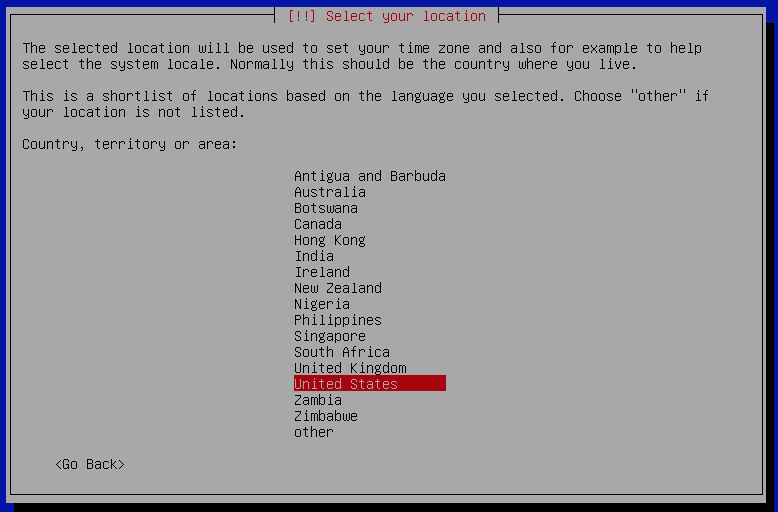

3. Select your location. This will be used to determine your system locale and time zone:

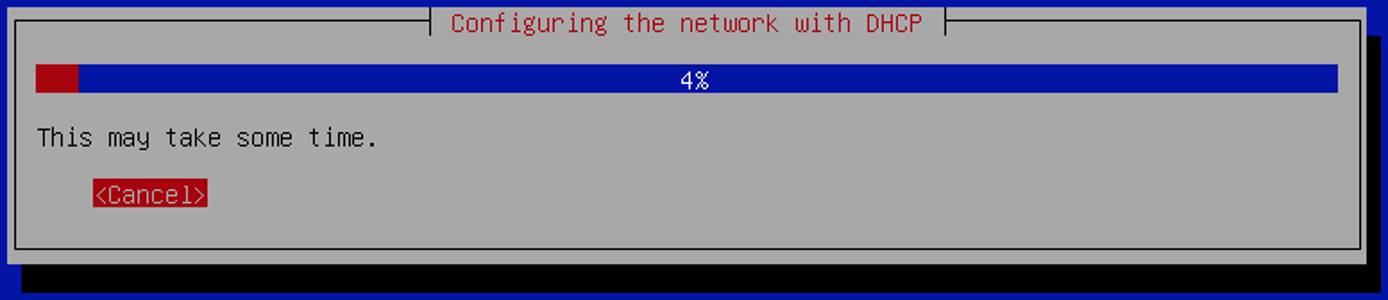

4. After you select a keyboard layout, the installer will use DHCP to connect to the network. If you prefer, you’ll have the option to configure your network settings manually:

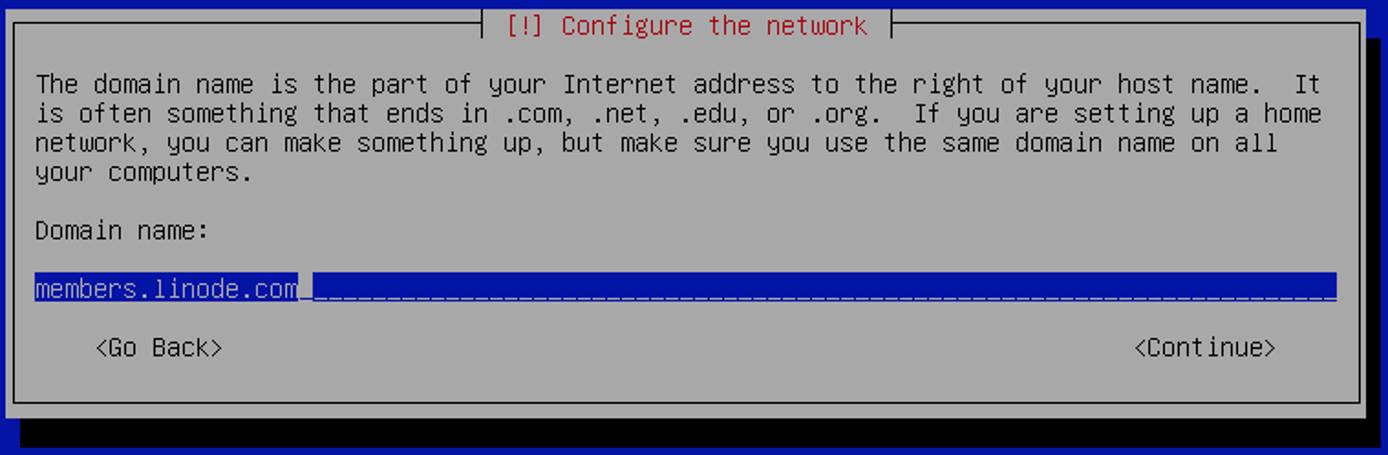

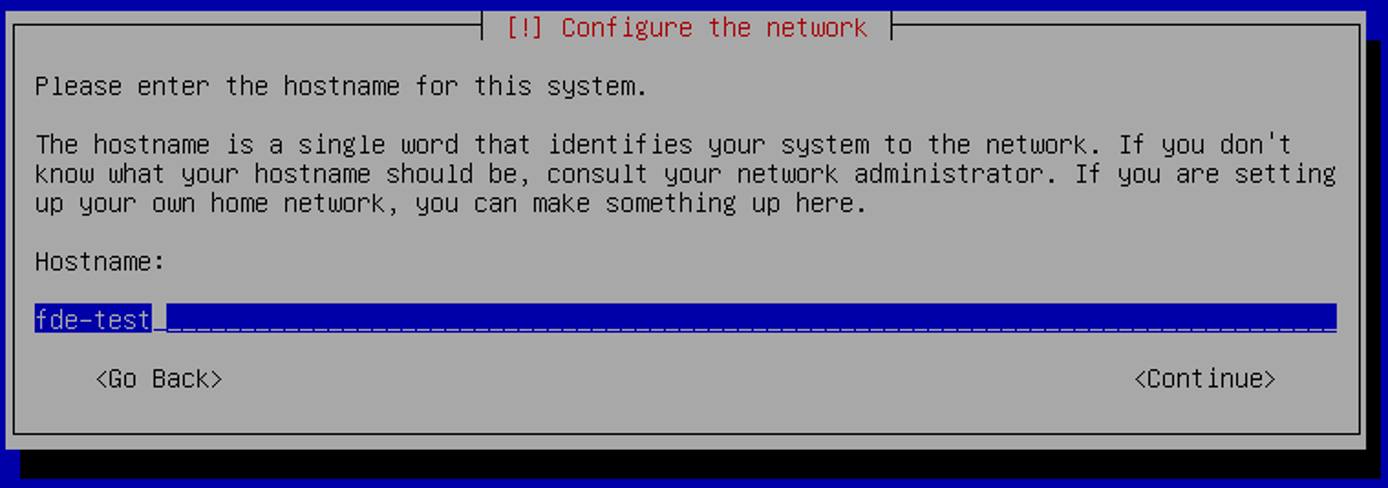

5. Assign your Linode’s hostname and domain name. In this example we’re using fde-test as the hostname, and members.linode.com for the domain:

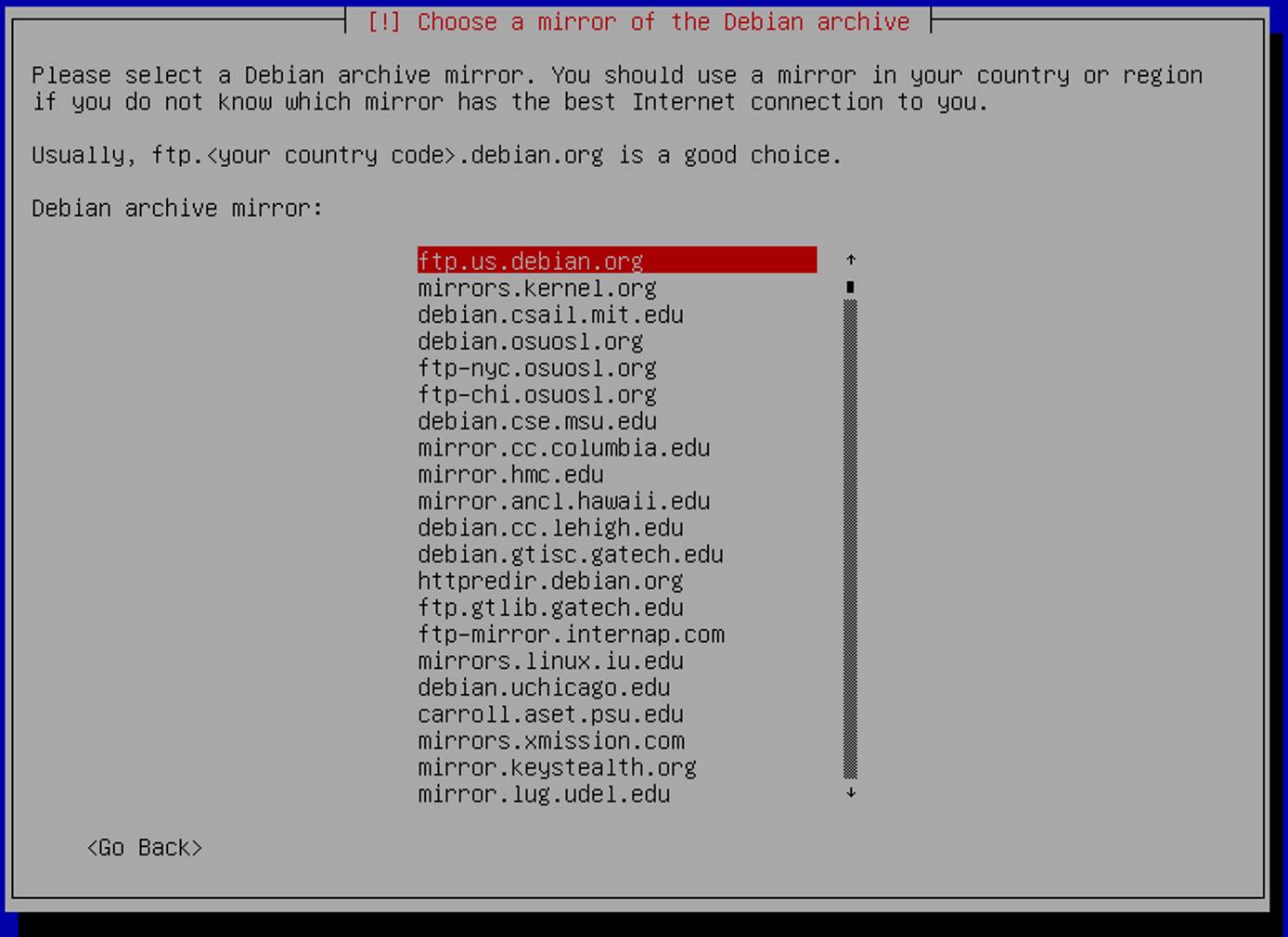

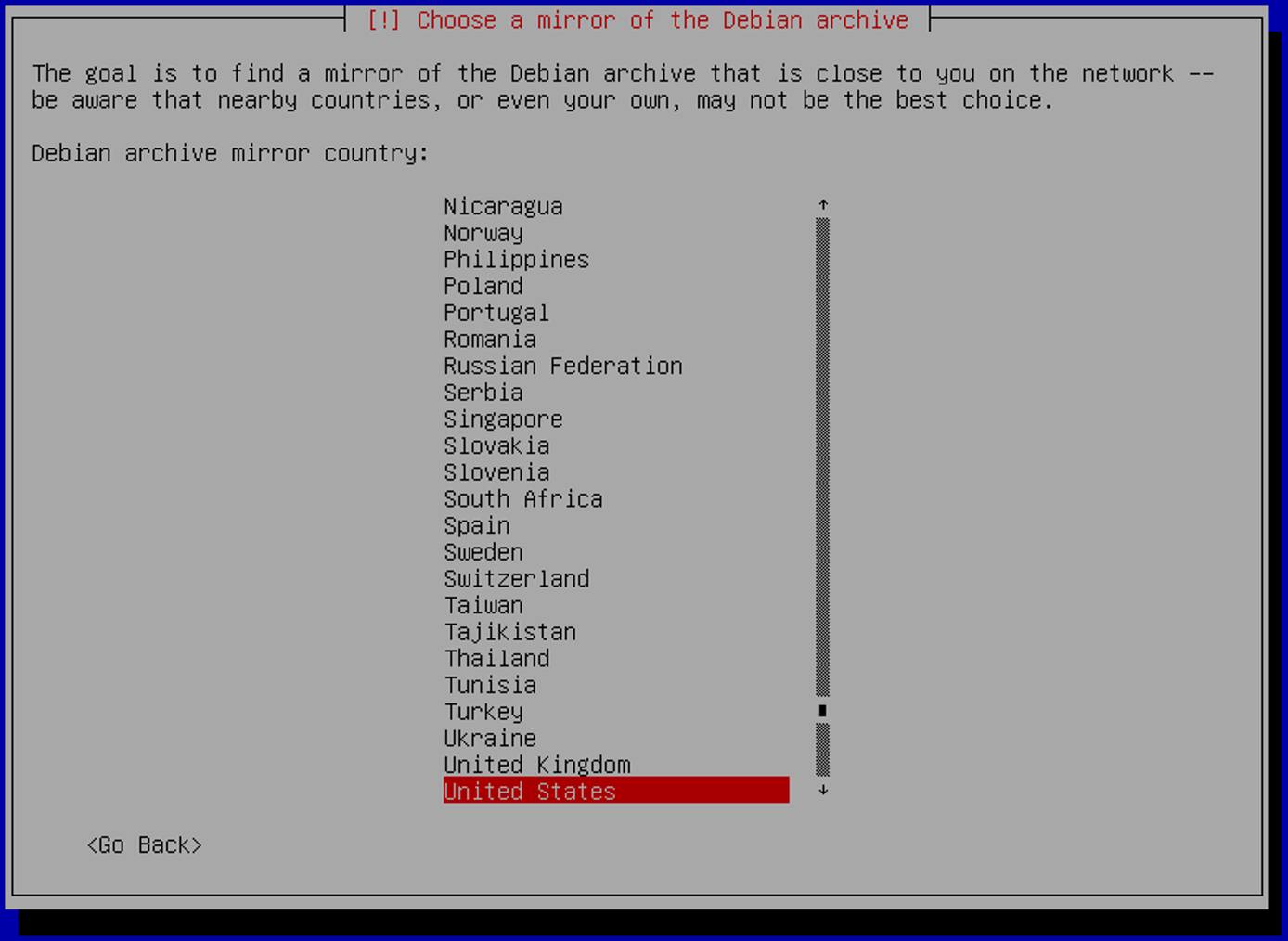

6. Choose the Debian mirror that will be used to download packages. Select the appropriate location depending on which data center your Linode resides in:

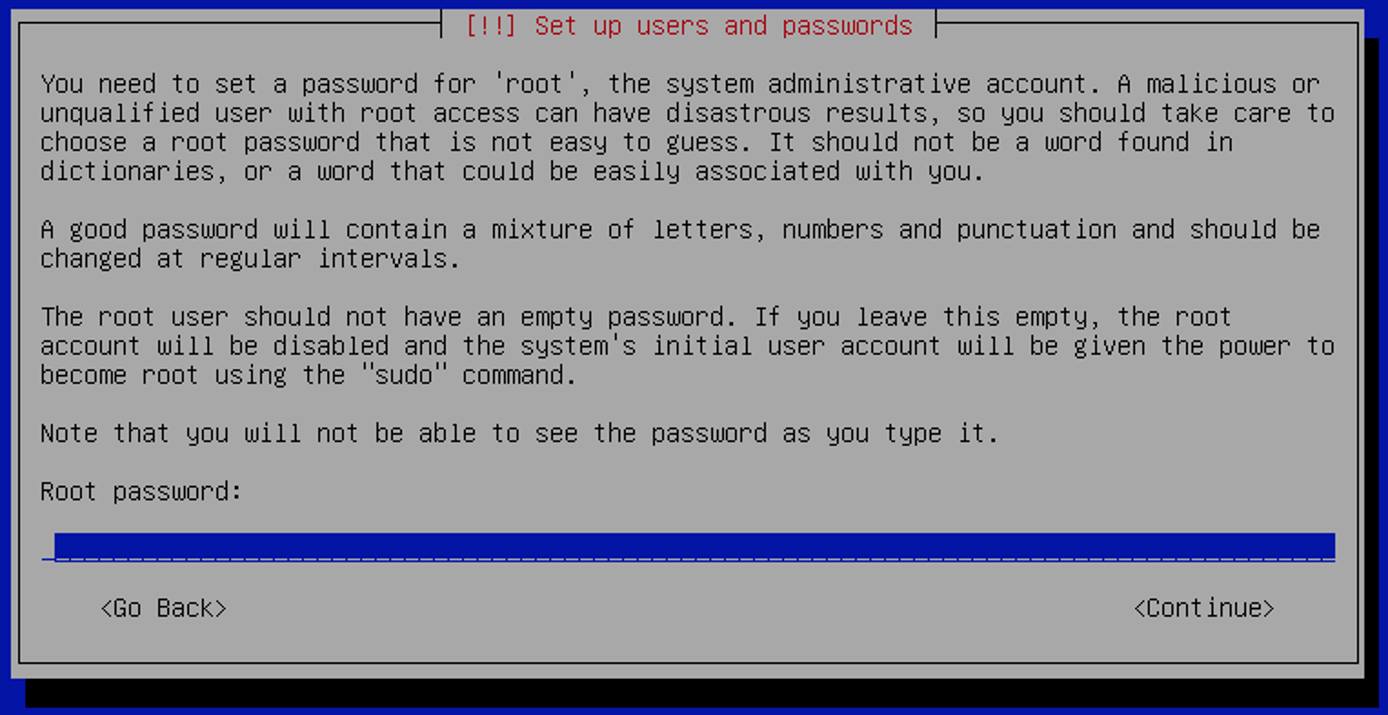

7. Set the password for the root user:

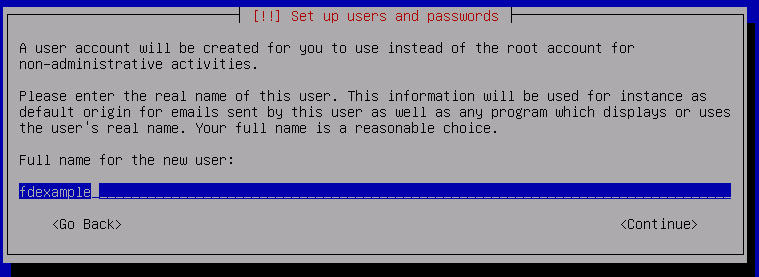

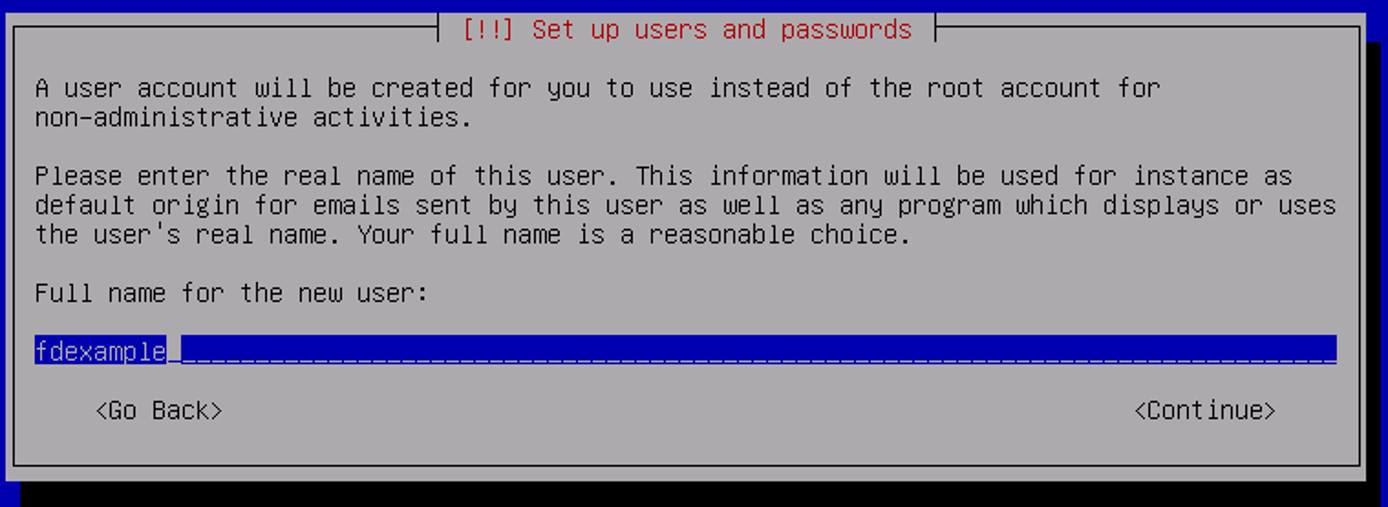

8. Create a second, non-administrative user and password combination:

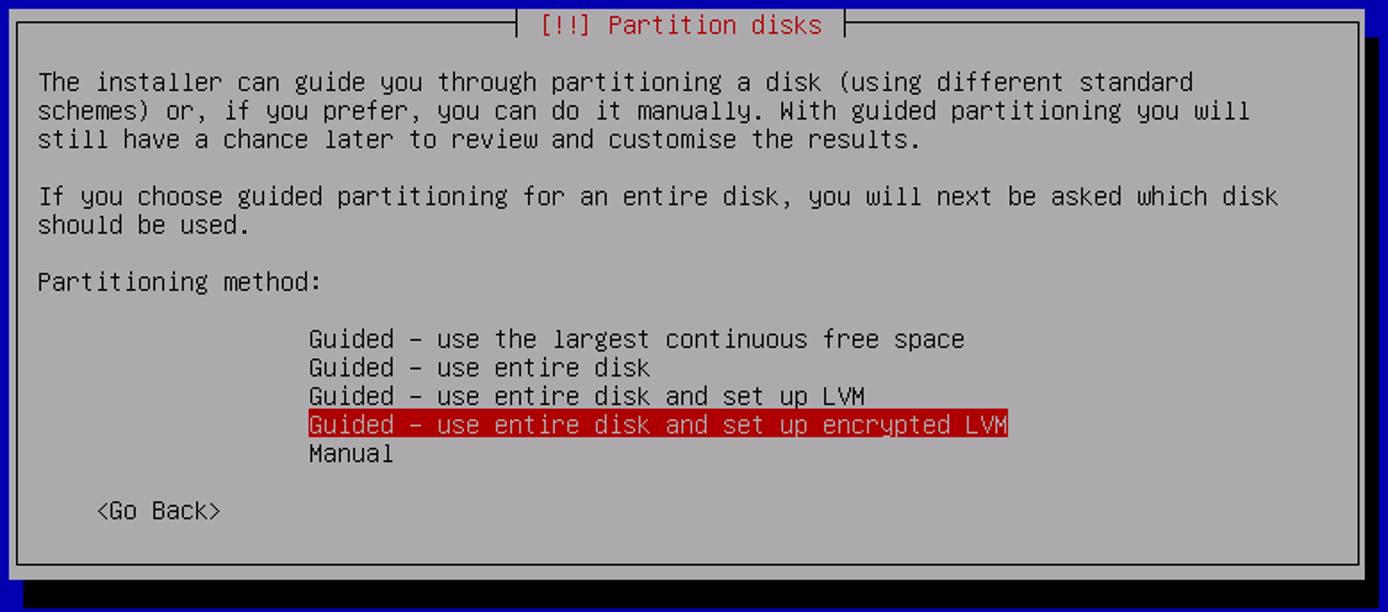

9. Select the method to be used for partitioning your disk. Since we’re encrypting the disk, choose Guided - use entire disk and set up encrypted LVM:

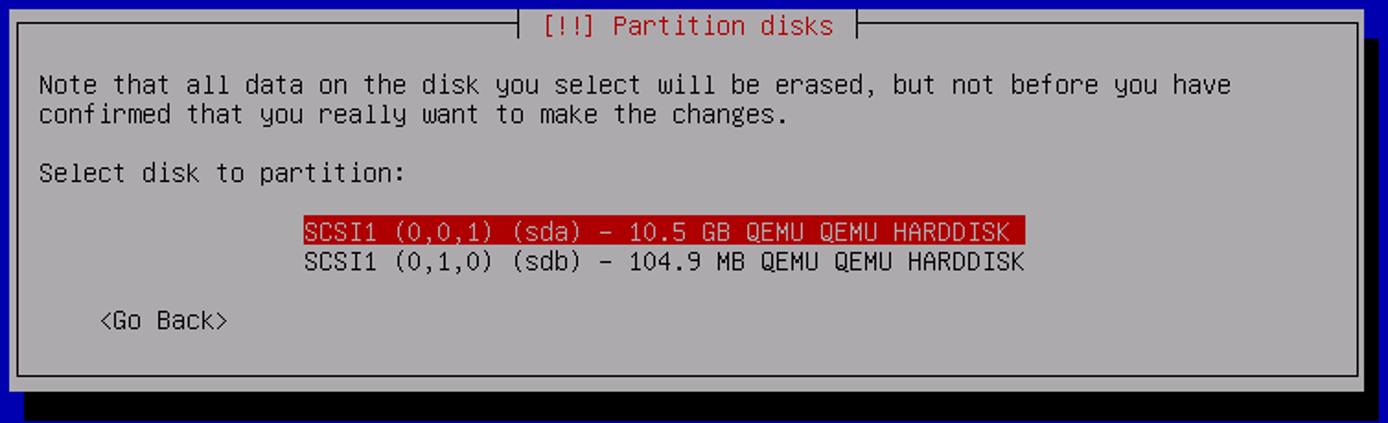

10. Select the volume on which you’ll create partitions and install Debian. Since we previously mounted the Boot disk to /dev/sda, select it here:

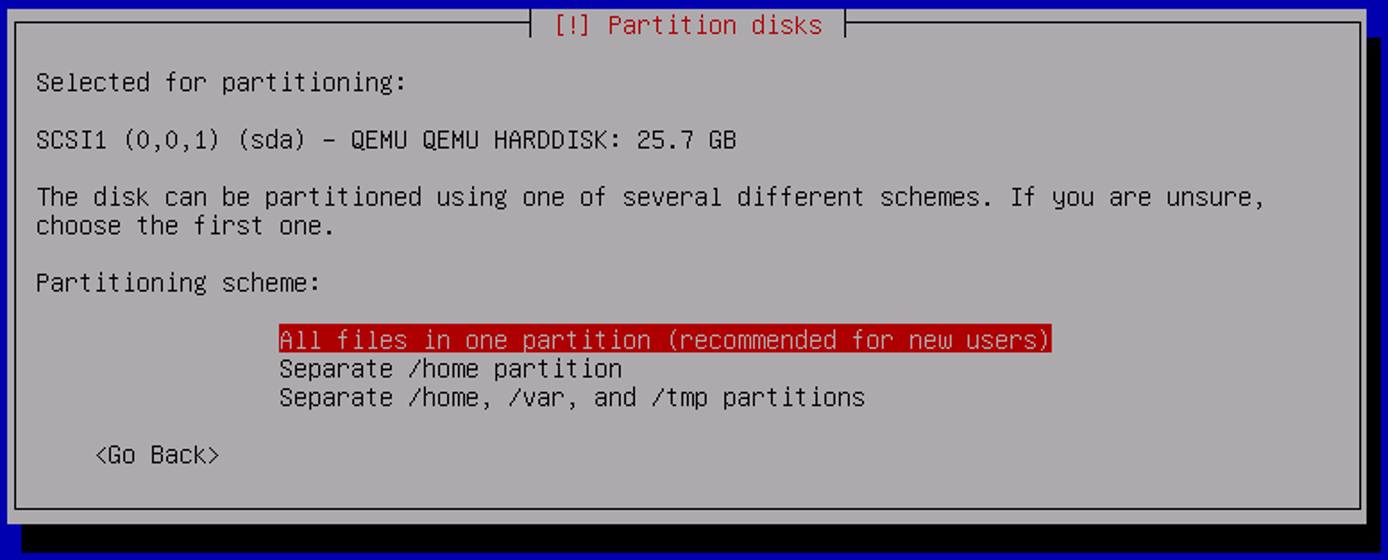

11. Choose your partitioning scheme. For this example, we’ll keep all files in a single partition, but you can select another option without affecting the rest of the process:

12. Confirm and apply your changes. This step may take awhile, as the volume is overwritten with random data to protect against cryptanalysis:

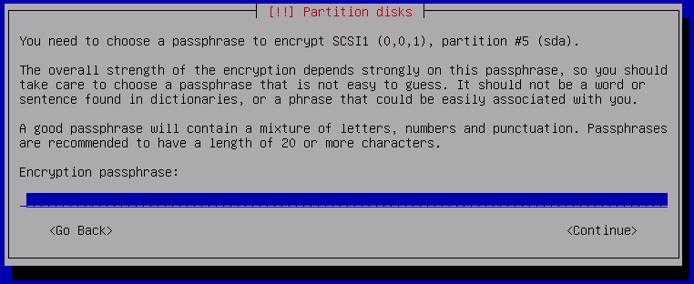

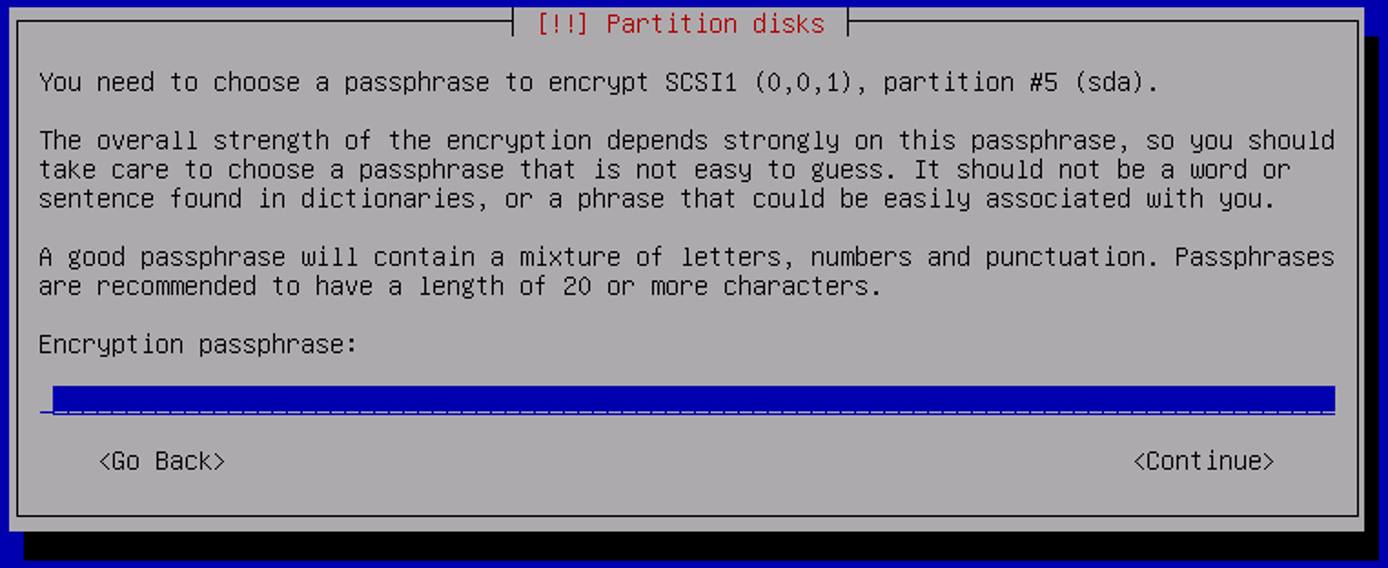

13. Once the partitioning process completes, create an encryption passphrase:

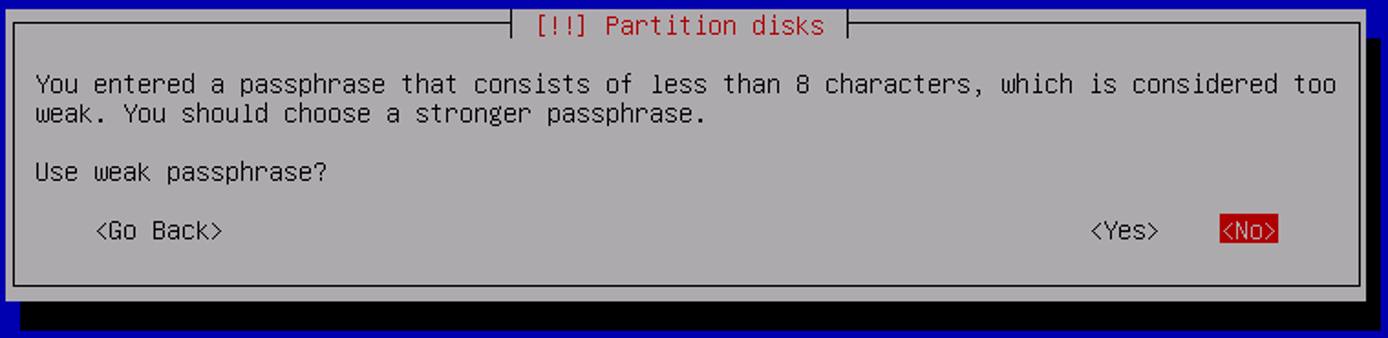

    It’s recommended that you follow best practices for creating a secure password. If you enter a password with less than eight characters, you will receive a warning prompt:

    Important

    If you lose or forget this password, the data on this disk image will be irrecoverable.

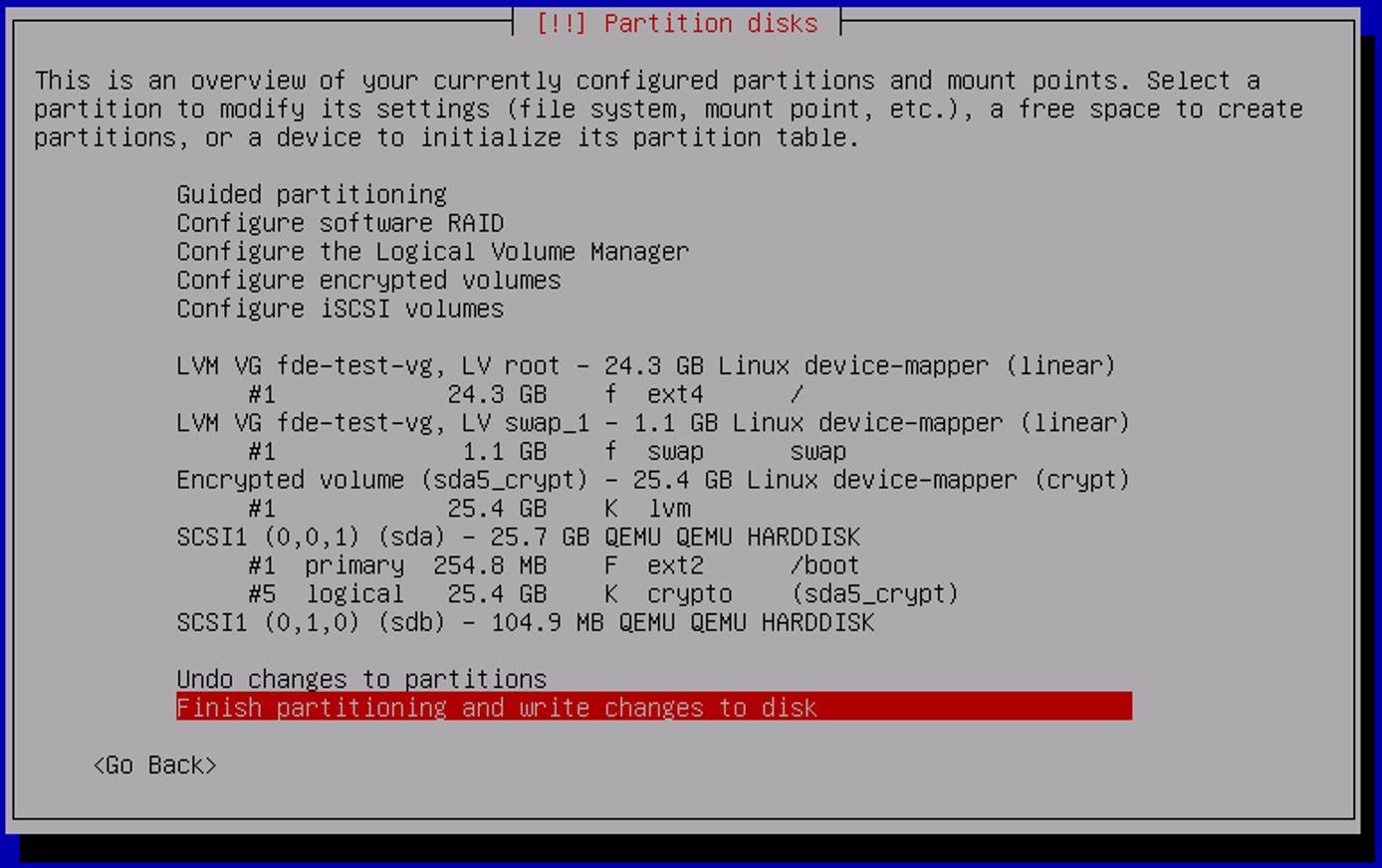

14. Next you’ll receive a full overview of the partitioning scheme being applied to your disk. Once you’ve confirmed the changes, select Finish partitioning and write changes to disk:

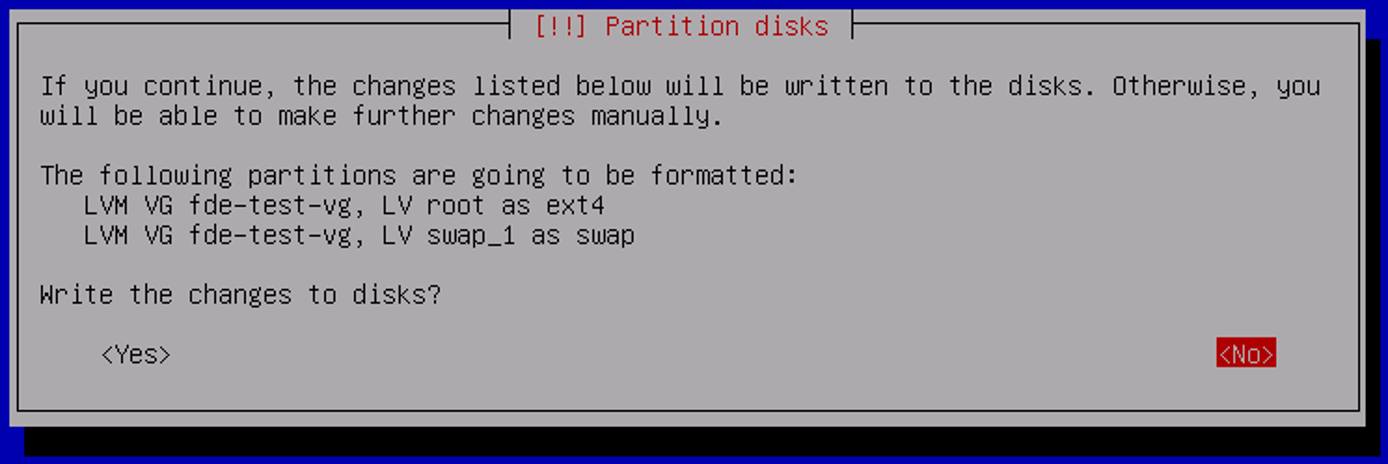

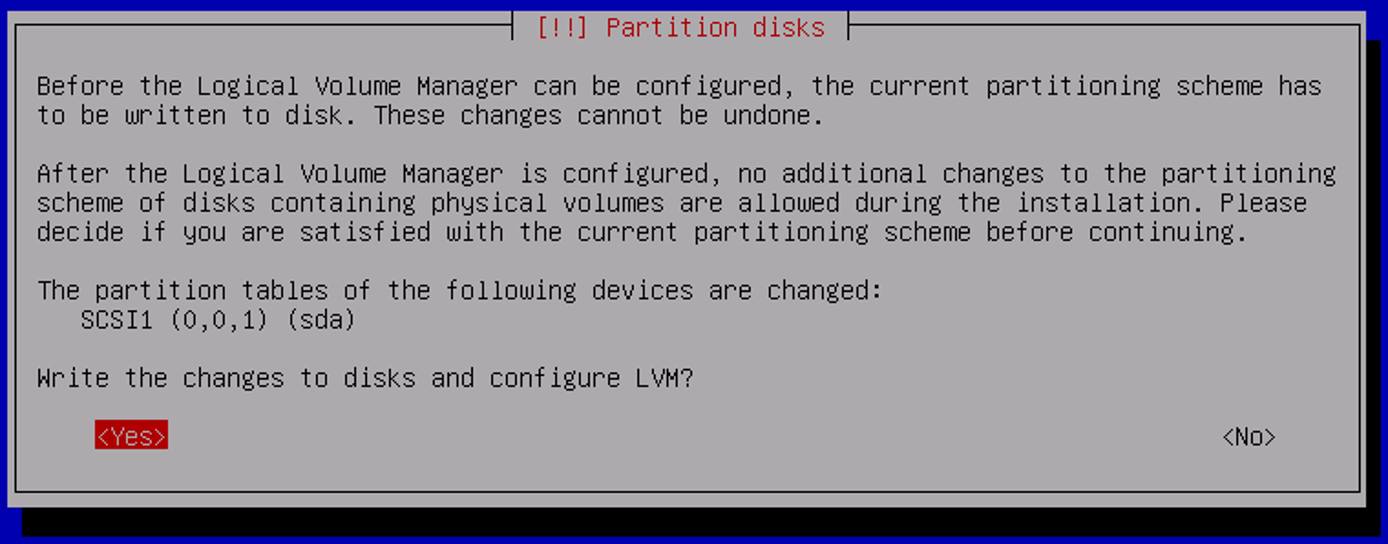

15. Confirm the new partitions you’ve created, and write your changes by selecting Yes:

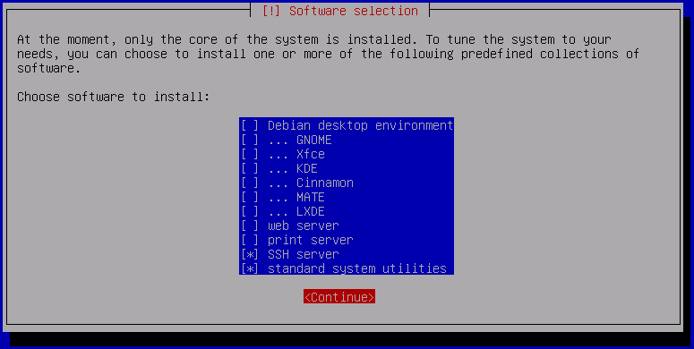

16. The installer will begin deploying the base system. Once it completes, you’ll have the option to choose specific software packages. The only packages required for the server are SSH server and standard system utilities, but you can select additional options as needed. If you wish to make use of a graphical shell over VNC or the Glish console, select the desktop environment of your choice. Once you’ve confirmed your selections, hit Continue:

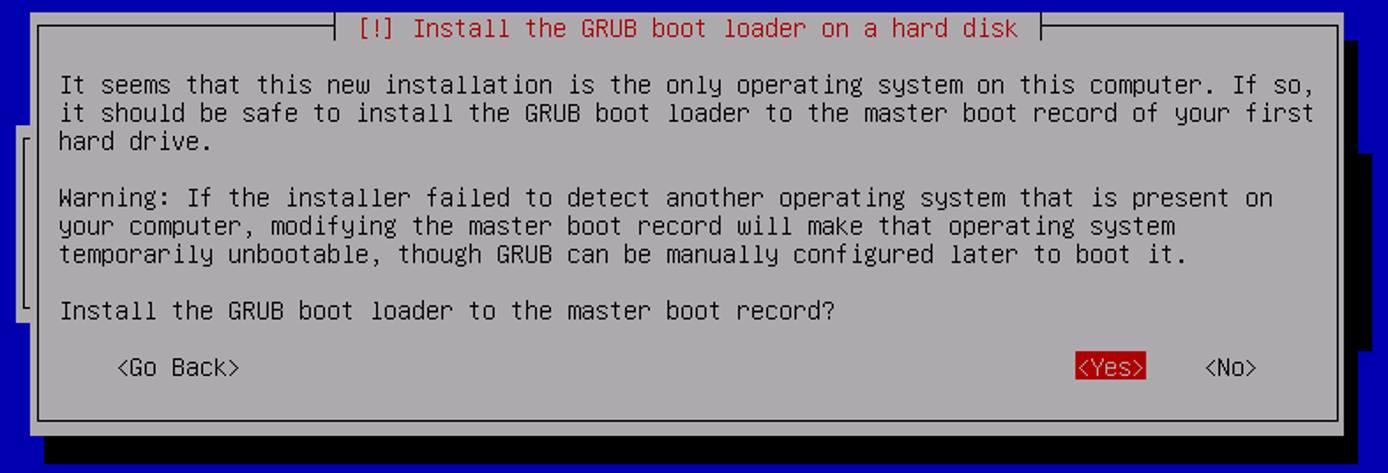

17. When the software installation completes, you’ll be presented with the option to install the GRUB boot loader to the master boot record. Choose Yes:

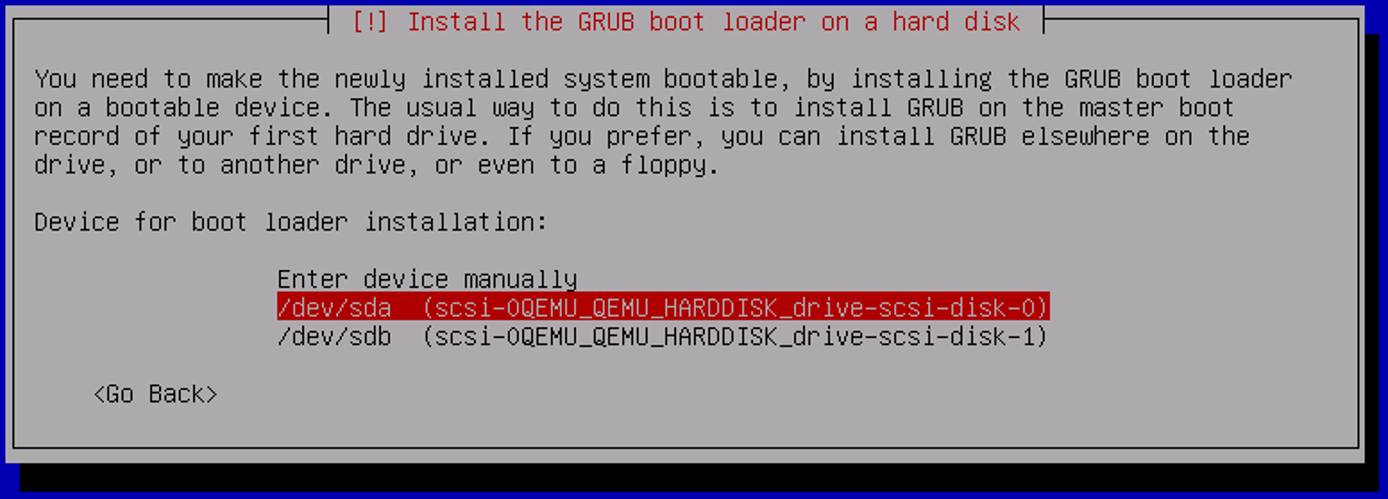

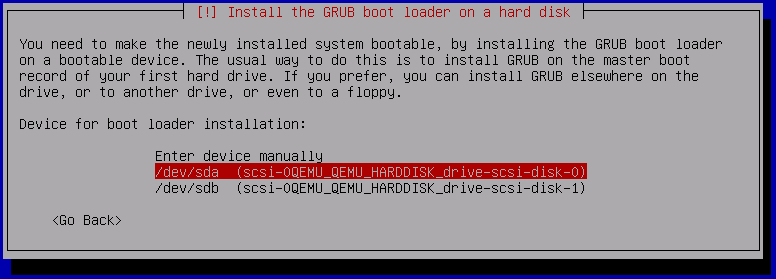

18. From the list of available target devices for GRUB installation, select /dev/sda:

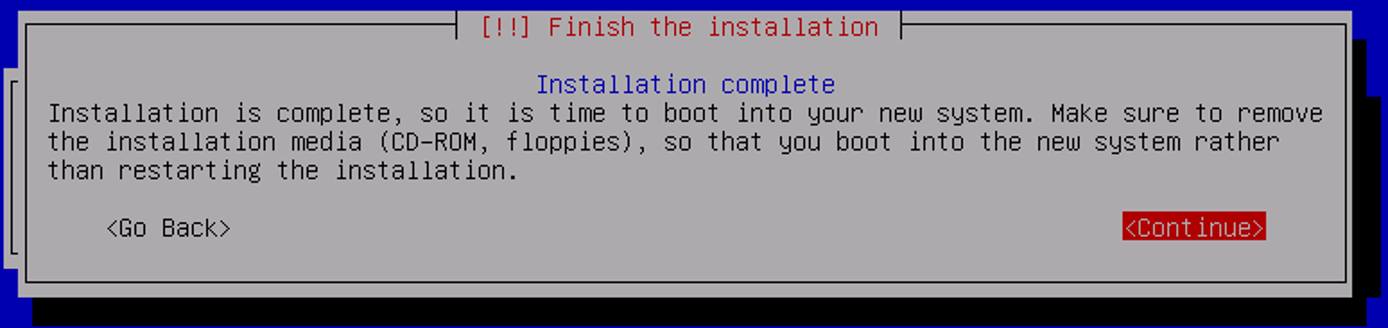

19. The installer will confirm once it has completed:

Configure GRUB

By default the GRUB menu will only work with the Glish interface. This section enables terminal support for Lish.

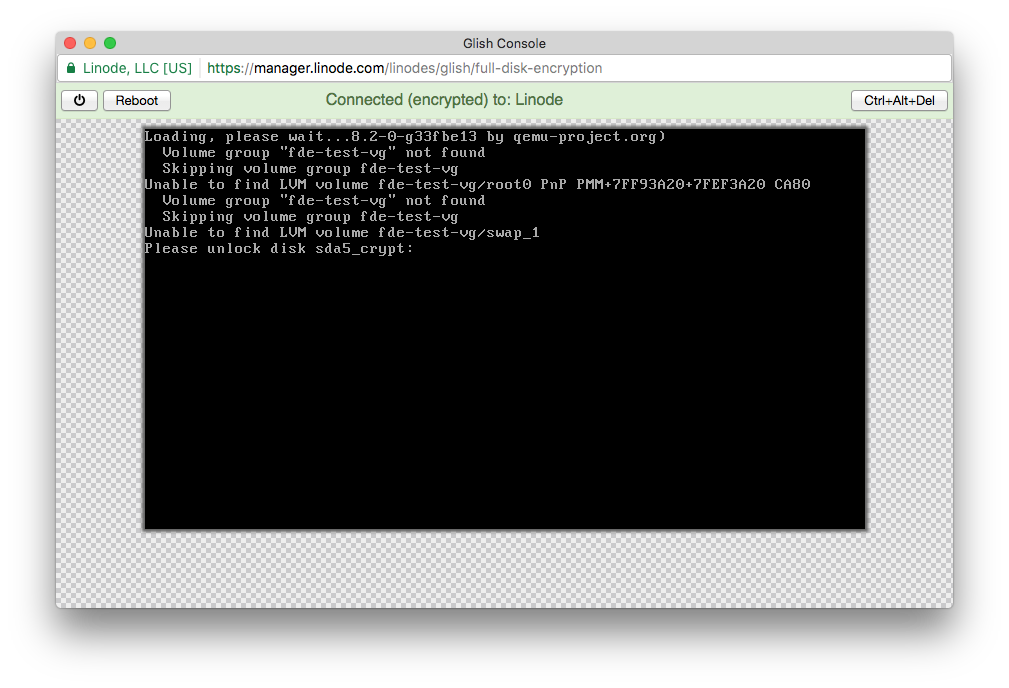

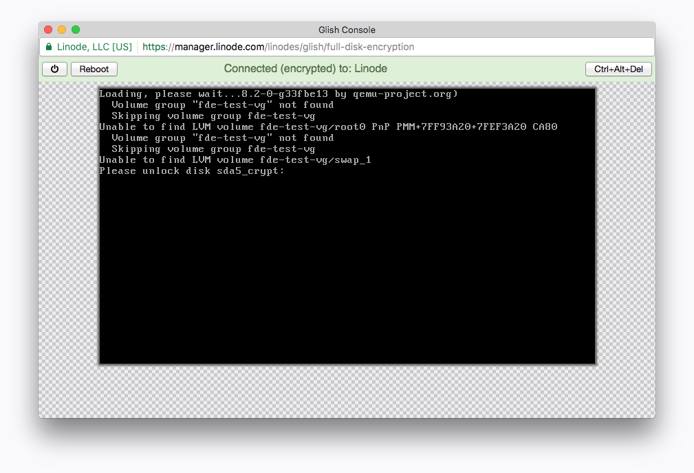

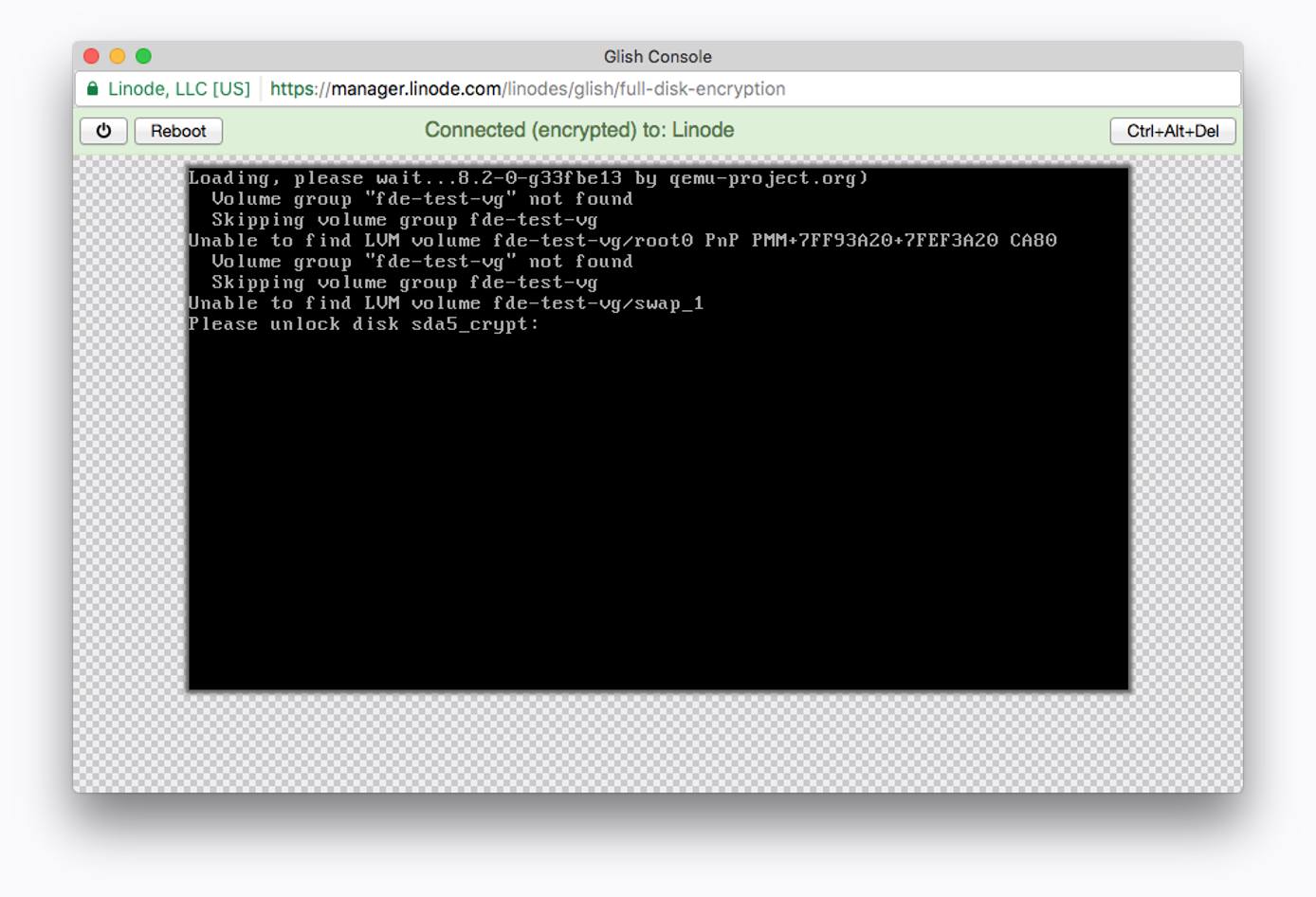

1. Now that you’ve completed the Debian installation, reboot your Linode into its Boot configuration profile, and connect to it from the Glish console. You will be prompted to enter your disk encryption passphrase:

2. Once you’ve entered your encryption passphrase, you’ll have access to a login prompt for your Debian installation. Log in as the root user with the password created previously.

3. Open the GRUB configuration file under /etc/default/grub with the text editor of your choice. Make the following changes to the appropriate directives:

   File: /etc/default/grub

   1 2 3 4

   GRUB_TIMEOUT=10 GRUB_CMDLINE_LINUX="console=ttyS0,19200n8" GRUB_SERIAL_COMMAND="serial --speed=19200 --unit=0 --word=8 --parity=no --stop=1" GRUB_TERMINAL=serial

4. Save your changes, then apply them to your GRUB configuration:

   update-grub

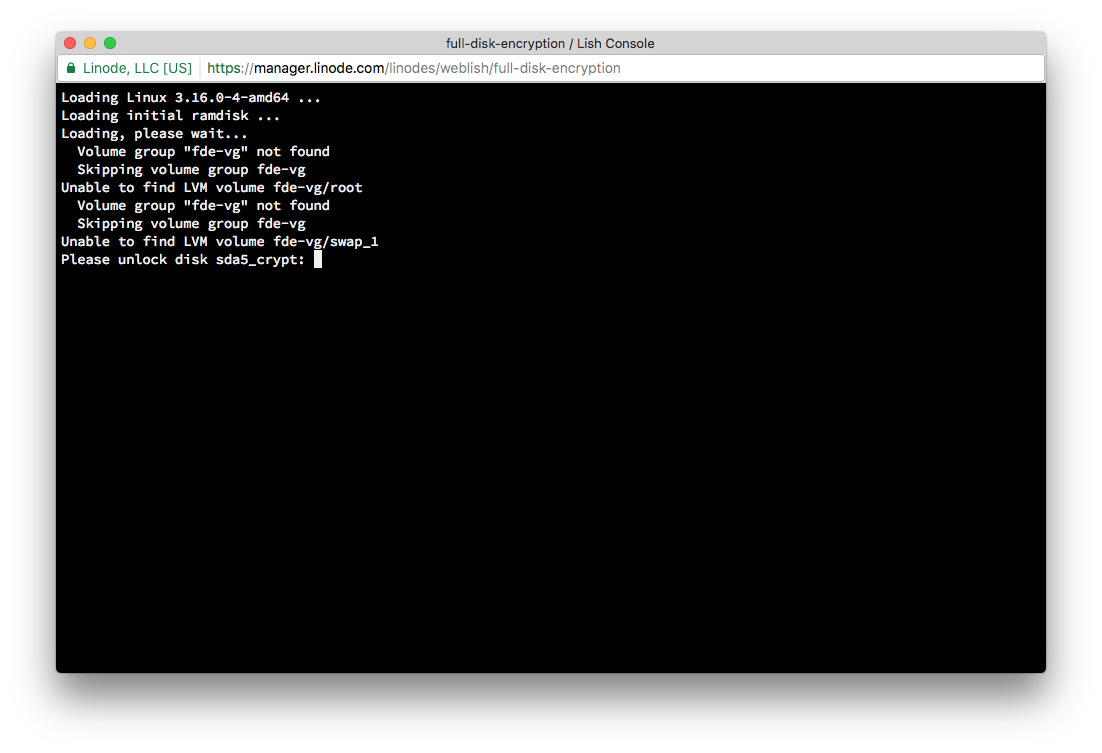

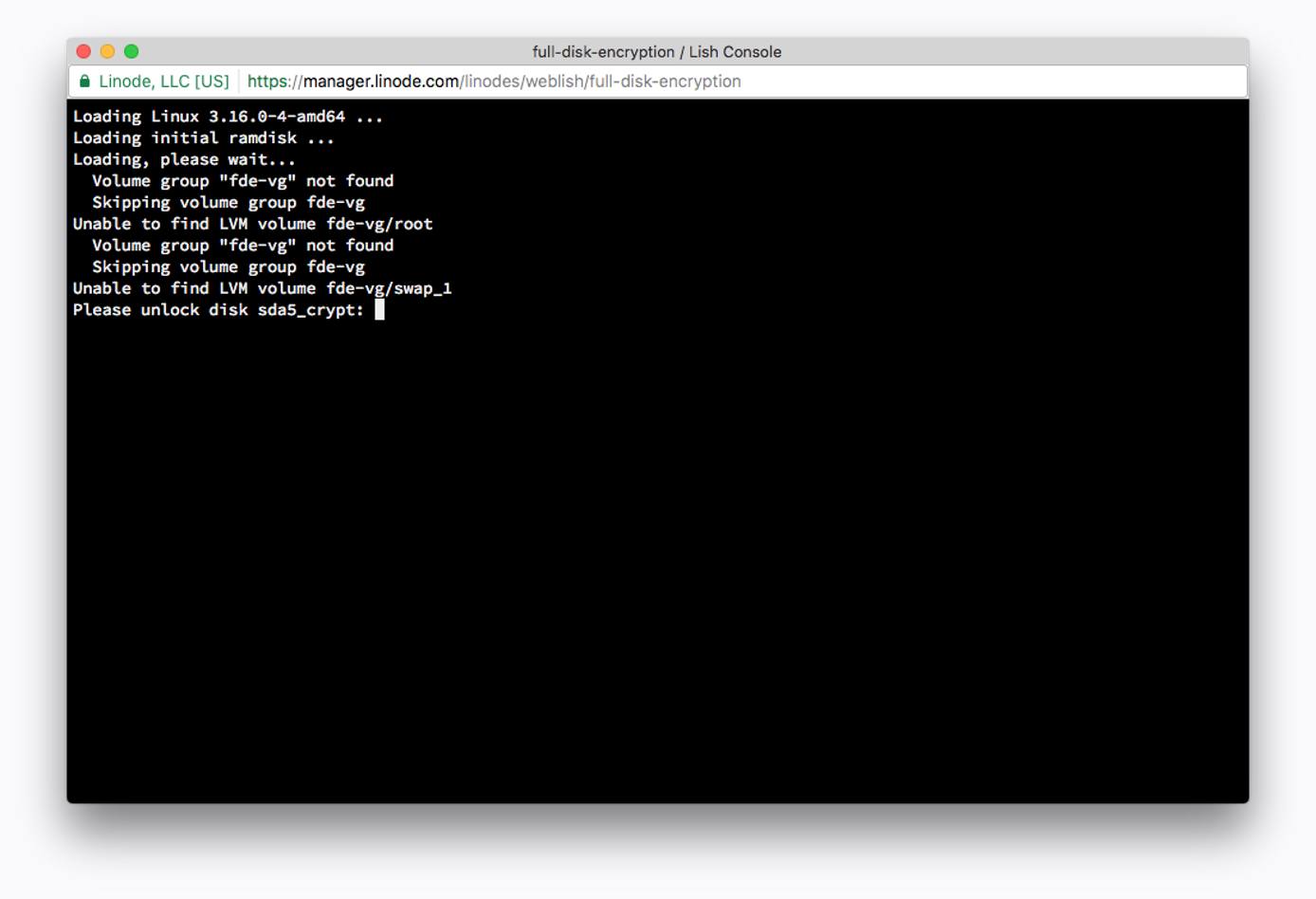

5. Reboot your Linode and open the Lish console. Now that we’ve configured the serial console in GRUB, you will receive a prompt to enter your decryption password in Lish:

Confirm Disk Encryption.

Once you’ve logged in, you can confirm your encryption settings by running the following command:

cryptsetup status /dev/mapper/sda5_crypt

Your output will be similar to this:

type:    LUKS1
cipher:  aes-xts-plain64
keysize: 512 bits
device:  /dev/sda5
offset:  4096 sectors
size:    19972096 sectors
mode:    read/write

You now have a securely LUKS-encrypted Debian installation. You can follow the steps in our Creating a Compute Instance and Setting Up and Securing a Compute Instance guide to begin configuring your Linode.
