Using Vagrant to Manage Linode Environments

Traducciones al Español
Estamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
Deprecated

This guide has been deprecated and is no longer being maintained.

Create a Linode account to try this guide with a $ credit.
This credit will be applied to any valid services used during your first  days.
Note
The Vagrant Linode provider relies on Linode’s APIv3, which has been deprecated in favor of APIv4.

Vagrant is a configuration management tool that allows users to create portable and reproducible work environments. Vagrant excels at providing consistent, easy-to-configure servers that can be used to keep development environments consistent across all users. It is easy to both launch and tear down, and can be supplied to any part of a development team that may need an environment but does not have the means to configure one themselves. Often paired with providers such as Puppet, Salt, and Chef, it offers an easy solution to keeping a consistent workflow.

Vagrant can be paired with Linode through the use of the vagrant-linode plugin to spawn and destroy Linode servers as needed. This guide will provide instructions on installing Vagrant, configuring the vagrant-linode plugin, and setting up a basic Apache server for testing.

Prerequisites

  1. Install Vagrant on your local computer or other workspace.

  2. Generate an API Key. This will be used to create Linodes based upon your Vagrant profile:

    • Log in to the Linode Manager and select my profile to the upper right.

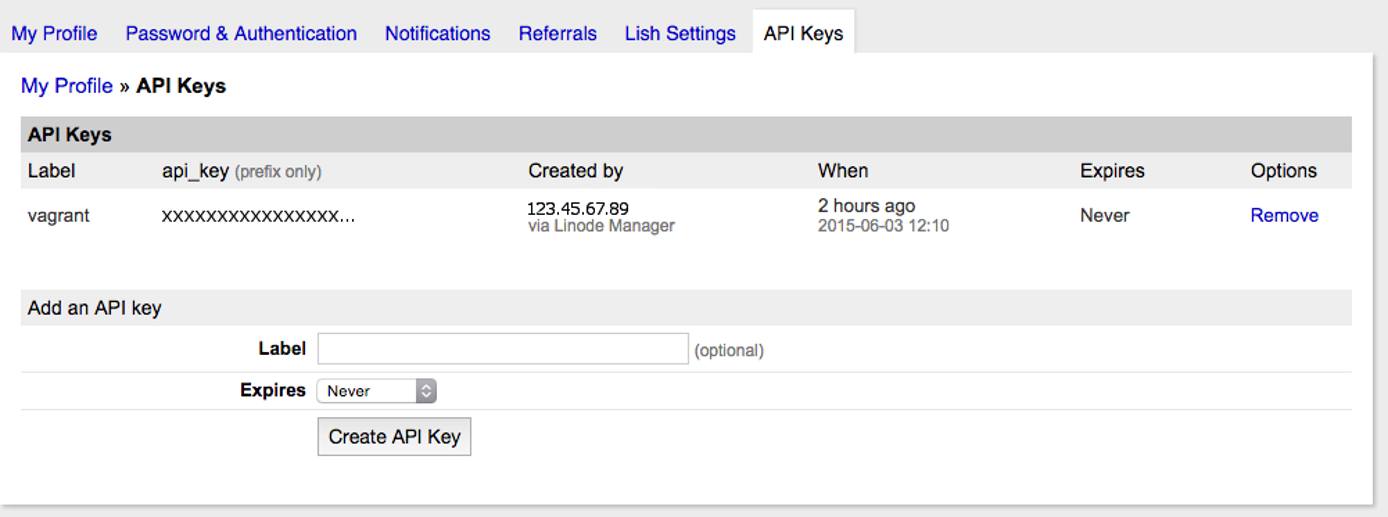

    • Select the API Keys tab:

    • Enter a label for your API Key and set an expiration time. Then click Create API Key.

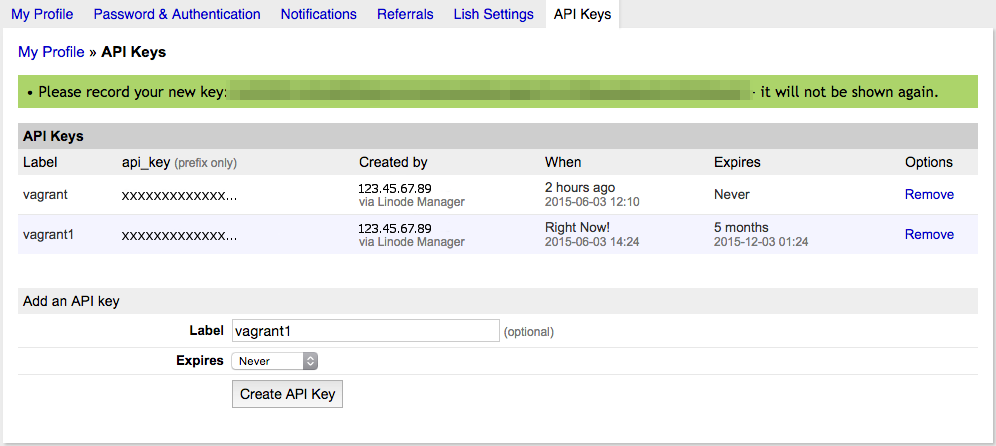

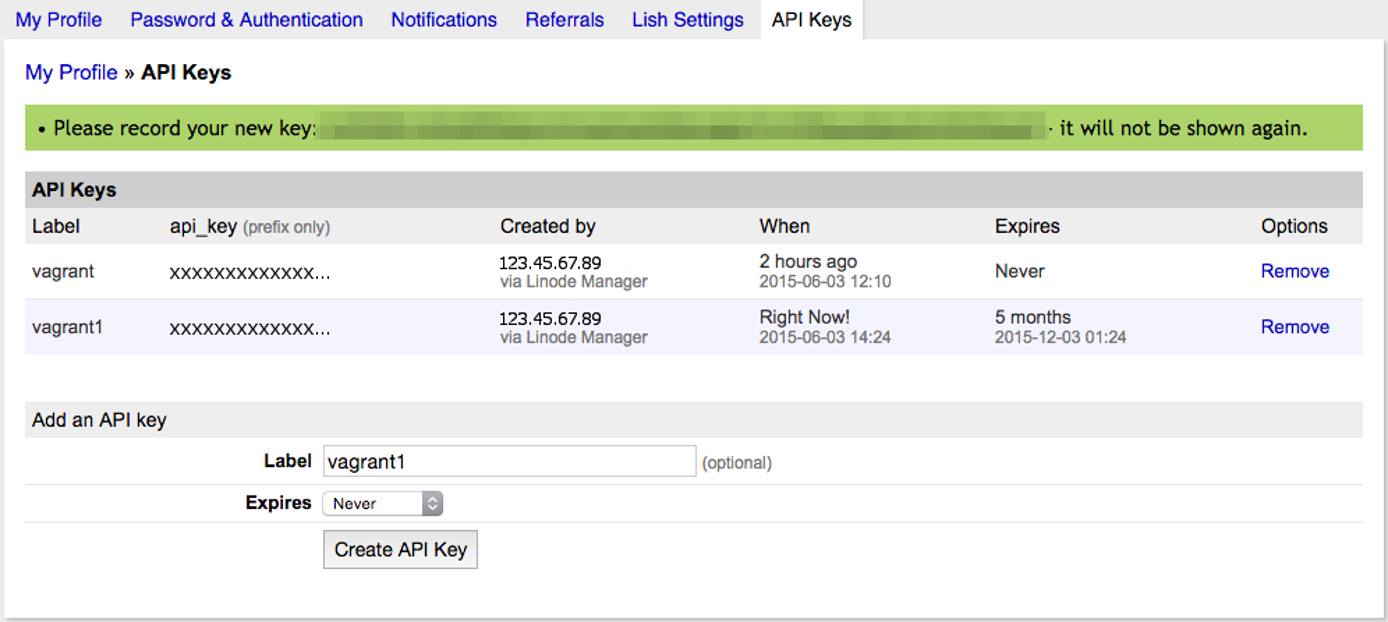

    • Your API Key will be output in a green box. The key will only be shown once so be sure to record it for later use:

Install the vagrant-linode Plugin

  1. From your workspace, create a directory for your project, and move into that directory:

    mkdir ~/vagrant-linode
    cd vagrant-linode

  2. Install the plugin:

    vagrant plugin install vagrant-linode

    Note
    If using a Mac, it may request to install development tools. Select yes, then re-run the command.
  3. From the vagrant-linode directory, create the Vagrantfile:

    touch Vagrantfile


    The Vagrantfile is used to describe, in code, the type of machine that Vagrant will create. It defines everything from the operating system to the users, to any applications that need to be initially installed to make one consistent work environment.

Configure the Vagrantfile

  1. Open the Vagrantfile in your text editor of choice. In Ruby, define what version of Vagrant you are using. The 2 defines that it is Vagrant 1.1.0 leading up to Vagrant 2.0. 1 is any version of Vagrant below that:

    File: ~/vagrant-linode/Vagrantfile
    1
    2
    3

    Vagrant.configure('2') do |config|

    end

    All code will take place between the Vagrant.configure and end lines.

  2. When creating a guest machine – the sever that will be created – Vagrant will create a username, password, and private key to access the machine. The default username and password is vagrant. Define your own parameters for the username, and set the pathway to your own private key. If you have not generated a private and public key, you can do so by following the Securing Your Server guide:

    File: ~/vagrant-linode/Vagrantfile
    1
    2
    3
    4
    5
    6
    7

    Vagrant.configure('2') do |config|

      ## SSH Configuration
      config.ssh.username = 'user'
      config.ssh.private_key_path = '~/.ssh/id_rsa'

    end

    If you choose to do so, you can also define your own password with the config.ssh.password setting.

  3. Define the Linode provider:

    File: ~/vagrant-linode/Vagrantfile
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12

    Vagrant.configure('2') do |config|

      ...

      # Global Configuration
      config.vm.provider :linode do |provider, override|
        override.vm.box = 'linode'
        override.vm.box_url = "https://github.com/displague/vagrant-linode/raw/master/box/linode.box"
        provider.token = 'API-KEY'
      end

    end

    Lines 6 defines the provider, and lines 7 and 8 define the box. Boxes are packages that include the basic requirements for a Vagrant environment to function. The supplied box is the linode box, created as part of the plugin. Replace the API-KEY with the key generated above.

  4. Choose your Linode’s settings:

    File: ~/vagrant-linode/Vagrantfile
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18

    Vagrant.configure('2') do |config|

      ...

      # Global Configuration
      config.vm.provider :linode do |provider, override|

        ...

        #Linode Settings
        provider.distribution = 'Ubuntu 14.04 LTS'
        provider.datacenter = 'newark'
        provider.plan = '2048'
        provider.label = 'vagrant-ubuntu-lts'

      end

    end

    In this instance, a 2GB Ubuntu 14.04 LTS Linode is being created in the Newark data center. The provider.label is the name that the Linode will show up as in the Linode Manager.

    To see more options regarding the vagrant-linode plugin see the documentation on the plugin’s GitHub repository.

Set Up the Vagrant Box

Although the server can now be created successfully, many aspects of it still need to be configured. Shell scripts will be used to complete the steps from the Setting Up and Securing a Compute Instance guide, and to install and configure Apache. Files will also be synced between the workstation and the Linode.

Configure the Server

  1. Create a shell script called setup.sh to configure the Linode’s hostname, set the proper timezone, and update the server. Replace vagranttest with your chosen hostname, and EST with your timezone.

    File: ~/vagrant-linode/setup.sh
    1
    2
    3
    4
    5
    6
    7

    #!/bin/bash
    echo "vagranttest" > /etc/hostname
    hostname -F /etc/hostname
    ip=$(ip addr show eth0 | grep -Po 'inet \K[\d.]+')
    echo "$ip   $ip hostname" >> /etc/hosts
    ln -sf /usr/share/zoneinfo/EST /etc/localtime
    apt-get update && apt-get upgrade -y
    • Lines 2 and 3 define the hostname.

    • Line 4 sets the variable ip to the Linode’s IP address – since we will not know IP address until Vagrant launches the Linode.

    • Line 5 inserts the IP address into the /etc/hosts file to define the fully-qualified domain name.

    • Line 6 sets the timezone, and the final line updates the server and server packages.

  2. Within the Vagrantfile, call to the shell script you just created by adding the config.vm.provision method:

    File: ~/vagrant-linode/Vagrantfile
    1
    2
    3
    4
    5
    6
    7
    8

    Vagrant.configure('2') do |config|

    ...

      # Shell Scripts
      config.vm.provision :shell, path: "setup.sh"

    end

Install Apache and Sync Files

  1. Create an installation script for Apache called apache.sh, and add the following:

    File: ~/vagrant-linode/apache.sh
    1
    2
    3
    4
    5
    6
    7

    #!/bin/bash
    apt-get install apache2 -y
    mv /etc/apache2/ports.conf /etc/apache2/ports.conf.backup
    mv /etc/apache2/ports1.conf /etc/apache2/ports.conf
    a2dissite 000-default.conf
    a2ensite vhost.conf
    service apache2 reload
    • Line 2 installs Apache.

    • Lines 3 & 4 create a backup of the ports.conf file and replaces it with a file created below.

    • Lines 5 & 6 disable the default host file and enable the one we will create below. Apache is then reloaded to take the configuration changes.

  2. Add the shell script provisioner method to your Vagrantfile, under the line that references setup.sh:

    File: ~/vagrant-linode/Vagrantfile
    1
    2
    3
    4
    5
    6
    7
    8
    9

    Vagrant.configure('2') do |config|

    ...

      # Shell Scripts
      config.vm.provision :shell, path: "setup.sh"
      config.vm.provision :shell, path: "apache.sh"

    end
  3. Create a new directory for Apache configuration files:

    mkdir apache2

  4. Because Vagrant is often used for development environments, we want to host Apache on a port other than 80. Create ports1.conf, as referenced in the shell script above. The port will be set to 6789:

    File: ~/vagrant-linode/apache2/ports1.conf
    1
    2
    3
    4
    5
    6
    7
    8
    9

    Listen 6789

    <IfModule ssl_module>
            Listen 443
    </IfModule>

    <IfModule mod_gnutls.c>
            Listen 443
    </IfModule>
  5. Create a new directory under apache2 called sites-available. Add a VirtualHosts file, vhost.conf, to this new directory:

    mkdir sites-available

    File: ~/vagrant-linode/apache2/sites-available/vhost.conf
    1
    2
    3
    4
    5
    6

    <VirtualHost *:6789>
            ServerAdmin webmaster@localhost
            DocumentRoot /var/www/html
            ErrorLog ${APACHE_LOG_DIR}/error.log
            CustomLog ${APACHE_LOG_DIR}/access.log combined
    </VirtualHost>
  6. Return to the Vagrantfile, and use the config.vm.synced_folder method to sync the local directories with directories on the server:

    File: ~/vagrant-linode/Vagrantfile
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10

    Vagrant.configure('2') do |config|

      ...

      # Synced Folders
      config.vm.synced_folder '.', '/vagrant', disabled: true
      config.vm.synced_folder './apache2', '/etc/apache2', disabled: false
      config.vm.synced_folder './webfiles', '/var/www/html'

    end
    • Line 5 disables syncing for the root folders.

    • Line 6 defines the locally-hosted apache2 folder ('./apache2') and links it to the /etc/apache2 directory on the Linode. disabled: false ensures that it will sync.

    • Line 7 does the same with a yet-to-be-created ./webfiles directory that can be used to add any website files before booting the instance.

  7. Create the webfiles folder in your vagrant-linode directory:

    mkdir ~/vagrant-linode/webfiles


    Add to this directory any files you want the Linode to serve over HTTP.

Boot an Instance

With the Vagrantfile configured, and scripts and files created, it’s now time to create the guest machine and check that it’s running properly.

  1. From your workstation, boot the instance:

    vagrant up


    It will run through the installation process, sync the directories, and run the shell scripts.

  2. Log into the newly-created Linode:

    vagrant ssh

  3. To ensure that Apache is running properly, check the status:

    service apache2 status


    It should output:

     * apache2 is running

  4. To see that the environment is accessible online, check for the IP address:

    hostname -i


    Then go to your chosen web browser and navigate to your ip address with :6789 appended to the end. You should see Apache2 Ubuntu Default Page.

    Note

    If you wish to shut down or remove the Linode from your workspace you can do so through one of the following commands:

    • vagrant halt will power down the Linode through the shutdown mechanism. You can then run vagrant up again to power on the Linode.
    • vagrant destroy will remove the Linode entirely from your account, removing anything that was created during the Vagrant up process or added later to the server.
