Scaling Kubernetes Across Regions

Scaling Kubernetes Across Regions graphic

This post is part of our Scaling Kubernetes Series. Register to watch live or access the recording, and check out our other posts in this series:

One interesting challenge with Kubernetes is deploying workloads across several regions. While you can technically have a cluster with several nodes located in different regions, this is generally regarded as something you should avoid due to the extra latency.

A popular alternative is to deploy a cluster for each region and find a way to orchestrate them.

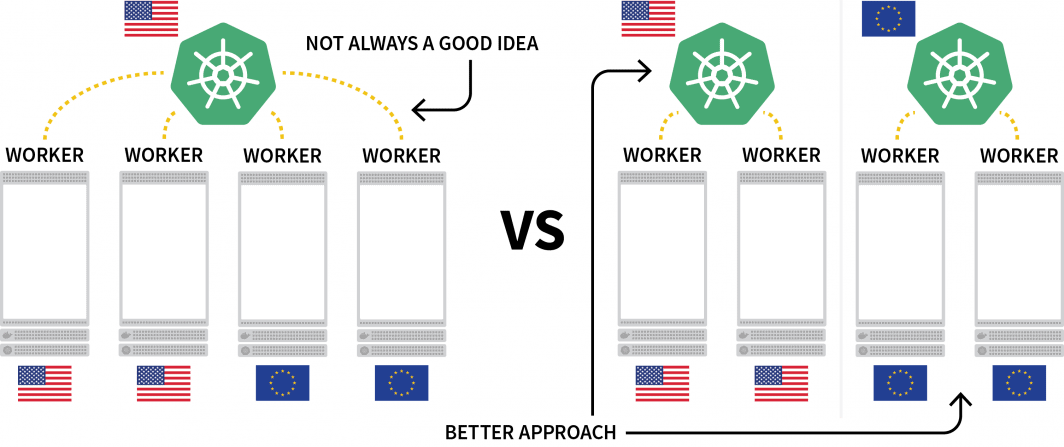

Diagram representing a Kubernetes cluster with nodes in multiple regions (not always a good idea) versus having a cluster in each region you need to deploy in (the more advanced approach)
You could have a cluster with nodes that span several regions, or you could have a cluster for each region.

In this post, you will:

  1. Create three clusters: one in North America, one in Europe, and one in South East Asia.
  2. Create a fourth cluster that will act as an orchestrator for the others.
  3. Set up a single network out of the three cluster networks for seamless communication.

This post has been scripted to work with Terraform requiring minimal interaction. You can find the code for that on the LearnK8s GitHub.

Creating the Cluster Manager

Let’s start with creating the cluster that will manage the rest. The following commands can be used to create the cluster and save the kubeconfig file.

bash
$ linode-cli lke cluster-create \
 --label cluster-manager \
 --region eu-west \
 --k8s_version 1.23

$ linode-cli lke kubeconfig-view "insert cluster id here" --text | tail +2 | base64 -d > kubeconfig-cluster-manager

You can verify that the installation is successful with:

bash
$ kubectl get pods -A --kubeconfig=kubeconfig-cluster-manager

Excellent!

In the cluster manager, you will install Karmada, a management system that enables you to run your cloud-native applications across multiple Kubernetes clusters and clouds. Karmada has a control plane installed in the cluster manager and the agent installed in every other cluster.

The control plane has three components:

  1. An API Server;
  2. A Controller Manager; and
  3. A Scheduler

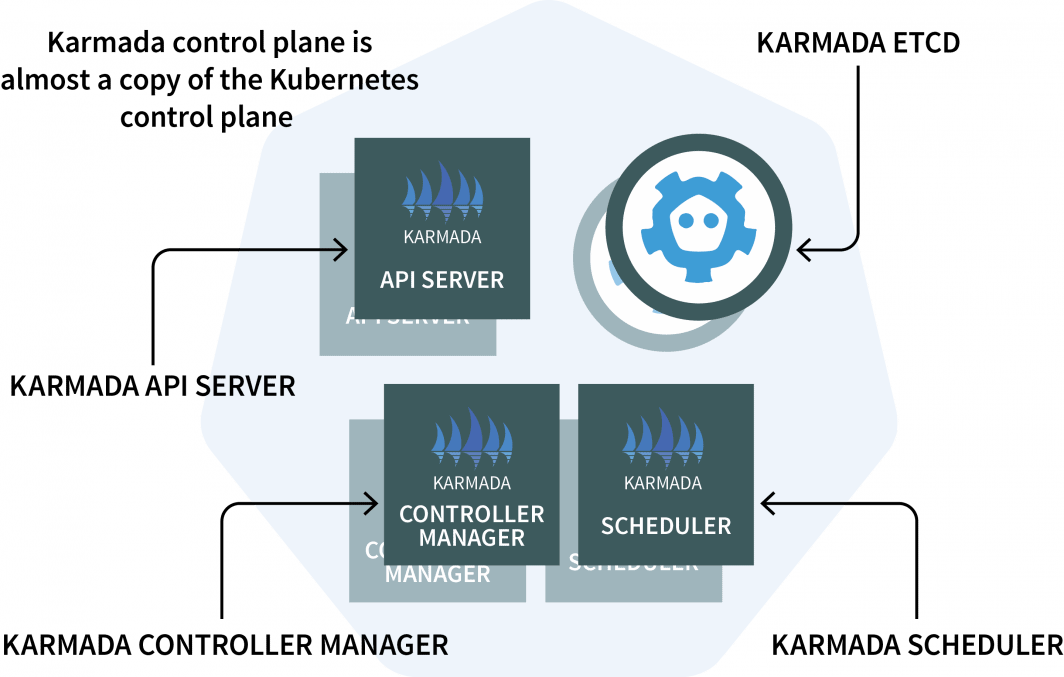

Diagram of the Karmada control plane consisting of a Karmada API server, controller manager, etcd, and scheduler.
Karmada’s control plane.

If those look familiar, it’s because the Kubernetes control plane features the same components! Karmada had to copy and augment them to work with multiple clusters.

That’s enough theory. Let’s get to the code.
You will use Helm to install the Karmada API server. Let’s add the Helm repository with:

bash
$ helm repo add karmada-charts https://raw.githubusercontent.com/karmada-io/karmada/master/charts
$ helm repo list
NAME            URL
karmada-charts   https://raw.githubusercontent.com/karmada-io/karmada/master/charts

Since the Karmada API server has to be reachable by all other clusters, you will have to

  • expose it from the node; and
  • make sure that the connection is trusted.

So let’s retrieve the IP address of the node hosting the control plane with:

bash
kubectl get nodes -o jsonpath='{.items[0].status.addresses[?(@.type==\"ExternalIP\")].address}' \
 --kubeconfig=kubeconfig-cluster-manager

Now you can install the Karmada control plane with:

bash
$ helm install karmada karmada-charts/karmada \
 --kubeconfig=kubeconfig-cluster-manager \
 --create-namespace --namespace karmada-system \
 --version=1.2.0 \
 --set apiServer.hostNetwork=false \
 --set apiServer.serviceType=NodePort \
 --set apiServer.nodePort=32443 \
 --set certs.auto.hosts[0]="kubernetes.default.svc" \
 --set certs.auto.hosts[1]="*.etcd.karmada-system.svc.cluster.local" \
 --set certs.auto.hosts[2]="*.karmada-system.svc.cluster.local" \
 --set certs.auto.hosts[3]="*.karmada-system.svc" \
 --set certs.auto.hosts[4]="localhost" \
 --set certs.auto.hosts[5]="127.0.0.1" \
 --set certs.auto.hosts[6]="<insert the IP address of the node>"

Once the installation is complete, you can retrieve the kubeconfig to connect to the Karmada API with:

bash
kubectl get secret karmada-kubeconfig \
 --kubeconfig=kubeconfig-cluster-manager \
 -n karmada-system \
 -o jsonpath={.data.kubeconfig} | base64 -d > karmada-config

But wait, why another kubeconfig file?

The Karmada API is designed to replace the standard Kubernetes API but still retains all the functionality you are used to. In other words, you can create deployments that span multiple clusters with kubectl.

Before testing the Karmada API and kubectl, you should patch the kubeconfig file. By default, the generated kubeconfig can only be used from within the cluster network.

However, you can replace the following line to make it work:

yaml
apiVersion: v1
kind: Config
clusters:
 - cluster:
     certificate-authority-data: LS0tLS1CRUdJTi…
     insecure-skip-tls-verify: false
     server: https://karmada-apiserver.karmada-system.svc.cluster.local:5443 # <- this works only in the cluster
   name: karmada-apiserver
# truncated

Replace it with the node’s IP address that you retrieved earlier:

yaml
apiVersion: v1
kind: Config
clusters:
 - cluster:
     certificate-authority-data: LS0tLS1CRUdJTi…
     insecure-skip-tls-verify: false
     server: https://<node's IP address>:32443 # <- this works from the public internet
   name: karmada-apiserver
# truncated

Great, it’s time to test Karmada.

Installing the Karmada Agent

Issue the following command to retrieve all deployments and all clusters:

bash
$ kubectl get clusters,deployments --kubeconfig=karmada-config
No resources found

Unsurprisingly, there are no deployments and no additional clusters. Let’s add a few more clusters and connect them to the Karmada control plane.

Repeat the following commands three times:

bash
linode-cli lke cluster-create \
 --label <insert-cluster-name> \
 --region <insert-region> \
 --k8s_version 1.23

linode-cli lke kubeconfig-view "insert cluster id here" --text | tail +2 | base64 -d > kubeconfig-<insert-cluster-name>

The values should be the following:

  • Cluster name eu, region eu-west and kubeconfig file kubeconfig-eu
  • Cluster name ap, region ap-south and kubeconfig file kubeconfig-ap
  • Cluster name us, region us-west and kubeconfig file kubeconfig-us

You can verify that the clusters are created successfully with:

bash
$ kubectl get pods -A --kubeconfig=kubeconfig-eu
$ kubectl get pods -A --kubeconfig=kubeconfig-ap
$ kubectl get pods -A --kubeconfig=kubeconfig-us

Now it’s time to make them join the Karmada cluster.

Karmada uses an agent on every other cluster to coordinate deployment with the control plane.

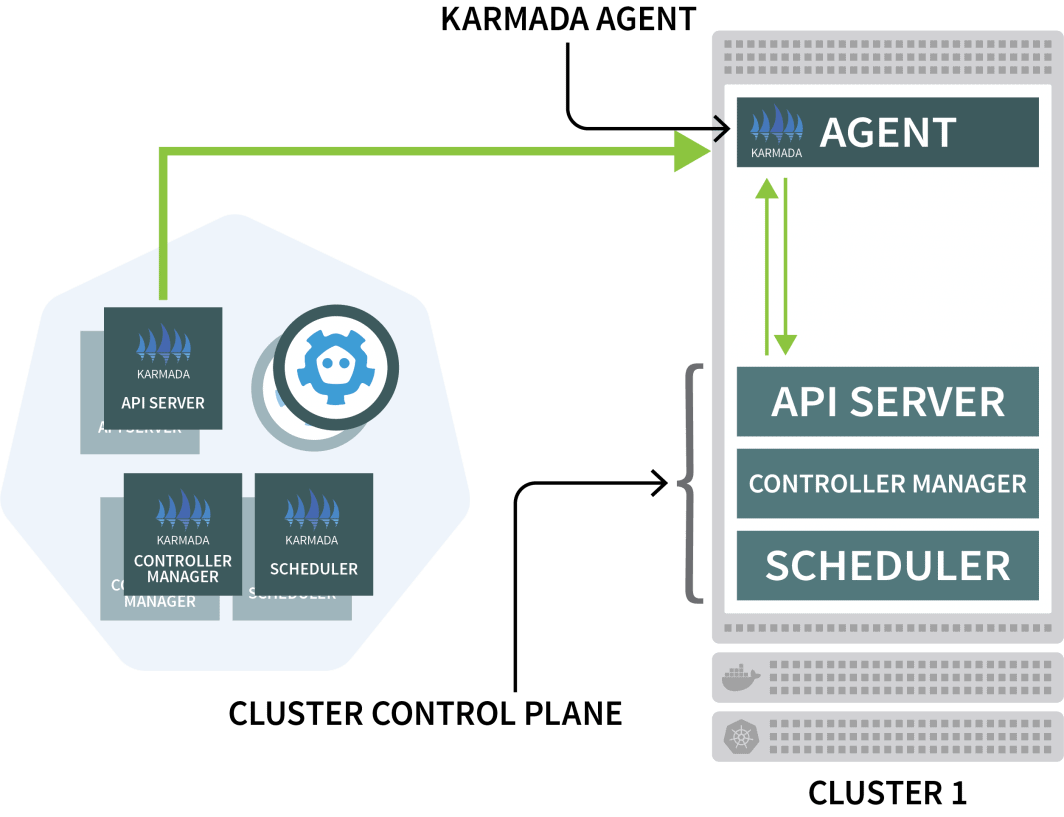

Diagram of Karmada agent connecting to the cluster control plane (API server, controller manager, and scheduler) in Kubernetes cluster 1.
The Karmada agent.

You will use Helm to install the Karmada agent and link it to the cluster manager:

bash
$ helm install karmada karmada-charts/karmada \
 --kubeconfig=kubeconfig-<insert-cluster-name> \
 --create-namespace --namespace karmada-system \
 --version=1.2.0 \
 --set installMode=agent \
 --set agent.clusterName=<insert-cluster-name> \
 --set agent.kubeconfig.caCrt=<karmada kubeconfig certificate authority> \
 --set agent.kubeconfig.crt=<karmada kubeconfig client certificate data> \
 --set agent.kubeconfig.key=<karmada kubeconfig client key data> \
 --set agent.kubeconfig.server=https://<insert node's IP address>:32443 \

You will have to repeat the above command three times and insert the following variables:

  • The cluster name. This is either eu, ap, or us
  • The cluster manager’s certificate authority. You can find this value in the karmada-config file under clusters[0].cluster['certificate-authority-data'].
    You can decode the value from base64.
  • The user’s client certificate data. You can find this value in the karmada-config file under users[0].user['client-certificate-data'].
    You can decode the value from base64.
  • The user’s client certificate data. You can find this value in the karmada-config file under users[0].user['client-key-data'].
    You can decode the value from base64.
  • The IP address of the node hosting the Karmada control plane.

To verify that the installation is complete, you can issue the following command:

bash
$ kubectl get clusters --kubeconfig=karmada-config
NAME   VERSION   MODE   READY
eu     v1.23.8   Pull   True
ap     v1.23.8   Pull   True
us     v1.23.8   Pull   True

Excellent!

Orchestrating Multicluster Deployment with Karmada Policies

With the current configuration, you submit a workload to Karmada, which will then distribute it across the other clusters.

Let’s test this by creating a deployment:

yaml
apiVersion: apps/v1
kind: Deployment
metadata:
 name: hello
spec:
 replicas: 3
 selector:
   matchLabels:
     app: hello
 template:
   metadata:
     labels:
       app: hello
   spec:
     containers:
       - image: stefanprodan/podinfo
         name: hello
---
apiVersion: v1
kind: Service
metadata:
 name: hello
spec:
 ports:
   - port: 5000
     targetPort: 9898
 selector:
   app: hello

You can submit the deployment to the Karmada API server with:

bash
$ kubectl apply -f deployment.yaml --kubeconfig=karmada-config

This deployment has three replicas– will those distribute equally across the three clusters?

Let’s check:

bash
$ kubectl get deployments --kubeconfig=karmada-config
NAME    READY   UP-TO-DATE   AVAILABLE
hello   0/3     0            0

Why is Karmada not creating the Pods?

Let’s describe the deployment:

bash
$ kubectl describe deployment hello --kubeconfig=karmada-config
Name:                   hello
Namespace:              default
Selector:               app=hello
Replicas:               3 desired | 0 updated | 0 total | 0 available | 0 unavailable
StrategyType:           RollingUpdate
MinReadySeconds:        0
RollingUpdateStrategy:  25% max unavailable, 25% max surge
Events:
 Type     Reason             From               Message
 ----     ------             ----               -------
 Warning  ApplyPolicyFailed  resource-detector  No policy match for resource

Karmada doesn’t know what to do with the deployments because you haven’t specified a policy.

The Karmada scheduler uses policies to allocate workloads to clusters.

Let’s define a simple policy that assigns a replica to each cluster:

yaml
apiVersion: policy.karmada.io/v1alpha1
kind: PropagationPolicy
metadata:
 name: hello-propagation
spec:
 resourceSelectors:
   - apiVersion: apps/v1
     kind: Deployment
     name: hello
   - apiVersion: v1
     kind: Service
     name: hello
 placement:
   clusterAffinity:
     clusterNames:
       - eu
       - ap
       - us
   replicaScheduling:
     replicaDivisionPreference: Weighted
     replicaSchedulingType: Divided
     weightPreference:
       staticWeightList:
         - targetCluster:
             clusterNames:
               - us
           weight: 1
         - targetCluster:
             clusterNames:
               - ap
           weight: 1
         - targetCluster:
             clusterNames:
               - eu
           weight: 1

You can submit the policy to the cluster with:

bash
$ kubectl apply -f policy.yaml --kubeconfig=karmada-config

Let’s inspect the deployments and pods:

bash
$ kubectl get deployments --kubeconfig=karmada-config
NAME    READY   UP-TO-DATE   AVAILABLE
hello   3/3     3            3

$ kubectl get pods --kubeconfig=kubeconfig-eu
NAME                    READY   STATUS    RESTARTS
hello-5d857996f-hjfqq   1/1     Running   0

$ kubectl get pods --kubeconfig=kubeconfig-ap
NAME                    READY   STATUS    RESTARTS
hello-5d857996f-xr6hr   1/1     Running   0

$ kubectl get pods --kubeconfig=kubeconfig-us
NAME                    READY   STATUS    RESTARTS
hello-5d857996f-nbz48   1/1     Running   0
Map graphic showing Kubernetes clusters located in each region (Fremont, CA, London, and Singapore)
Karmada assigned a pod to each cluster.

Karmada assigned a pod to each cluster because your policy defined an equal weight for each cluster.

Let’s scale the deployment to 10 replicas with:

bash
$ kubectl scale deployment/hello --replicas=10 --kubeconfig=karmada-config

If you inspect the pods, you might find the following:

bash
$ kubectl get deployments --kubeconfig=karmada-config
NAME    READY   UP-TO-DATE   AVAILABLE
hello   10/10   10           10
$ kubectl get pods --kubeconfig=kubeconfig-eu
NAME                    READY   STATUS    RESTARTS
hello-5d857996f-dzfzm   1/1     Running   0
hello-5d857996f-hjfqq   1/1     Running   0
hello-5d857996f-kw2rt   1/1     Running   0
hello-5d857996f-nz7qz   1/1     Running   0

$ kubectl get pods --kubeconfig=kubeconfig-ap
NAME                    READY   STATUS    RESTARTS
hello-5d857996f-pd9t6   1/1     Running   0
hello-5d857996f-r7bmp   1/1     Running   0
hello-5d857996f-xr6hr   1/1     Running   0

$ kubectl get pods --kubeconfig=kubeconfig-us
NAME                    READY   STATUS    RESTARTS
hello-5d857996f-nbz48   1/1     Running   0
hello-5d857996f-nzgpn   1/1     Running   0
hello-5d857996f-rsp7k   1/1     Running   0

Let’s amend the policy so that the EU and US clusters hold 40% of the pods and only 20% is left to the AP cluster.

yaml
apiVersion: policy.karmada.io/v1alpha1
kind: PropagationPolicy
metadata:
 name: hello-propagation
spec:
 resourceSelectors:
   - apiVersion: apps/v1
     kind: Deployment
     name: hello
   - apiVersion: v1
     kind: Service
     name: hello
 placement:
   clusterAffinity:
     clusterNames:
       - eu
       - ap
       - us
   replicaScheduling:
     replicaDivisionPreference: Weighted
     replicaSchedulingType: Divided
     weightPreference:
       staticWeightList:
         - targetCluster:
             clusterNames:
               - us
           weight: 2
         - targetCluster:
             clusterNames:
               - ap
           weight: 1
         - targetCluster:
             clusterNames:
               - eu
           weight: 2

You can submit the policy with:

bash
$ kubectl apply -f policy.yaml --kubeconfig=karmada-config

You can observe the distribution of your pod changing accordingly:

bash
$ kubectl get pods --kubeconfig=kubeconfig-eu
NAME                    READY   STATUS    RESTARTS   AGE
hello-5d857996f-hjfqq   1/1     Running   0          6m5s
hello-5d857996f-kw2rt   1/1     Running   0          2m27s

$ kubectl get pods --kubeconfig=kubeconfig-ap
hello-5d857996f-k9hsm   1/1     Running   0          51s
hello-5d857996f-pd9t6   1/1     Running   0          2m41s
hello-5d857996f-r7bmp   1/1     Running   0          2m41s
hello-5d857996f-xr6hr   1/1     Running   0          6m19s

$ kubectl get pods --kubeconfig=kubeconfig-us
hello-5d857996f-nbz48   1/1     Running   0          6m29s
hello-5d857996f-nzgpn   1/1     Running   0          2m51s
hello-5d857996f-rgj9t   1/1     Running   0          61s
hello-5d857996f-rsp7k   1/1     Running   0          2m51s
Map diagram showing pods distributed across regions according to policy set by Karmada controller - 40% in Fremont, CA, 40% in London, and 20% in Singapore .
Pods are distributed according to the policy.

Great!

Karmada supports several policies to distribute your workloads. You can check out the documentation for more advanced use cases.

The pods are running in the three clusters, but how can you access them?

Let’s inspect the service in Karmada:

bash
$ kubectl describe service hello --kubeconfig=karmada-config
Name:              hello
Namespace:         default
Labels:            propagationpolicy.karmada.io/name=hello-propagation
                  propagationpolicy.karmada.io/namespace=default
Selector:          app=hello
Type:              ClusterIP
IP Family Policy:  SingleStack
IP Families:       IPv4
IP:                10.105.24.193
IPs:               10.105.24.193
Port:              <unset>  5000/TCP
TargetPort:        9898/TCP
Events:
 Type     Reason                  Message
 ----     ------                  -------
 Normal   SyncSucceed             Successfully applied resource(default/hello) to cluster ap
 Normal   SyncSucceed             Successfully applied resource(default/hello) to cluster us
 Normal   SyncSucceed             Successfully applied resource(default/hello) to cluster eu
 Normal   AggregateStatusSucceed  Update resourceBinding(default/hello-service) with AggregatedStatus successfully.
 Normal   ScheduleBindingSucceed  Binding has been scheduled
 Normal   SyncWorkSucceed         Sync work of resourceBinding(default/hello-service) successful.

The service is deployed in all three clusters, but they aren’t connected.

Even if Karmada can manage several clusters, it does not provide any networking mechanism to make sure that the three clusters are linked. In other words, Karmada is an excellent tool to orchestrate deployments across clusters, but you need something else to make sure those clusters can communicate with each other.

Connecting Multi Clusters with Istio

Istio is usually used to control the network traffic between applications in the same cluster. It works by intercepting all outgoing and incoming requests and proxying them through Envoy.

Diagram showing how Envoy proxies intercept traffic and distribute to other pods.
Envoy proxies intercept all traffic.

The Istio control plane is in charge of updating and collecting metrics from those proxies and can also issue instructions to divert the traffic.

Diagram showing how the Istio control plane can reconfigure the proxies on the fly, and you can have a rule to deny traffic between pods.
With Istio, you can define policy to manage the traffic in your cluster.

So you could use Istio to intercept all the traffic to a particular service and direct it to one of the three clusters. That’s the idea with Istio multicluster setup.

That’s enough theory– let’s get our hands dirty. The first step is to install Istio in the three clusters.

While there are several ways to install Istio, I usually prefer Helm:

bash
$ helm repo add istio https://istio-release.storage.googleapis.com/charts
$ helm repo list
NAME            URL
istio                 https://istio-release.storage.googleapis.com/charts

You can install Istio in the three clusters with:

bash
$ helm install istio-base istio/base \
 --kubeconfig=kubeconfig-<insert-cluster-name> \
 --create-namespace --namespace istio-system \
 --version=1.14.1

You should replace the cluster-name with ap, eu and us and execute the command for each.

The base chart installs mostly common resources, such as Roles and RoleBindings.

The actual installation is packaged in the istiod chart. But before you proceed with that, you have to configure the Istio Certificate Authority (CA) to make sure that the three clusters can connect and trust each other.

In a new directory, clone the Istio repository with:

bash
$ git clone https://github.com/istio/istio

Create a certs folder and change to that directory:

bash
$ mkdir certs
$ cd certs

Create the root certificate with:

bash
$ make -f ../istio/tools/certs/Makefile.selfsigned.mk root-ca

The command generated the following files:

  • root-cert.pem: the generated root certificate
  • root-key.pem: the generated root key
  • root-ca.conf: the configuration for OpenSSL to generate the root certificate
  • root-cert.csr: the generated CSR for the root certificate

For each cluster, generate an intermediate certificate and key for the Istio Certificate Authority:

bash
$ make -f ../istio/tools/certs/Makefile.selfsigned.mk cluster1-cacerts
$ make -f ../istio/tools/certs/Makefile.selfsigned.mk cluster2-cacerts
$ make -f ../istio/tools/certs/Makefile.selfsigned.mk cluster3-cacerts

The commands will generate the following files in a directory named cluster1, cluster2, and cluster3:

bash
$ kubectl create secret generic cacerts -n istio-system \
 --kubeconfig=kubeconfig-<cluster-name>
 --from-file=<cluster-folder>/ca-cert.pem \
 --from-file=<cluster-folder>/ca-key.pem \
 --from-file=<cluster-folder>/root-cert.pem \
 --from-file=<cluster-folder>/cert-chain.pem

You should execute the commands with the following variables:

| cluster name | folder name |
| :----------: | :---------: |
|      ap      |  cluster1   |
|      us      |  cluster2   |
|      eu      |  cluster3   |

With those done, you are finally ready to install istiod:

bash
$ helm install istiod istio/istiod \
 --kubeconfig=kubeconfig-<insert-cluster-name> \
 --namespace istio-system \
 --version=1.14.1 \
 --set global.meshID=mesh1 \
 --set global.multiCluster.clusterName=<insert-cluster-name> \
 --set global.network=<insert-network-name>

You should repeat the command three times with the following variables:

| cluster name | network name |
| :----------: | :----------: |
|      ap      |   network1   |
|      us      |   network2   |
|      eu      |   network3   |

You should also tag the Istio namespace with a topology annotation:

bash
$ kubectl label namespace istio-system topology.istio.io/network=network1 --kubeconfig=kubeconfig-ap
$ kubectl label namespace istio-system topology.istio.io/network=network2 --kubeconfig=kubeconfig-us
$ kubectl label namespace istio-system topology.istio.io/network=network3 --kubeconfig=kubeconfig-eu

Is that all?

Almost.

Tunneling Traffic with an East-West Gateway

You still need:

  • a gateway to funnel the traffic from one cluster to the other; and
  • a mechanism to discover IP addresses in other clusters.

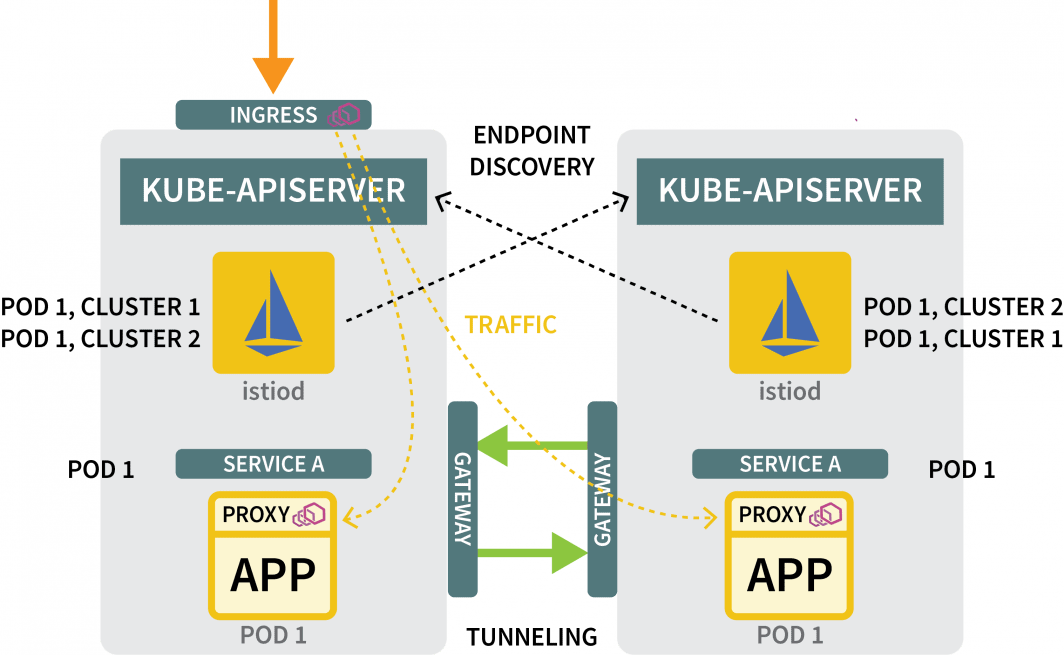

Diagram showing the Istio multicluster discovering endpoints and installing the east-west gateway between pods.
Istio multicluster: discovering endpoints and installing the east-west gateway.

For the gateway, you can use Helm to install it:

bash
$ helm install eastwest-gateway istio/gateway \
 --kubeconfig=kubeconfig-<insert-cluster-name> \
 --namespace istio-system \
 --version=1.14.1 \
 --set labels.istio=eastwestgateway \
 --set labels.app=istio-eastwestgateway \
 --set labels.topology.istio.io/network=istio-eastwestgateway \
 --set labels.topology.istio.io/network=istio-eastwestgateway \
 --set networkGateway=<insert-network-name> \
 --set service.ports[0].name=status-port \
 --set service.ports[0].port=15021 \
 --set service.ports[0].targetPort=15021 \
 --set service.ports[1].name=tls \
 --set service.ports[1].port=15443 \
 --set service.ports[1].targetPort=15443 \
 --set service.ports[2].name=tls-istiod \
 --set service.ports[2].port=15012 \
 --set service.ports[2].targetPort=15012 \
 --set service.ports[3].name=tls-webhook \
 --set service.ports[3].port=15017 \
 --set service.ports[3].targetPort=15017 \

You should repeat the command three times with the following variables:

| cluster name | network name |
| :----------: | :----------: |
|      ap      |   network1   |
|      us      |   network2   |
|      eu      |   network3   |

Then for each cluster, expose a Gateway with the following resource:

yaml
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
 name: cross-network-gateway
spec:
 selector:
   istio: eastwestgateway
 servers:
   - port:
       number: 15443
       name: tls
       protocol: TLS
     tls:
       mode: AUTO_PASSTHROUGH
     hosts:
       - "*.local"

You can submit the file to the clusters with:

bash
$ kubectl apply -f expose.yaml --kubeconfig=kubeconfig-eu
$ kubectl apply -f expose.yaml --kubeconfig=kubeconfig-ap
$ kubectl apply -f expose.yaml --kubeconfig=kubeconfig-us

For the discovery mechanisms, you need to share the credentials of each cluster. This is necessary because the clusters are not aware of each other.

To discover other IP addresses, they need to access other clusters and register those as possible destinations for the traffic. To do so, you must create a Kubernetes secret with the kubeconfig file for the other clusters.

Istio will use those to connect to the other clusters, discover the endpoints and instruct the Envoy proxies to forward the traffic.

You will need three secrets:

yaml
apiVersion: v1
kind: Secret
metadata:
 labels:
   istio/multiCluster: true
 annotations:
   networking.istio.io/cluster: <insert cluster name>
 name: "istio-remote-secret-<insert cluster name>"
type: Opaque
data:
 <insert cluster name>: <insert cluster kubeconfig as base64>

You should create the three secrets with the following variables:

| cluster name | secret filename |  kubeconfig   |
| :----------: | :-------------: | :-----------: |
|      ap      |  secret1.yaml   | kubeconfig-ap |
|      us      |  secret2.yaml   | kubeconfig-us |
|      eu      |  secret3.yaml   | kubeconfig-eu |

Now you should submit the secrets to the cluster paying attention to not submitting the AP secret to the AP cluster.

The commands should be the following:

bash
$ kubectl apply -f secret2.yaml -n istio-system --kubeconfig=kubeconfig-ap
$ kubectl apply -f secret3.yaml -n istio-system --kubeconfig=kubeconfig-ap

$ kubectl apply -f secret1.yaml -n istio-system --kubeconfig=kubeconfig-us
$ kubectl apply -f secret3.yaml -n istio-system --kubeconfig=kubeconfig-us

$ kubectl apply -f secret1.yaml -n istio-system --kubeconfig=kubeconfig-eu
$ kubectl apply -f secret2.yaml -n istio-system --kubeconfig=kubeconfig-eu

And that’s all!

You’re ready to test the setup.

Testing the Multicluster Networking

Let’s create a deployment for a sleep pod.

You will use this pod to make a request to the Hello deployment that you created earlier:

yaml
apiVersion: apps/v1
kind: Deployment
metadata:
 name: sleep
spec:
 selector:
   matchLabels:
     app: sleep
 template:
   metadata:
     labels:
       app: sleep
   spec:
     terminationGracePeriodSeconds: 0
     containers:
       - name: sleep
         image: curlimages/curl
         command: ["/bin/sleep", "3650d"]
         imagePullPolicy: IfNotPresent
         volumeMounts:
           - mountPath: /etc/sleep/tls
             name: secret-volume
     volumes:
       - name: secret-volume
         secret:
           secretName: sleep-secret
           optional: true

You can create the deployment with:

bash
$ kubectl apply -f sleep.yaml --kubeconfig=karmada-config

Since there is no policy for this deployment, Karmada will not process it and leave it pending. You can amend the policy to include the deployment with:

yaml
apiVersion: policy.karmada.io/v1alpha1
kind: PropagationPolicy
metadata:
 name: hello-propagation
spec:
 resourceSelectors:
   - apiVersion: apps/v1
     kind: Deployment
     name: hello
   - apiVersion: v1
     kind: Service
     name: hello
   - apiVersion: apps/v1
     kind: Deployment
     name: sleep
 placement:
   clusterAffinity:
     clusterNames:
       - eu
       - ap
       - us
   replicaScheduling:
     replicaDivisionPreference: Weighted
     replicaSchedulingType: Divided
     weightPreference:
       staticWeightList:
         - targetCluster:
             clusterNames:
               - us
           weight: 2
         - targetCluster:
             clusterNames:
               - ap
           weight: 2
         - targetCluster:
             clusterNames:
               - eu
           weight: 1

You can apply the policy with:

bash
$ kubectl apply -f policy.yaml --kubeconfig=karmada-config

You can figure out where the pod was deployed with:

bash
$ kubectl get pods --kubeconfig=kubeconfig-eu
$ kubectl get pods --kubeconfig=kubeconfig-ap
$ kubectl get pods --kubeconfig=kubeconfig-us

Now, assuming the pod landed on the US cluster, execute the following command:

Now, assuming the pod landed on the US cluster, execute the following command:
bash
for i in {1..10}
do
 kubectl exec --kubeconfig=kubeconfig-us -c sleep \
   "$(kubectl get pod --kubeconfig=kubeconfig-us -l \
   app=sleep -o jsonpath='{.items[0].metadata.name}')" \
   -- curl -sS hello:5000 | grep REGION
done

You might notice that the response comes from different pods from different regions!

Job done!

Where to go from here?

This setup is quite basic and lacks several more features that you probably want to incorporate:

To recap what we covered in this post:

  • using Karmada to control several clusters;
  • defining policy to schedule workloads across several clusters;
  • using Istio to bridge the networking of multiple clusters; and
  • how Istio intercepts the traffic and forwards it to other clusters.

You can see a full walkthrough of scaling Kubernetes across regions, in addition to other scaling methodologies, by registering for our webinar series and watching on-demand.

Comments

Leave a Reply

Your email address will not be published. Required fields are marked *
